Magnitude |
:3 |
| Date & Time (UTC) | 2018-05-21 12:58:56.5 |
| Date & Time (Local) | 1397/2/31 17:28:56.5 |

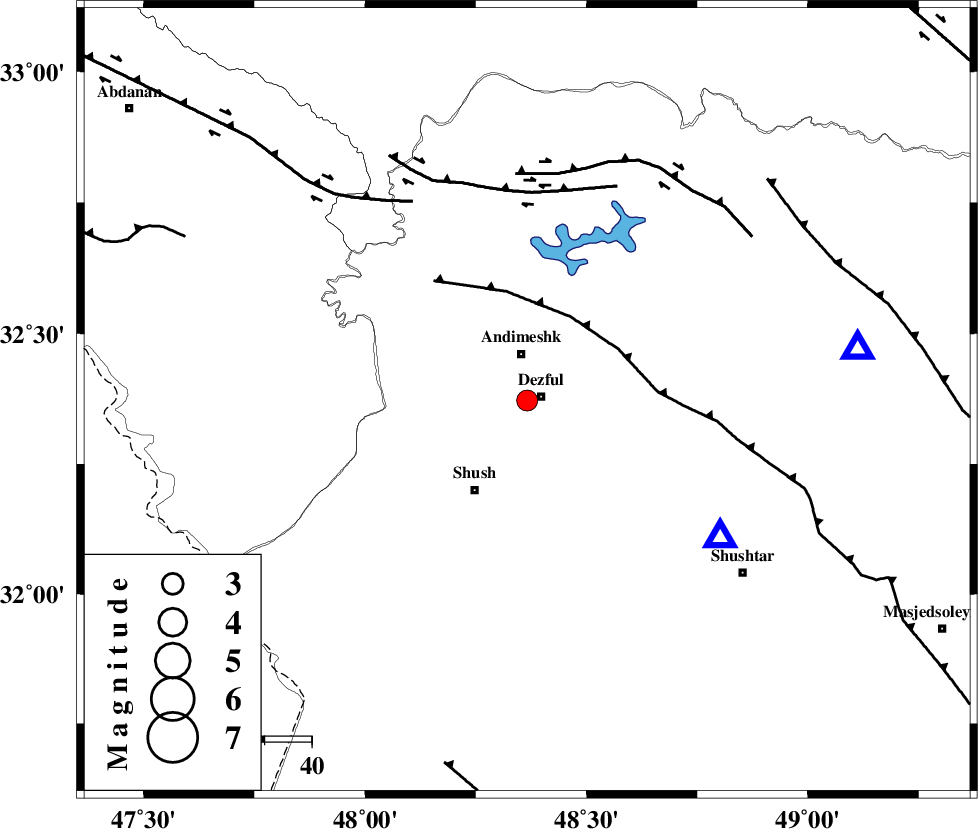

| Location | Lat:32.371 Lon: 48.366 |
| Region | Khoozestan Province, 3 km of Dezful |
Nearest Cities |
|
| 3 km of Dezful, Khoozestan Province | |
| 10 km of Andimeshk, Khoozestan Province | |
| 10 km North of Shamsabad, Khoozestan Province | |
| 22 km North East of Shush, Khoozestan Province | |
| 23 km North of Amaleh teimur, Khoozestan Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| DEZFUL_EMBAYMENT (Length: 228 km) , Distance to epicenter: 20 km | |
| BALARUD_F_Z3 (Length: 53 km) , Distance to epicenter: 44 km | |
| BALARUD_F_Z2 (Length: 58 km) , Distance to epicenter: 48 km | |
| Number of Phases | 9 |
| RMS | 0.7 |
| Number of Stations | 9 |
| Error in Latitude | >9.2 km |
| Error in Longitude | 4.8 km |
| Error in Depth | 0 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 132152 | IIEES | KHMZ | N | 100 | 0.46 | 2018-05-21 13:00:01 | 2018-05-22 10:06:00 | n |
| 132153 | IIEES | KHMZ | E | 105.9 | 0.46 | 2018-05-21 13:00:02 | 2018-05-22 10:06:00 | n |
| 132154 | IIEES | ILBA | N | 67.5 | 0.65 | 2018-05-21 13:00:19 | 2018-05-22 10:06:00 | n |
| 132155 | IIEES | ILBA | E | 72.4 | 0.75 | 2018-05-21 13:00:23 | 2018-05-22 10:06:00 | n |
| 132156 | IIEES | ASAO | E | 36.3 | 0.56 | 2018-05-21 13:00:27 | 2018-05-22 10:06:00 | n |
| 132157 | IIEES | ASAO | N | 30.5 | 0.56 | 2018-05-21 13:00:30 | 2018-05-22 10:06:00 | n |
| 132158 | IIEES | AHRM | N | 46 | 0.57 | 2018-05-21 13:00:50 | 2018-05-22 10:06:00 | n |
| 132159 | IIEES | AHRM | E | 39.1 | 0.57 | 2018-05-21 13:00:52 | 2018-05-22 10:06:00 | n |
| 132160 | IIEES | SRSL | N | 8 | 0.68 | 2018-05-21 13:01:04 | 2018-05-22 10:06:00 | n |
| 132161 | IIEES | SRSL | E | 8.7 | 0.63 | 2018-05-21 13:01:04 | 2018-05-22 10:06:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | KHMZ | Z | Pn | E | 2018-05-21 12:59:30 | 0.17 | y | 213 | 44 | |||
| IIEES | ILBA | Z | Pn | E | 2018-05-21 12:59:34 | -0.3 | y | 245 | 305 | |||
| IIEES | ASAO | Z | Pn | E | 2018-05-21 12:59:40 | 0.73 | y | 287 | 32 | |||
| IIEES | SNGE | Z | Pn | E | 2018-05-21 12:59:42 | -0.61 | y | 316 | 343 | |||
| IIEES | GHVR | Z | Pn | E | 2018-05-21 12:59:49 | 0.66 | y | 356 | 48 | |||
| IIEES | NASN | Z | Pn | E | 2018-05-21 12:59:55 | -1.48 | y | 420 | 82 | |||
| IIEES | AHRM | Z | Pn | E | 2018-05-21 13:00:04 | 0.7 | y | 480 | 143 | |||
| IIEES | SRSL | Z | Pn | E | 2018-05-21 13:00:07 | 0.45 | y | 504 | 328 | |||
| IIEES | SHRO | Z | Pn | E | 2018-05-21 13:00:44 | -0.64 | y | 812 | 58 | |||
