Magnitude |
:3.9 |
| Date & Time (UTC) | 2018-05-22 13:51:04.5 |
| Date & Time (Local) | 1397/3/1 18:21:04.5 |

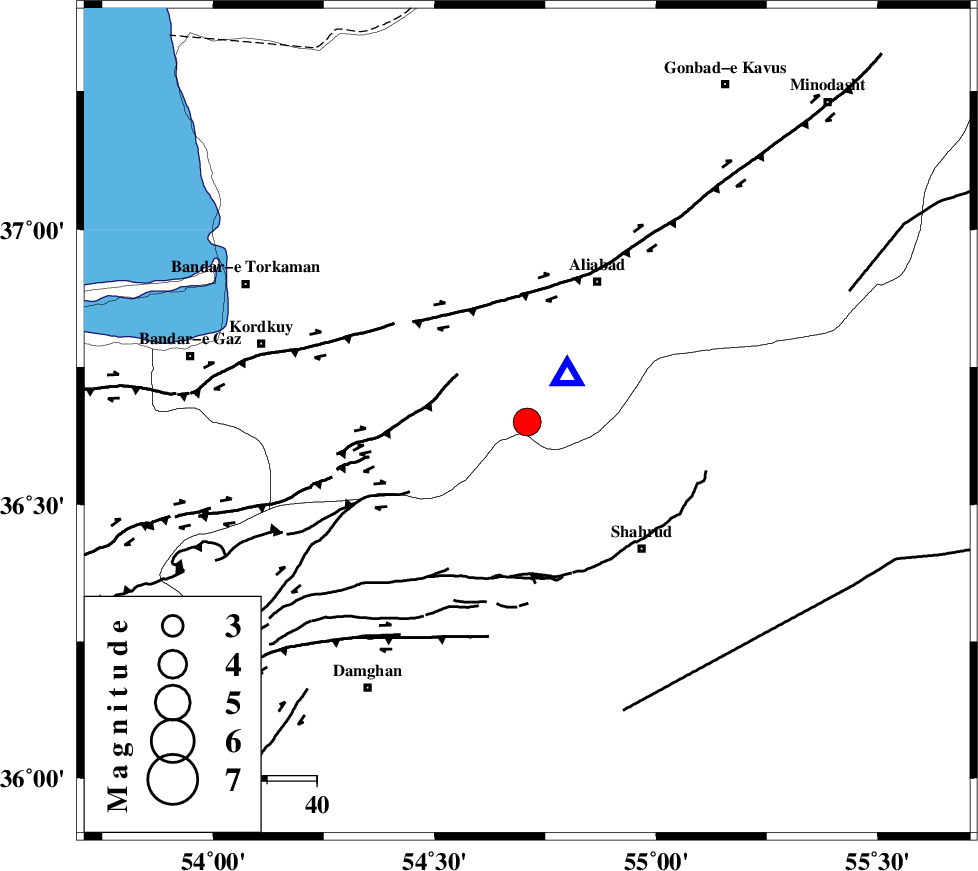

| Location | Lat:36.65 Lon: 54.709 |
| Region | Golestan Province, 32 km South-West of Ali Abad |
Nearest Cities |
|
| 20 km North of Majen, Semnan Province | |
| 24 km East of Naharkhoran, Golestan Province | |
| 25 km North East of Cheharbagh, Golestan Province | |
| 26 km South East of Jalin olia, Golestan Province | |
| 32 km South West of Ali Abad, Golestan Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| SHAVAR_F (Length: 87 km) , Distance to epicenter: 10 km | |
| ASTANEH_F (Length: 72 km) , Distance to epicenter: 21 km | |
| N_ALBORZ_F (Length: 360 km) , Distance to epicenter: 28 km | |
| Number of Phases | 22 |
| RMS | 0.5 |
| Number of Stations | 20 |
| Error in Latitude | >3.2 km |
| Error in Longitude | 4.1 km |
| Error in Depth | 9.6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 132202 | IIEES | MRVT | N | 1353.5 | 0.35 | 2018-05-22 13:51:55 | 2018-05-23 04:12:00 | n |
| 132203 | IIEES | MRVT | E | 1488.3 | 0.23 | 2018-05-22 13:51:57 | 2018-05-23 04:12:00 | n |
| 132204 | IIEES | DAMV | E | 582.4 | 0.53 | 2018-05-22 13:52:26 | 2018-05-23 04:12:00 | n |
| 132205 | IIEES | DAMV | N | 506.7 | 0.46 | 2018-05-22 13:52:28 | 2018-05-23 04:12:00 | n |
| 132206 | IIEES | THKV | E | 268 | 0.64 | 2018-05-22 13:52:50 | 2018-05-23 04:12:00 | n |
| 132207 | IIEES | THKV | N | 222.2 | 0.48 | 2018-05-22 13:52:50 | 2018-05-23 04:12:00 | n |
| 132208 | IIEES | GHVR | E | 281.7 | 0.39 | 2018-05-22 13:53:03 | 2018-05-23 04:12:00 | n |
| 132209 | IIEES | GHVR | N | 243.4 | 0.31 | 2018-05-22 13:53:05 | 2018-05-23 04:12:00 | n |
| 132210 | IIEES | TABS | N | 105.8 | 0.59 | 2018-05-22 13:53:15 | 2018-05-23 04:12:00 | n |
| 132211 | IIEES | YZKH | N | 47.6 | 0.6 | 2018-05-22 13:53:33 | 2018-05-23 04:12:00 | n |
| 132212 | IIEES | ASAO | E | 80 | 0.62 | 2018-05-22 13:53:35 | 2018-05-23 04:12:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | SHRO | Z | Pg | E | 2018-05-22 13:51:27 | 0.18 | y | 137 | 121 | |||
| IIEES | SHRO | N | Sg | E | 2018-05-22 13:51:44 | -0.1 | y | 137 | 121 | |||
| IIEES | MRVT | Z | Pg | E | 2018-05-22 13:51:31 | -0.39 | y | 166 | 47 | |||
| IIEES | MRVT | N | Sg | E | 2018-05-22 13:51:52 | 0.3 | y | 166 | 47 | |||
| IIEES | BJRD | Z | Pn | E | 2018-05-22 13:51:45 | 0.16 | y | 267 | 63 | |||
| IIEES | DAMV | Z | Pn | E | 2018-05-22 13:51:47 | 1.62 | n | 4 | 271 | 246 | ||
| IIEES | CHTH | Z | Pn | E | 2018-05-22 13:51:53 | 0.27 | y | 332 | 257 | |||
| IIEES | THKV | Z | Pn | E | 2018-05-22 13:51:56 | 0.4 | y | 354 | 258 | |||
| IIEES | GHVR | Z | Pn | E | 2018-05-22 13:52:01 | 0.28 | y | 396 | 234 | |||
| IIEES | TABS | Z | Pn | E | 2018-05-22 13:52:02 | 0.32 | y | 399 | 146 | |||
| IIEES | YZKH | Z | Pn | E | 2018-05-22 13:52:10 | -0.66 | y | 473 | 181 | |||
| IIEES | ASAO | Z | Pn | E | 2018-05-22 13:52:12 | 0.31 | y | 484 | 243 | |||
| IIEES | ZNJK | Z | Pn | E | 2018-05-22 13:52:19 | 0.49 | y | 539 | 272 | |||
| IIEES | KHMZ | Z | Pn | E | 2018-05-22 13:52:19 | -0.22 | y | 539 | 235 | |||
| IIEES | SHRT | Z | Pn | E | 2018-05-22 13:52:27 | -0.15 | y | 608 | 122 | |||
| IIEES | GRMI | Z | Pn | E | 2018-05-22 13:52:30 | -1.6 | y | 647 | 294 | |||
| IIEES | BSRN | Z | Pn | E | 2018-05-22 13:52:34 | -0.12 | y | 660 | 141 | |||
| IIEES | SNGE | Z | Pn | E | 2018-05-22 13:52:38 | 0.51 | y | 687 | 258 | |||
| IIEES | KRBR | Z | Pn | E | 2018-05-22 13:52:47 | -0.12 | y | 764 | 165 | |||
| IIEES | SRSL | Z | Pn | E | 2018-05-22 13:52:54 | -0.82 | y | 833 | 269 | |||
| IIEES | ILBA | Z | Pn | E | 2018-05-22 13:52:56 | -0.13 | y | 844 | 249 | |||
| IIEES | GHIR | Z | Pn | E | 2018-05-22 13:53:08 | -0.26 | y | 941 | 190 | |||
