Magnitude |
:3.2 |
| Date & Time (UTC) | 2018-05-24 22:09:46.3 |
| Date & Time (Local) | 1397/3/4 02:39:46.3 |

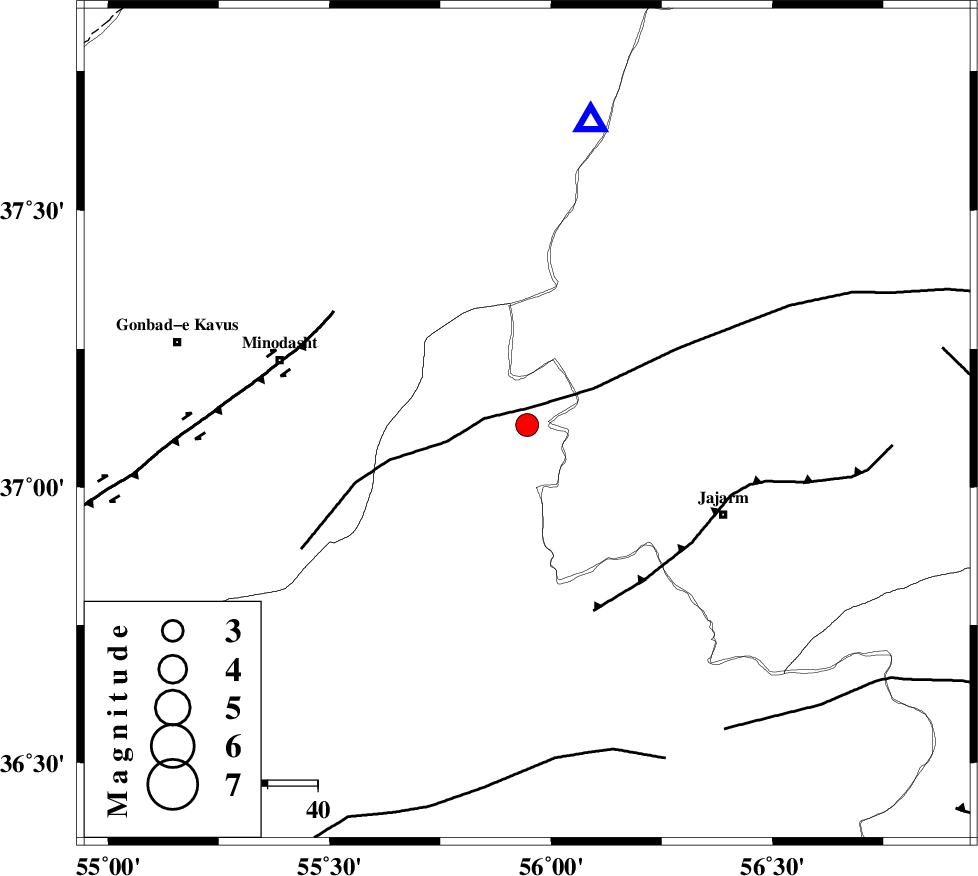

| Location | Lat:37.113 Lon: 55.946 |
| Region | Semnan Province, 43 km North-West of Jajarm |
Nearest Cities |
|
| 17 km North East of Nardin, Semnan Province | |
| 22 km North East of Rezvan, Semnan Province | |
| 31 km North East of Qaleh qafeh, Semnan Province | |
| 33 km South East of Farsian, Golestan Province | |
| 33 km East of Duzin, Golestan Province | |
| Depth | 7 km |
| Agency | |
Faults within 150 km: |
|
| ROBATE_QARABIL_F (Length: 168 km) , Distance to epicenter: 4 km | |
| JAJARAM_F (Length: 77 km) , Distance to epicenter: 39 km | |
| MEYAMEY_F (Length: 141 km) , Distance to epicenter: 67 km | |
| Number of Phases | 16 |
| RMS | 0.3 |
| Number of Stations | 14 |
| Error in Latitude | >2.4 km |
| Error in Longitude | 4.4 km |
| Error in Depth | 6.6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 132378 | IIEES | DAMV | E | 26.1 | 0.44 | 2018-05-24 22:11:48 | 2018-05-26 08:08:00 | n |
| 132379 | IIEES | TABS | N | 26.2 | 0.52 | 2018-05-24 22:11:54 | 2018-05-26 08:08:00 | n |
| 132380 | IIEES | THKV | E | 20.2 | 0.56 | 2018-05-24 22:12:05 | 2018-05-26 08:08:00 | n |
| 132381 | IIEES | THKV | N | 23 | 0.56 | 2018-05-24 22:12:08 | 2018-05-26 08:08:00 | n |
| 132382 | IIEES | GHVR | N | 21.3 | 0.82 | 2018-05-24 22:12:25 | 2018-05-26 08:08:00 | n |
| 132383 | IIEES | GHVR | E | 21.2 | 0.55 | 2018-05-24 22:12:31 | 2018-05-26 08:08:00 | n |
| 132384 | IIEES | YZKH | E | 8.6 | 0.71 | 2018-05-24 22:12:21 | 2018-05-26 08:08:00 | n |
| 132385 | IIEES | YZKH | N | 8.9 | 0.43 | 2018-05-24 22:12:37 | 2018-05-26 08:08:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | MRVT | Z | Pg | E | 2018-05-24 22:09:57 | -0.2 | y | 61.9 | 12 | |||
| IIEES | MRVT | N | Sg | E | 2018-05-24 22:10:05 | 0.34 | y | 61.9 | 12 | |||
| IIEES | SHRO | Z | Pg | E | 2018-05-24 22:10:07 | -0.29 | y | 123 | 177 | |||
| IIEES | BJRD | Z | Pg | E | 2018-05-24 22:10:11 | -0.41 | y | 145 | 63 | |||
| IIEES | DAMV | Z | Pn | E | 2018-05-24 22:10:43 | 0.02 | y | 393 | 246 | |||
| IIEES | TABS | Z | Pn | E | 2018-05-24 22:10:45 | 0.6 | y | 399 | 164 | |||
| IIEES | CHTH | Z | Pn | E | 2018-05-24 22:10:50 | -0.34 | y | 452 | 254 | |||
| IIEES | THKV | Z | Pn | E | 2018-05-24 22:10:53 | 0.25 | y | 473 | 255 | |||
| IIEES | GHVR | Z | Pn | E | 2018-05-24 22:10:59 | 0.19 | y | 516 | 237 | |||
| IIEES | YZKH | Z | Pn | E | 2018-05-24 22:11:01 | -0.21 | y | 538 | 194 | |||
| IIEES | SHRT | Z | Pn | E | 2018-05-24 22:11:03 | 0.17 | y | 551 | 133 | |||
| IIEES | ASAO | Z | Pn | E | 2018-05-24 22:11:10 | 0.57 | y | 606 | 244 | |||
| IIEES | BSRN | Z | Pn | E | 2018-05-24 22:11:14 | 0.32 | y | 641 | 152 | |||
| IIEES | ZNJK | Z | Pn | E | 2018-05-24 22:11:15 | -0.5 | y | 649 | 268 | |||
| IIEES | KHMZ | Z | Pn | E | 2018-05-24 22:11:16 | -0.37 | y | 659 | 237 | |||
| IIEES | GRMI | Z | Pn | E | 2018-05-24 22:11:22 | -2.99 | n | 4 | 732 | 287 | ||
