Magnitude |
:4.2 |
| Date & Time (UTC) | 2018-05-26 14:15:01.3 |
| Date & Time (Local) | 1397/3/5 18:45:01.3 |

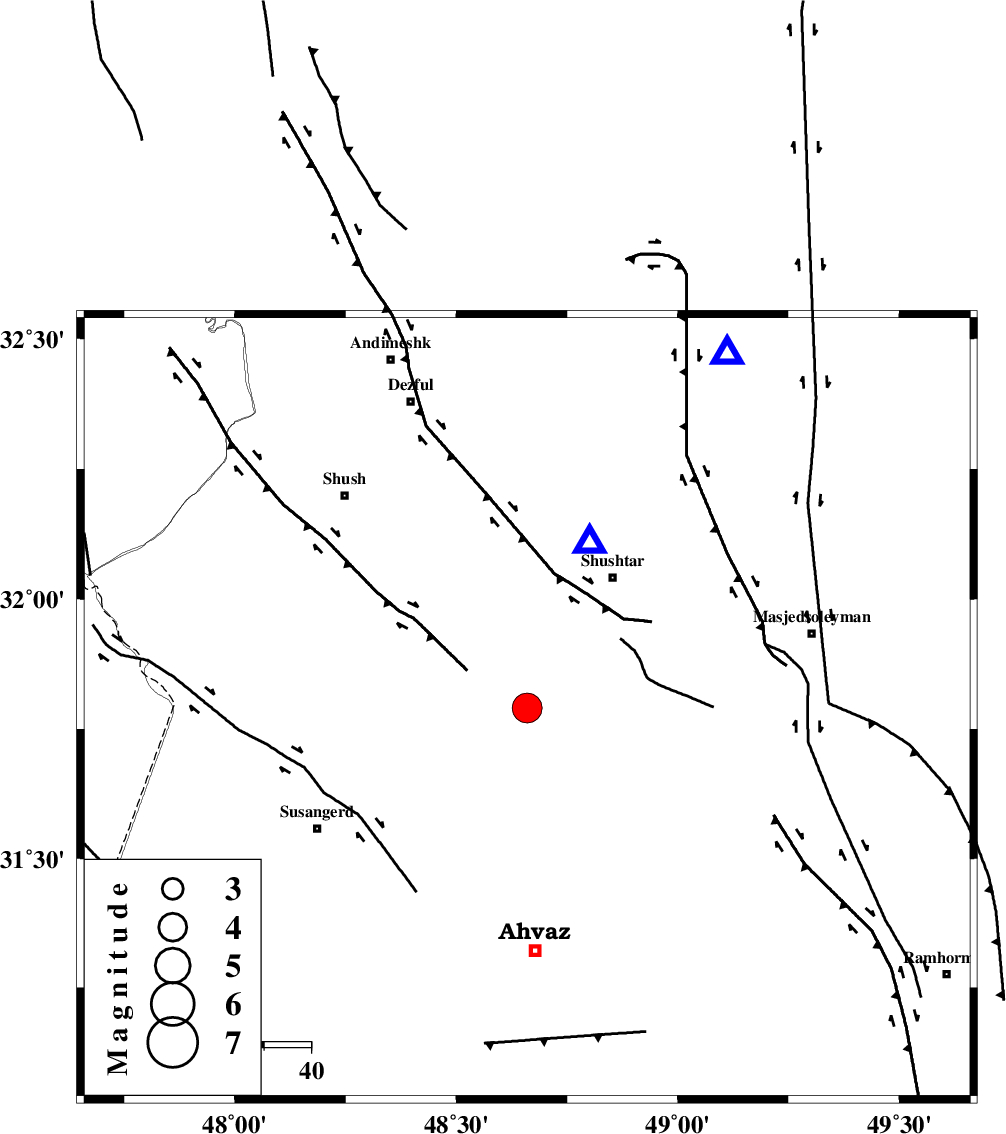

| Location | Lat:31.79 Lon: 48.66 |
| Region | Khoozestan Province, 33 km South-West of Shushtar |
Nearest Cities |
|
| 22 km West of Arabhasan, Khoozestan Province | |
| 24 km South West of Mehdiabad, Khoozestan Province | |
| 27 km East of Abdolkhan-eali, Khoozestan Province | |
| 28 km South West of Sardarabad, Khoozestan Province | |
| 31 km North West of Mollasani, Khoozestan Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| AHVAZ_F (Length: 99 km) , Distance to epicenter: 36 km | |
| DEZFUL_EMBAYMENT (Length: 228 km) , Distance to epicenter: 50 km | |
| AGHAJARI_F (Length: 88 km) , Distance to epicenter: 86 km | |
| Number of Phases | 23 |
| RMS | 0.6 |
| Number of Stations | 22 |
| Error in Latitude | >5 km |
| Error in Longitude | 3.5 km |
| Error in Depth | 0 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 132428 | IIEES | KHMZ | E | 670.8 | 0.42 | 2018-05-26 14:16:19 | 2018-05-27 07:41:00 | n |
| 132429 | IIEES | ILBA | N | 1714.2 | 0.61 | 2018-05-26 14:16:41 | 2018-05-27 07:41:00 | n |
| 132430 | IIEES | ILBA | E | 1592.9 | 0.61 | 2018-05-26 14:16:45 | 2018-05-27 07:41:00 | n |
| 132431 | IIEES | ASAO | N | 531 | 0.42 | 2018-05-26 14:16:38 | 2018-05-27 07:41:00 | n |
| 132432 | IIEES | ASAO | E | 485.8 | 0.59 | 2018-05-26 14:16:41 | 2018-05-27 07:41:00 | n |
| 132433 | IIEES | GHVR | E | 242.5 | 0.58 | 2018-05-26 14:16:51 | 2018-05-27 07:41:00 | n |
| 132434 | IIEES | GHVR | N | 271.8 | 0.48 | 2018-05-26 14:17:02 | 2018-05-27 07:41:00 | n |
| 132435 | IIEES | SNGE | E | 260.2 | 0.44 | 2018-05-26 14:16:58 | 2018-05-27 07:41:00 | n |
| 132436 | IIEES | SNGE | N | 238 | 0.52 | 2018-05-26 14:17:03 | 2018-05-27 07:41:00 | n |
| 132437 | IIEES | AHRM | N | 264 | 0.51 | 2018-05-26 14:17:17 | 2018-05-27 07:41:00 | n |
| 132438 | IIEES | AHRM | E | 260.3 | 0.38 | 2018-05-26 14:17:20 | 2018-05-27 07:41:00 | n |
| 132439 | IIEES | THKV | N | 75.8 | 0.49 | 2018-05-26 14:17:29 | 2018-05-27 07:41:00 | n |
| 132440 | IIEES | DAMV | E | 56 | 0.71 | 2018-05-26 14:17:39 | 2018-05-27 07:41:00 | n |
| 132441 | IIEES | DAMV | N | 186.2 | 0.91 | 2018-05-26 14:17:40 | 2018-05-27 07:41:00 | n |
| 132442 | IIEES | SRSL | E | 162.3 | 0.28 | 2018-05-26 14:17:22 | 2018-05-27 07:41:00 | n |
| 132443 | IIEES | SRSL | N | 196.3 | 0.35 | 2018-05-26 14:17:22 | 2018-05-27 07:41:00 | n |
| 132444 | IIEES | GIDE | N | 91.2 | 0.76 | 2018-05-26 14:17:51 | 2018-05-27 07:41:00 | n |
| 132445 | IIEES | GIDE | E | 96.5 | 0.64 | 2018-05-26 14:18:02 | 2018-05-27 07:41:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | KHMZ | Z | Pn | E | 2018-05-26 14:15:40 | 0.35 | y | 248 | 29 | |||
| IIEES | ILBA | Z | Pn | E | 2018-05-26 14:15:47 | 0.08 | y | 307 | 312 | |||
| IIEES | ASAO | Z | Pn | E | 2018-05-26 14:15:51 | 0.74 | y | 331 | 22 | |||
| IIEES | GHVR | Z | Pn | E | 2018-05-26 14:15:57 | 1.04 | y | 384 | 38 | |||
| IIEES | SNGE | Z | Pn | E | 2018-05-26 14:15:56 | -0.05 | y | 386 | 342 | |||
| IIEES | NASN | Z | Pn | E | 2018-05-26 14:16:34 | 35.28 | n | 4 | 406 | 73 | ||
| IIEES | AHRM | Z | Pn | E | 2018-05-26 14:16:00 | 0.95 | y | 412 | 141 | |||
| IIEES | THKV | Z | Pn | E | 2018-05-26 14:16:10 | -0.75 | y | 502 | 24 | |||
| IIEES | CHTH | Z | Pn | E | 2018-05-26 14:16:11 | -0.63 | y | 511 | 26 | |||
| IIEES | DAMV | Z | Pn | E | 2018-05-26 14:16:13 | -0.42 | y | 525 | 35 | |||
| IIEES | ZNJK | Z | Pn | E | 2018-05-26 14:16:16 | -0.32 | y | 541 | 0 | |||
| IIEES | YZKH | Z | Pn | E | 2018-05-26 14:16:18 | -0.48 | y | 564 | 82 | |||
| IIEES | GHIR | Z | Pn | E | 2018-05-26 14:16:19 | -0.46 | y | 570 | 132 | |||
| IIEES | SRSL | Z | Pn | E | 2018-05-26 14:16:19 | -0.66 | y | 574 | 330 | |||
| IIEES | GIDE | Z | Pn | E | 2018-05-26 14:16:21 | 0.71 | y | 581 | 11 | |||
| IIEES | KRBR | Z | Pn | E | 2018-05-26 14:16:47 | -0.73 | y | 800 | 102 | |||
| IIEES | SHRO | Z | Pn | E | 2018-05-26 14:16:50 | -1.06 | y | 825 | 53 | |||
| IIEES | BNDS | Z | Pn | E | 2018-05-26 14:16:56 | -0.87 | y | 875 | 122 | |||
| IIEES | MRVT | Z | Pn | E | 2018-05-26 14:17:06 | 0.15 | y | 941 | 44 | |||
| IIEES | BSRN | Z | Pn | E | 2018-05-26 14:17:12 | 0.18 | y | 990 | 86 | |||
| IIEES | BJRD | Z | Pn | E | 2018-05-26 14:17:17 | 0.21 | y | 1035 | 48 | |||
| IIEES | SHRT | Z | Pn | E | 2018-05-26 14:17:26 | 0.07 | y | 1109 | 76 | |||
| IIEES | ZHSF | Z | Pn | E | 2018-05-26 14:17:36 | 0.2 | y | 1185 | 99 | |||
