Magnitude |
:3.2 |
| Date & Time (UTC) | 2018-05-26 14:42:27.5 |
| Date & Time (Local) | 1397/3/5 19:12:27.5 |

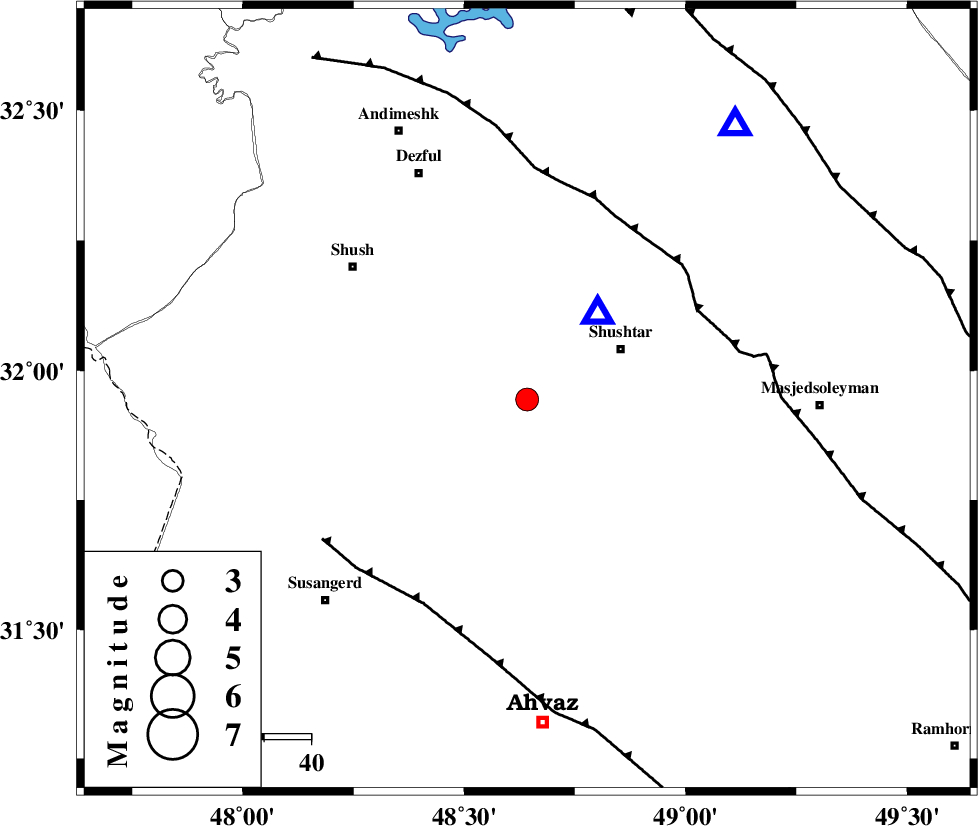

| Location | Lat:31.944 Lon: 48.642 |
| Region | Khoozestan Province, 23 km -West of Shushtar |
Nearest Cities |
|
| 16 km West of Sardarabad, Khoozestan Province | |
| 19 km West of Mehdiabad, Khoozestan Province | |
| 23 km West of Shushtar, Khoozestan Province | |
| 27 km North West of Arabhasan, Khoozestan Province | |
| 28 km North East of Abdolkhan-eali, Khoozestan Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| DEZFUL_EMBAYMENT (Length: 228 km) , Distance to epicenter: 41 km | |
| AHVAZ_F (Length: 99 km) , Distance to epicenter: 49 km | |
| MFF2 (Length: 205 km) , Distance to epicenter: 81 km | |
| Number of Phases | 9 |
| RMS | 0.2 |
| Number of Stations | 7 |
| Error in Latitude | >5.4 km |
| Error in Longitude | 4.1 km |
| Error in Depth | 9.7 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 132469 | IIEES | KHMZ | E | 75.9 | 0.52 | 2018-05-26 14:43:45 | 2018-05-27 07:41:00 | n |
| 132470 | IIEES | ILBA | N | 144.5 | 0.55 | 2018-05-26 14:43:57 | 2018-05-27 07:41:00 | n |
| 132471 | IIEES | ILBA | E | 88.2 | 0.41 | 2018-05-26 14:44:05 | 2018-05-27 07:41:00 | n |
| 132472 | IIEES | ASAO | N | 42.9 | 0.26 | 2018-05-26 14:44:01 | 2018-05-27 07:41:00 | n |
| 132473 | IIEES | SNGE | N | 18.9 | 0.42 | 2018-05-26 14:44:14 | 2018-05-27 07:41:00 | n |
| 132474 | IIEES | GHVR | N | 27.9 | 0.69 | 2018-05-26 14:44:23 | 2018-05-27 07:41:00 | n |
| 132475 | IIEES | GHVR | E | 32.6 | 0.6 | 2018-05-26 14:44:29 | 2018-05-27 07:41:00 | n |
| 132476 | IIEES | SRSL | N | 18.1 | 0.53 | 2018-05-26 14:44:47 | 2018-05-27 07:41:00 | n |
| 132477 | IIEES | SRSL | E | 25.6 | 0.39 | 2018-05-26 14:44:47 | 2018-05-27 07:41:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | KHMZ | Z | Pn | E | 2018-05-26 14:43:04 | 0.33 | y | 234 | 32 | |||
| IIEES | KHMZ | E | Sg | E | 2018-05-26 14:43:33 | -0.09 | y | 234 | 32 | |||
| IIEES | ILBA | Z | Pn | E | 2018-05-26 14:43:11 | -0.11 | y | 294 | 310 | |||
| IIEES | ILBA | N | S | E | 2018-05-26 14:43:43 | -0.13 | y | 294 | 310 | |||
| IIEES | ASAO | Z | Pn | E | 2018-05-26 14:43:14 | 0.18 | y | 316 | 24 | |||
| IIEES | SNGE | Z | Pn | E | 2018-05-26 14:43:21 | 0.24 | y | 369 | 341 | |||
| IIEES | GHVR | Z | Pn | E | 2018-05-26 14:43:20 | -0.45 | y | 371 | 40 | |||
| IIEES | SRSL | Z | Pn | E | 2018-05-26 14:43:44 | 0.06 | y | 558 | 329 | |||
| IIEES | YZKH | Z | Pn | E | 2018-05-26 14:43:45 | -0.08 | y | 563 | 83 | |||
