Magnitude |
:2.5 |
| Date & Time (UTC) | 2018-05-28 05:16:52.5 |
| Date & Time (Local) | 1397/3/7 09:46:52.5 |

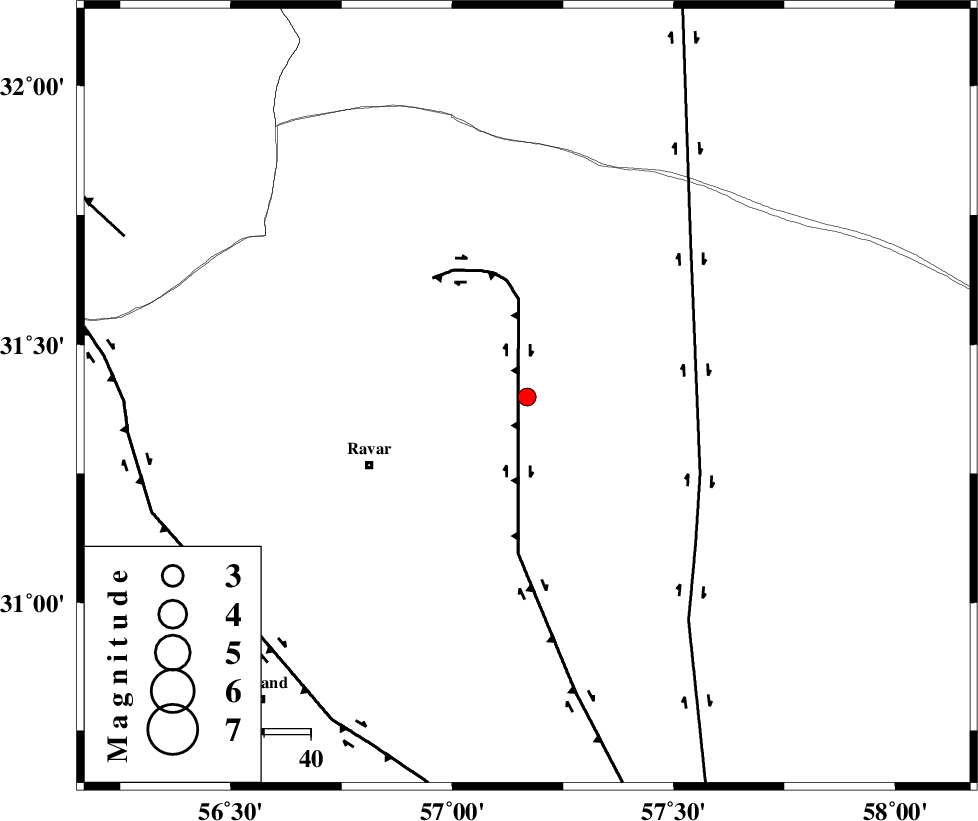

| Location | Lat:31.399 Lon: 57.169 |
| Region | Kerman Province, 37 km North-East of Ravar |
Nearest Cities |
|
| 36 km North East of Dehali, Kerman Province | |
| 37 km North East of Ravar, Kerman Province | |
| 67 km North East of Ahmadi, Kerman Province | |
| 69 km North East of Dasht-e khak, Kerman Province | |
| 72 km North East of Hatkan, Kerman Province | |
| Depth | 16 km |
| Agency | |
Faults within 150 km: |
|
| LAKARKUH_F (Length: 138 km) , Distance to epicenter: 21 km | |
| NAYBAND_F (Length: 258 km) , Distance to epicenter: 41 km | |
| KUHBANAN_F (Length: 189 km) , Distance to epicenter: 78 km | |
| Number of Phases | 7 |
| RMS | 0.2 |
| Number of Stations | 5 |
| Error in Latitude | >3.1 km |
| Error in Longitude | 3.1 km |
| Error in Depth | 7.4 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 132638 | IIEES | KRBR | E | 43 | 0.52 | 2018-05-28 05:17:43 | 2018-05-28 07:18:00 | n |
| 132639 | IIEES | KRBR | N | 52.9 | 0.41 | 2018-05-28 05:17:44 | 2018-05-28 07:18:00 | n |
| 132640 | IIEES | BSRN | N | 53.8 | 0.53 | 2018-05-28 05:17:51 | 2018-05-28 07:18:00 | n |
| 132641 | IIEES | BSRN | E | 45 | 0.21 | 2018-05-28 05:17:51 | 2018-05-28 07:18:00 | n |
| 132642 | IIEES | TABS | N | 22.6 | 0.38 | 2018-05-28 05:18:10 | 2018-05-28 07:18:00 | n |
| 132643 | IIEES | TABS | E | 15.7 | 0.54 | 2018-05-28 05:18:13 | 2018-05-28 07:18:00 | n |
| 132644 | IIEES | YZKH | E | 25.6 | 0.33 | 2018-05-28 05:18:10 | 2018-05-28 07:18:00 | n |
| 132645 | IIEES | YZKH | N | 19.6 | 0.55 | 2018-05-28 05:18:11 | 2018-05-28 07:18:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | KRBR | Z | Pg | E | 2018-05-28 05:17:19 | -0.09 | y | 162 | 194 | |||
| IIEES | KRBR | N | Sg | E | 2018-05-28 05:17:39 | 0.02 | y | 162 | 194 | |||
| IIEES | BSRN | Z | Pn | E | 2018-05-28 05:17:24 | -0.13 | y | 196 | 71 | |||
| IIEES | BSRN | N | Sg | E | 2018-05-28 05:17:48 | 0.07 | y | 196 | 71 | |||
| IIEES | TABS | Z | Pn | E | 2018-05-28 05:17:30 | -0.3 | y | 250 | 359 | |||
| IIEES | YZKH | Z | Pn | E | 2018-05-28 05:17:33 | 0.22 | y | 267 | 295 | |||
| IIEES | SHRT | Z | Pn | E | 2018-05-28 05:17:48 | 0.26 | y | 385 | 49 | |||
