Magnitude |
:3.6 |
| Date & Time (UTC) | 2018-05-28 16:49:37.1 |
| Date & Time (Local) | 1397/3/7 21:19:37.1 |

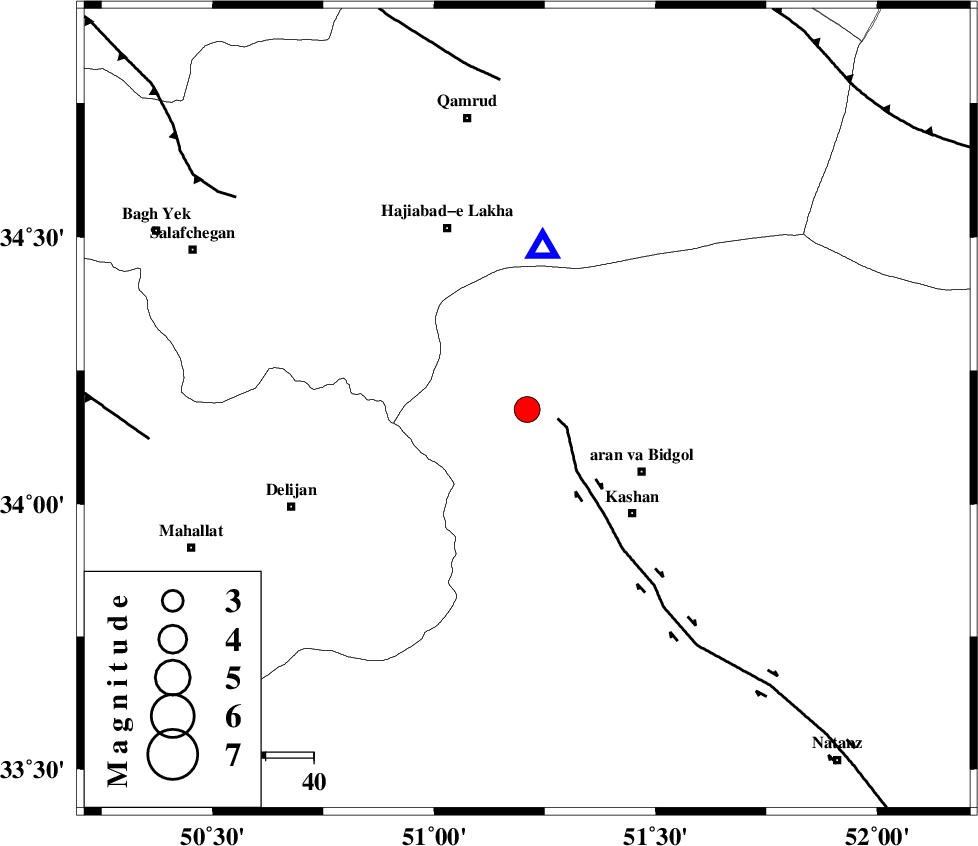

| Location | Lat:34.177 Lon: 51.21 |
| Region | Esfahan Province, 27 km North-West of Aran va bidgol |
Nearest Cities |
|
| 4 km North of Mashgan, Esfahan Province | |
| 14 km North West of Nasrabad, Esfahan Province | |
| 15 km North East of Armak, Esfahan Province | |
| 17 km North of Astarak, Esfahan Province | |
| 19 km East of Yahyaabad, Esfahan Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| KASHAN_F (Length: 44 km) , Distance to epicenter: 7 km | |
| ZEFREH_F (Length: 124 km) , Distance to epicenter: 50 km | |
| KUSHK_E_NOSRAT_F (Length: 230 km) , Distance to epicenter: 69 km | |
| Number of Phases | 18 |
| RMS | 0.3 |
| Number of Stations | 17 |
| Error in Latitude | >2.8 km |
| Error in Longitude | 3 km |
| Error in Depth | 5.2 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 132689 | IIEES | GHVR | E | 6800.4 | 0.28 | 2018-05-28 16:49:51 | 2018-05-29 05:55:00 | n |
| 132690 | IIEES | GHVR | N | 4736.4 | 0.22 | 2018-05-28 16:49:53 | 2018-05-29 05:55:00 | n |
| 132691 | IIEES | KHMZ | N | 1123.3 | 0.51 | 2018-05-28 16:50:15 | 2018-05-29 05:55:00 | n |
| 132692 | IIEES | KHMZ | E | 1439.7 | 0.36 | 2018-05-28 16:50:15 | 2018-05-29 05:55:00 | n |
| 132693 | IIEES | DAMV | E | 692.2 | 0.27 | 2018-05-28 16:50:30 | 2018-05-29 05:55:00 | n |
| 132694 | IIEES | DAMV | N | 466.5 | 0.3 | 2018-05-28 16:50:30 | 2018-05-29 05:55:00 | n |
| 132695 | IIEES | CHTH | E | 379 | 0.34 | 2018-05-28 16:50:35 | 2018-05-29 05:55:00 | n |
| 132696 | IIEES | THKV | N | 414.8 | 0.33 | 2018-05-28 16:50:36 | 2018-05-29 05:55:00 | n |
| 132697 | IIEES | NASN | N | 749 | 0.31 | 2018-05-28 16:50:38 | 2018-05-29 05:55:00 | n |
| 132698 | IIEES | NASN | E | 864.3 | 0.33 | 2018-05-28 16:50:38 | 2018-05-29 05:55:00 | n |
| 132699 | IIEES | GIDE | E | 123.7 | 0.83 | 2018-05-28 16:51:18 | 2018-05-29 05:55:00 | n |
| 132700 | IIEES | GIDE | N | 170.4 | 0.62 | 2018-05-28 16:51:19 | 2018-05-29 05:55:00 | n |
| 132701 | IIEES | ILBA | N | 45.4 | 0.73 | 2018-05-28 16:51:46 | 2018-05-29 05:55:00 | n |
| 132702 | IIEES | TABS | N | 19.5 | 0.5 | 2018-05-28 16:52:35 | 2018-05-29 05:55:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | GHVR | Z | Pg | E | 2018-05-28 16:49:44 | 1.01 | n | 4 | 33.8 | 6 | ||
| IIEES | ASAO | Z | Pg | E | 2018-05-28 16:49:56 | 0.06 | y | 116 | 291 | |||
| IIEES | KHMZ | Z | Pg | E | 2018-05-28 16:49:57 | -0.51 | y | 125 | 248 | |||
| IIEES | DAMV | Z | Pg | E | 2018-05-28 16:50:05 | -0.34 | y | 176 | 23 | |||
| IIEES | CHTH | Z | Pg | E | 2018-05-28 16:50:08 | -0.36 | y | 192 | 358 | |||
| IIEES | THKV | Z | Pg | E | 2018-05-28 16:50:09 | 0.1 | y | 195 | 351 | |||
| IIEES | NASN | Z | Pn | E | 2018-05-28 16:50:11 | -0.13 | y | 213 | 135 | |||
| IIEES | GIDE | Z | Pn | E | 2018-05-28 16:50:25 | 0.49 | y | 327 | 339 | |||
| IIEES | ZNJK | Z | Pn | E | 2018-05-28 16:50:30 | 0.48 | y | 359 | 321 | |||
| IIEES | SNGE | Z | Pn | E | 2018-05-28 16:50:34 | 4.11 | n | 4 | 368 | 287 | ||
| IIEES | YZKH | Z | Pn | E | 2018-05-28 16:50:31 | 0.17 | y | 372 | 121 | |||
| IIEES | ILBA | Z | Pn | E | 2018-05-28 16:50:43 | 0.43 | y | 467 | 264 | |||
| IIEES | SHRO | Z | Pn | E | 2018-05-28 16:50:44 | 0.1 | y | 483 | 64 | |||
| IIEES | TABS | Z | Pn | E | 2018-05-28 16:50:53 | 0.18 | y | 550 | 94 | |||
| IIEES | SRSL | Z | Pn | E | 2018-05-28 16:50:55 | 0.03 | y | 572 | 295 | |||
| IIEES | MRVT | Z | Pn | E | 2018-05-28 16:50:57 | 0.07 | y | 586 | 47 | |||
| IIEES | GRMI | Z | Pn | E | 2018-05-28 16:50:57 | -0.55 | y | 594 | 331 | |||
| IIEES | BSRN | Z | Pn | E | 2018-05-28 16:51:21 | -0.12 | y | 779 | 106 | |||
