Magnitude |
:3.1 |
| Date & Time (UTC) | 2018-05-30 13:58:43.4 |
| Date & Time (Local) | 1397/3/9 18:28:43.4 |

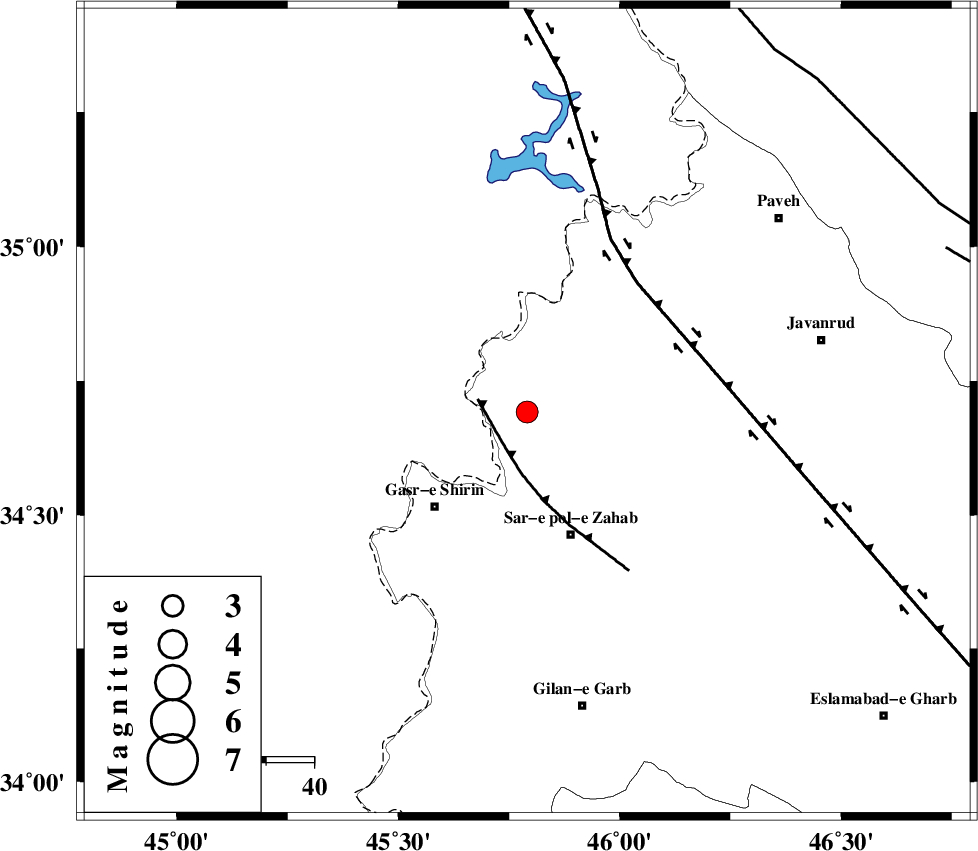

| Location | Lat:34.692 Lon: 45.791 |
| Region | Kermanshah Province, 9 km of Tazehabad |
Nearest Cities |
|
| 3 km of Gardehnu, Kermanshah Province | |
| 9 km of Tazehabad, Kermanshah Province | |
| 9 km of Tappeh rash, Kermanshah Province | |
| 13 km North West of Bazmirabad, Kermanshah Province | |
| 14 km North of Mirmiru, Kermanshah Province | |
| Depth | 6 km |
| Agency | |
Faults within 150 km: |
|
| MFF8 (Length: 48 km) , Distance to epicenter: 8 km | |
| HZF4 (Length: 492 km) , Distance to epicenter: 35 km | |
| ZFF4 (Length: 128 km) , Distance to epicenter: 89 km | |
| Number of Phases | 11 |
| RMS | 0.3 |
| Number of Stations | 9 |
| Error in Latitude | >2.4 km |
| Error in Longitude | 3.4 km |
| Error in Depth | 4.4 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 132967 | IIEES | ILBA | E | 845 | 0.51 | 2018-05-30 13:59:26 | 2018-06-02 05:44:00 | n |
| 132968 | IIEES | ILBA | N | 689 | 0.41 | 2018-05-30 13:59:27 | 2018-06-02 05:44:00 | n |
| 132969 | IIEES | SNGE | N | 289.9 | 0.48 | 2018-05-30 13:59:33 | 2018-06-02 05:44:00 | n |
| 132970 | IIEES | SNGE | E | 158.9 | 0.55 | 2018-05-30 13:59:36 | 2018-06-02 05:44:00 | n |
| 132971 | IIEES | SRSL | N | 388.5 | 0.63 | 2018-05-30 13:59:38 | 2018-06-02 05:44:00 | n |
| 132972 | IIEES | SRSL | E | 392.8 | 0.31 | 2018-05-30 13:59:38 | 2018-06-02 05:44:00 | n |
| 132973 | IIEES | ASAO | N | 14.1 | 0.63 | 2018-05-30 14:00:58 | 2018-06-02 05:44:00 | n |
| 132974 | IIEES | KHMZ | E | 12.6 | 0.55 | 2018-05-30 14:00:46 | 2018-06-02 05:44:00 | n |
| 132975 | IIEES | GHVR | E | 9.1 | 0.28 | 2018-05-30 14:01:13 | 2018-06-02 05:44:00 | n |
| 132976 | IIEES | GHVR | N | 8 | 0.43 | 2018-05-30 14:01:34 | 2018-06-02 05:44:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | ILBA | Z | Pg | E | 2018-05-30 13:59:04 | -0.13 | y | 124 | 162 | |||
| IIEES | SNGE | Z | Pg | E | 2018-05-30 13:59:08 | -0.6 | y | 149 | 72 | |||
| IIEES | SNGE | N | Sg | E | 2018-05-30 13:59:28 | 0.11 | y | 149 | 72 | |||
| IIEES | SRSL | Z | Pg | E | 2018-05-30 13:59:12 | -0.21 | y | 172 | 349 | |||
| IIEES | SRSL | N | Sg | E | 2018-05-30 13:59:34 | -0.01 | y | 172 | 349 | |||
| IIEES | ZNJK | Z | Pn | E | 2018-05-30 13:59:34 | 0.16 | y | 342 | 49 | |||
| IIEES | ASAO | Z | Pn | E | 2018-05-30 13:59:41 | 0.59 | y | 389 | 91 | |||
| IIEES | KHMZ | Z | Pn | E | 2018-05-30 13:59:41 | 0 | y | 399 | 104 | |||
| IIEES | GRMI | Z | Pn | E | 2018-05-30 13:59:53 | -0.05 | y | 494 | 22 | |||
| IIEES | GHVR | Z | Pn | E | 2018-05-30 13:59:54 | 0 | y | 501 | 91 | |||
| IIEES | MAKU | Z | Pn | E | 2018-05-30 13:59:58 | 0.41 | y | 527 | 350 | |||
