Magnitude |
:3.1 |
| Date & Time (UTC) | 2018-05-30 18:30:35.8 |
| Date & Time (Local) | 1397/3/9 23:00:35.8 |

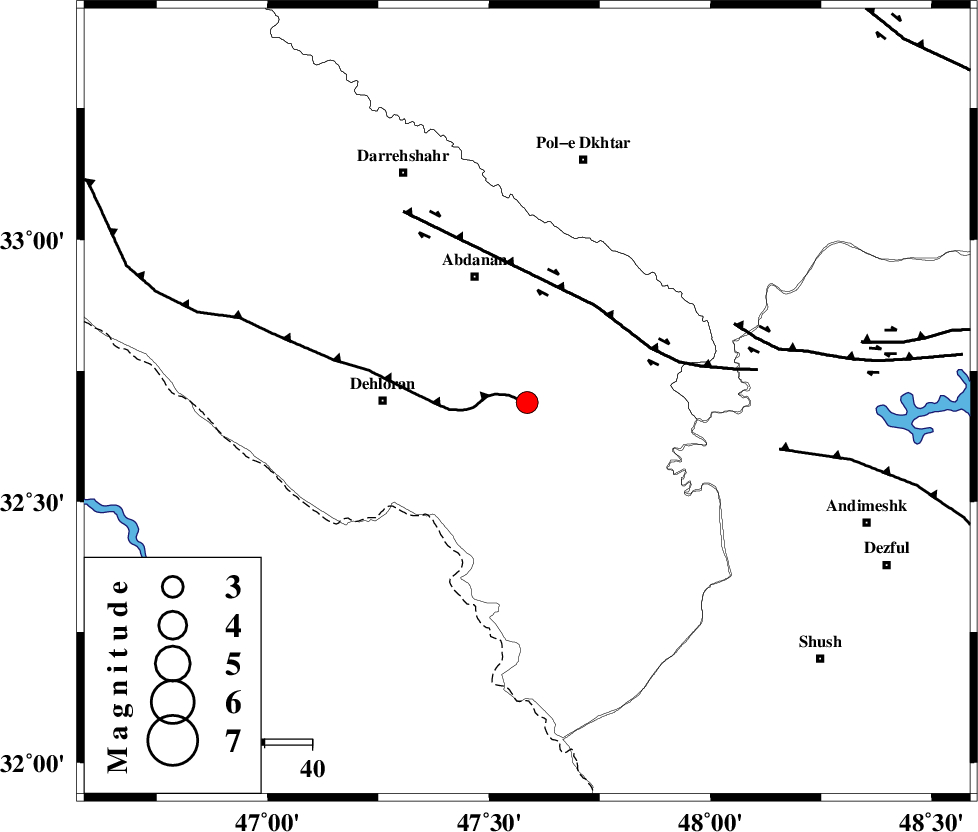

| Location | Lat:32.69 Lon: 47.586 |
| Region | Ilam Province, 31 km -East of Dehloran |
Nearest Cities |
|
| 23 km South of Sarabbagh, Ilam Province | |
| 27 km North East of Musian, Ilam Province | |
| 29 km South East of Abdanan, Ilam Province | |
| 31 km East of Dehloran, Ilam Province | |
| 46 km South West of Sarab hammam, Lorestan Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| MFF6 (Length: 144 km) , Distance to epicenter: 1 km | |
| BALARUD_F_Z1 (Length: 87 km) , Distance to epicenter: 25 km | |
| BALARUD_F_Z3 (Length: 53 km) , Distance to epicenter: 47 km | |
| Number of Phases | 14 |
| RMS | 0.4 |
| Number of Stations | 12 |
| Error in Latitude | >8.6 km |
| Error in Longitude | 2.9 km |
| Error in Depth | 7 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 132977 | IIEES | ILBA | E | 832.9 | 0.45 | 2018-05-30 18:31:27 | 2018-06-02 05:44:00 | n |
| 132978 | IIEES | ILBA | N | 726.3 | 0.53 | 2018-05-30 18:31:32 | 2018-06-02 05:44:00 | n |
| 132979 | IIEES | KHMZ | N | 66.9 | 0.45 | 2018-05-30 18:31:49 | 2018-06-02 05:44:00 | n |
| 132980 | IIEES | KHMZ | E | 62.9 | 0.4 | 2018-05-30 18:31:52 | 2018-06-02 05:44:00 | n |
| 132981 | IIEES | SNGE | E | 94.6 | 0.54 | 2018-05-30 18:31:56 | 2018-06-02 05:44:00 | n |
| 132982 | IIEES | SNGE | N | 54.9 | 0.38 | 2018-05-30 18:31:59 | 2018-06-02 05:44:00 | n |
| 132983 | IIEES | ASAO | E | 33.3 | 0.37 | 2018-05-30 18:32:11 | 2018-06-02 05:44:00 | n |
| 132984 | IIEES | ASAO | N | 42.1 | 0.59 | 2018-05-30 18:32:12 | 2018-06-02 05:44:00 | n |
| 132985 | IIEES | GHVR | E | 28.1 | 0.7 | 2018-05-30 18:32:35 | 2018-06-02 05:44:00 | n |
| 132986 | IIEES | GHVR | N | 18.5 | 0.61 | 2018-05-30 18:32:42 | 2018-06-02 05:44:00 | n |
| 132987 | IIEES | SRSL | E | 29.9 | 0.29 | 2018-05-30 18:32:27 | 2018-06-02 05:44:00 | n |
| 132988 | IIEES | SRSL | N | 21.6 | 0.42 | 2018-05-30 18:32:27 | 2018-06-02 05:44:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | ILBA | Z | Pg | E | 2018-05-30 18:31:02 | -0.29 | y | 165 | 309 | |||
| IIEES | ILBA | N | Sg | E | 2018-05-30 18:31:23 | 0.21 | y | 165 | 309 | |||
| IIEES | KHMZ | Z | Pn | E | 2018-05-30 18:31:15 | 0.31 | y | 250 | 62 | |||
| IIEES | KHMZ | N | Sg | E | 2018-05-30 18:31:46 | -0.33 | y | 250 | 62 | |||
| IIEES | SNGE | Z | Pn | E | 2018-05-30 18:31:16 | -0.19 | y | 267 | 355 | |||
| IIEES | ASAO | Z | Pn | E | 2018-05-30 18:31:22 | 0.45 | y | 306 | 47 | |||
| IIEES | GHVR | Z | Pn | E | 2018-05-30 18:31:32 | 0.4 | y | 393 | 59 | |||
| IIEES | SRSL | Z | Pn | E | 2018-05-30 18:31:37 | -0.26 | y | 438 | 334 | |||
| IIEES | ZNJK | Z | Pn | E | 2018-05-30 18:31:39 | -0.09 | y | 453 | 13 | |||
| IIEES | CHTH | Z | Pn | E | 2018-05-30 18:31:44 | 0.38 | y | 483 | 41 | |||
| IIEES | NASN | Z | Pn | E | 2018-05-30 18:31:44 | -0.48 | y | 490 | 87 | |||
| IIEES | DAMV | Z | Pn | E | 2018-05-30 18:31:48 | 0.36 | y | 519 | 50 | |||
| IIEES | GRMI | Z | Pn | E | 2018-05-30 18:32:07 | -0.18 | y | 680 | 2 | |||
| IIEES | SHRO | Z | Pn | E | 2018-05-30 18:32:29 | -0.87 | y | 858 | 62 | |||
