Magnitude |
:3.7 |
| Date & Time (UTC) | 2018-04-02 03:03:24.5 |
| Date & Time (Local) | 1397/1/13 07:33:24.5 |

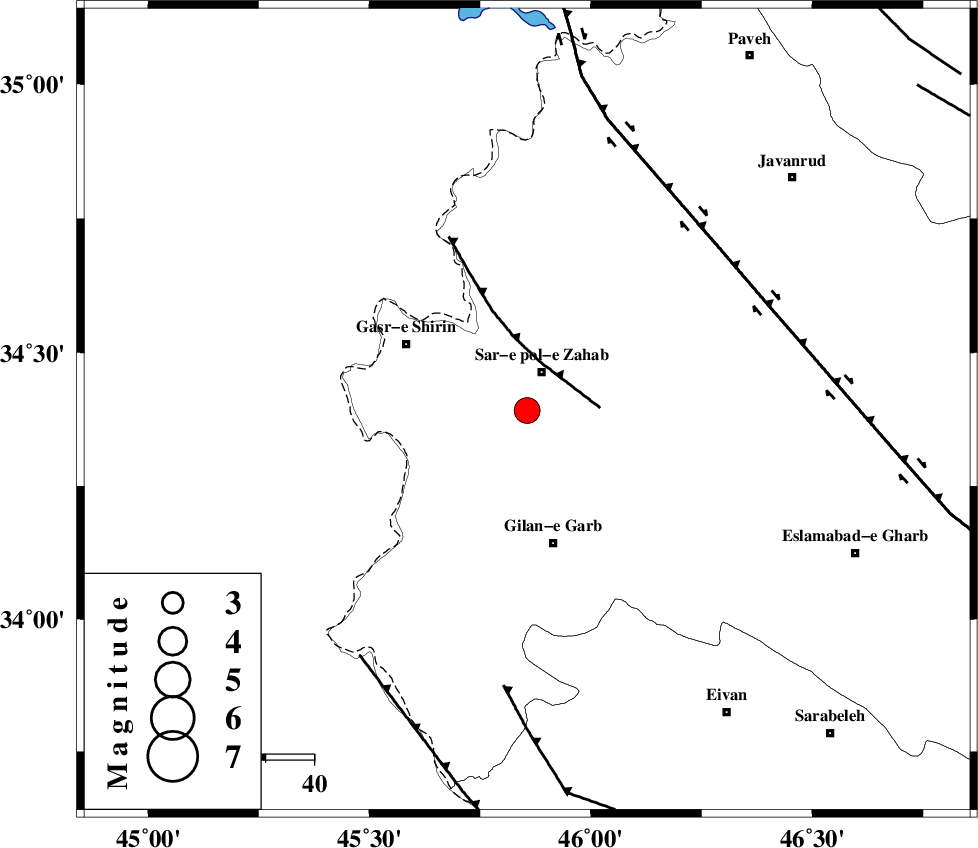

| Location | Lat:34.391 Lon: 45.856 |
| Region | Kermanshah Province, 9 km of Sar-e pol-e zahab |
Nearest Cities |
|
| 6 km of Tarkveys, Kermanshah Province | |
| 8 km North of Chub baghan, Kermanshah Province | |
| 9 km of Sar-e pol-e zahab, Kermanshah Province | |
| 13 km of Qareh belagh, Kermanshah Province | |
| 19 km West of Rijab, Kermanshah Province | |
| Depth | 18 km |
| Agency | |
Faults within 150 km: |
|
| MFF8 (Length: 48 km) , Distance to epicenter: 10 km | |
| HZF4 (Length: 492 km) , Distance to epicenter: 53 km | |
| MFF7 (Length: 99 km) , Distance to epicenter: 57 km | |
| Number of Phases | 13 |
| RMS | 0.4 |
| Number of Stations | 12 |
| Error in Latitude | >3.1 km |
| Error in Longitude | 8.3 km |
| Error in Depth | 7.1 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 133146 | IIEES | ILBA | E | 4148.3 | 0.49 | 2018-04-02 03:03:55 | 2018-06-03 11:40:00 | n |
| 133147 | IIEES | ILBA | N | 3744.8 | 0.38 | 2018-04-02 03:03:58 | 2018-06-03 11:40:00 | n |
| 133148 | IIEES | ASAO | N | 114.7 | 0.44 | 2018-04-02 03:05:29 | 2018-06-03 11:40:00 | n |
| 133149 | IIEES | ASAO | E | 134.9 | 0.62 | 2018-04-02 03:05:31 | 2018-06-03 11:40:00 | n |
| 133150 | IIEES | KHMZ | N | 109.1 | 0.45 | 2018-04-02 03:05:31 | 2018-06-03 11:40:00 | n |
| 133151 | IIEES | KHMZ | E | 120.1 | 0.54 | 2018-04-02 03:05:35 | 2018-06-03 11:40:00 | n |
| 133152 | IIEES | GIDE | E | 43.8 | 0.64 | 2018-04-02 03:05:52 | 2018-06-03 11:40:00 | n |
| 133153 | IIEES | GIDE | N | 52.7 | 0.56 | 2018-04-02 03:05:56 | 2018-06-03 11:40:00 | n |
| 133154 | IIEES | THKV | N | 35.7 | 0.77 | 2018-04-02 03:05:54 | 2018-06-03 11:40:00 | n |
| 133155 | IIEES | GHVR | N | 41.4 | 0.65 | 2018-04-02 03:05:58 | 2018-06-03 11:40:00 | n |
| 133156 | IIEES | GHVR | E | 93 | 0.48 | 2018-04-02 03:06:00 | 2018-06-03 11:40:00 | n |
| 133157 | IIEES | NASN | N | 9.8 | 0.27 | 2018-04-02 03:06:06 | 2018-06-03 11:40:00 | n |
| 133158 | IIEES | NASN | E | 16.1 | 0.36 | 2018-04-02 03:06:10 | 2018-06-03 11:40:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | ILBA | Z | Pg | E | 2018-04-02 03:03:39 | -0.16 | y | 91 | 159 | |||
| IIEES | ILBA | N | Sg | E | 2018-04-02 03:03:51 | 0.33 | y | 91 | 159 | |||
| IIEES | SNGE | Z | Pg | E | 2018-04-02 03:03:50 | -0.21 | y | 157 | 60 | |||
| IIEES | ASAO | Z | Pn | E | 2018-04-02 03:04:20 | 1.18 | n | 4 | 383 | 86 | ||
| IIEES | KHMZ | Z | Pn | E | 2018-04-02 03:04:19 | -0.19 | y | 386 | 100 | |||
| IIEES | GIDE | Z | Pn | E | 2018-04-02 03:04:30 | 0.79 | y | 462 | 51 | |||
| IIEES | THKV | Z | Pn | E | 2018-04-02 03:04:32 | 0.04 | y | 488 | 68 | |||
| IIEES | GHVR | Z | Pn | E | 2018-04-02 03:04:33 | 0.3 | y | 495 | 87 | |||
| IIEES | CHTH | Z | Pn | E | 2018-04-02 03:04:34 | -0.34 | y | 509 | 69 | |||
| IIEES | GRMI | Z | Pn | E | 2018-04-02 03:04:37 | 0.21 | y | 523 | 20 | |||
| IIEES | MAKU | Z | Pn | E | 2018-04-02 03:04:41 | -0.13 | y | 561 | 350 | |||
| IIEES | NASN | Z | Pn | E | 2018-04-02 03:04:54 | -0.26 | y | 669 | 103 | |||
| IIEES | AHRM | Z | Pn | E | 2018-04-02 03:05:10 | -0.91 | y | 801 | 138 | |||
