Magnitude |
:3.1 |
| Date & Time (UTC) | 2018-06-16 03:11:24.9 |
| Date & Time (Local) | 1397/3/26 07:41:24.9 |

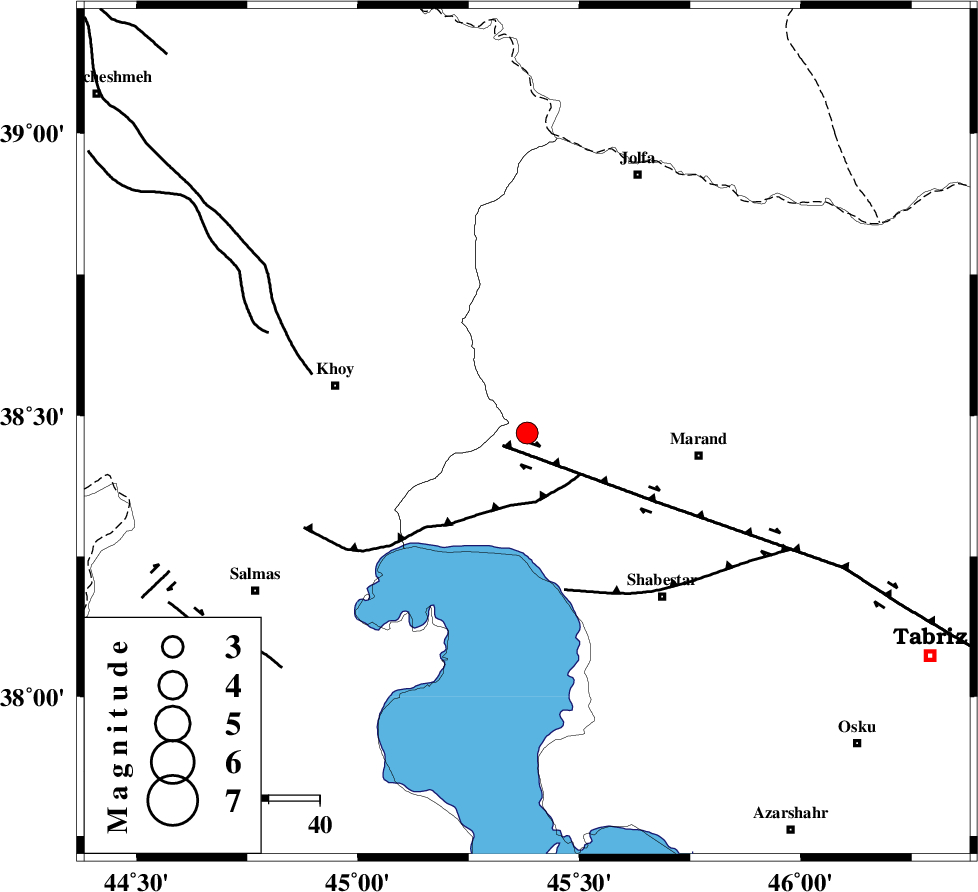

| Location | Lat:38.469 Lon: 45.382 |
| Region | Azarbaijan Sharghi Province, 34 km -West of Marand |
Nearest Cities |
|
| 16 km North West of Kashksaray, Azarbaijan Sharghi Province | |
| 16 km North of Jahregan, Azarbaijan Sharghi Province | |
| 18 km North of Tasuj, Azarbaijan Sharghi Province | |
| 22 km South of Yekan kahriz, Azarbaijan Sharghi Province | |
| 23 km West of Yamchi, Azarbaijan Sharghi Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 5 km | |
| N_TABRIZ_F3 (Length: 66 km) , Distance to epicenter: 13 km | |
| N_TABRIZ_F2 (Length: 52 km) , Distance to epicenter: 32 km | |
| Number of Phases | 7 |
| RMS | 0.2 |
| Number of Stations | 5 |
| Error in Latitude | >4.9 km |
| Error in Longitude | 3.1 km |
| Error in Depth | 9.3 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 133558 | IIEES | MAKU | N | 362.3 | 0.18 | 2018-06-16 03:11:59 | 2018-06-17 07:00:00 | n |
| 133559 | IIEES | GRMI | E | 93.1 | 0.35 | 2018-06-16 03:12:30 | 2018-06-17 07:00:00 | n |
| 133560 | IIEES | GIDE | N | 27.3 | 0.33 | 2018-06-16 03:13:20 | 2018-06-17 07:00:00 | n |
| 133561 | IIEES | GIDE | E | 24.6 | 0.99 | 2018-06-16 03:13:35 | 2018-06-17 07:00:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | MAKU | Z | Pg | E | 2018-06-16 03:11:44 | -0.32 | y | 115 | 329 | |||
| IIEES | MAKU | E | Sg | E | 2018-06-16 03:11:58 | 0.17 | y | 115 | 329 | |||
| IIEES | GRMI | Z | Pn | E | 2018-06-16 03:12:00 | 0.3 | y | 222 | 79 | |||
| IIEES | GRMI | N | Sg | E | 2018-06-16 03:12:27 | -0.18 | y | 222 | 79 | |||
| IIEES | ZNJK | Z | Pn | E | 2018-06-16 03:12:16 | -0.06 | y | 353 | 123 | |||
| IIEES | SNGE | Z | Pn | E | 2018-06-16 03:12:24 | -0.11 | y | 414 | 154 | |||
| IIEES | GIDE | Z | Pn | E | 2018-06-16 03:12:26 | 0.22 | y | 435 | 112 | |||
