Magnitude |
:2.7 |
| Date & Time (UTC) | 2018-06-19 05:42:39.6 |
| Date & Time (Local) | 1397/3/29 10:12:39.6 |

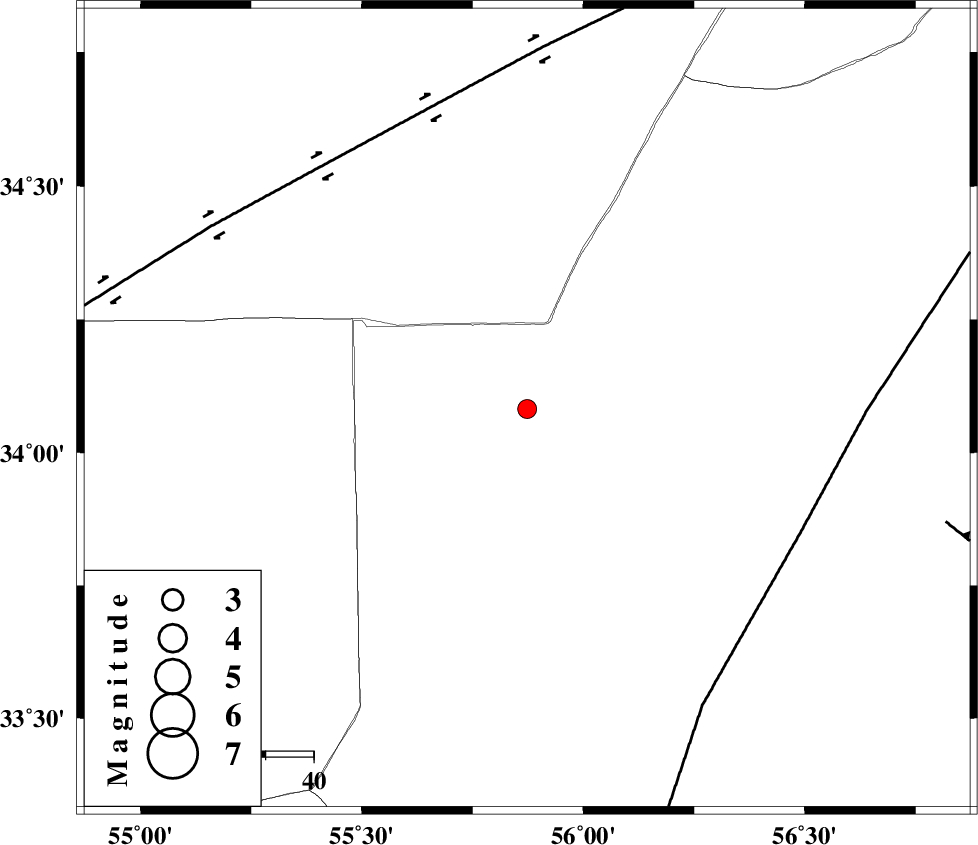

| Location | Lat:34.082 Lon: 55.873 |
| Region | Yazd Province, 111 km North-West of Tabas |
Nearest Cities |
|
| 41 km North West of Halvan, Yazd Province | |
| 50 km North West of Darin, Yazd Province | |
| 80 km North East of Khur, Esfahan Province | |
| 90 km North East of Farrokhi, Esfahan Province | |
| 92 km North East of Mehranjan, Esfahan Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| NAINI_F (Length: 342 km) , Distance to epicenter: 62 km | |
| BIABANAK_F (Length: 162 km) , Distance to epicenter: 73 km | |
| DORUNEH_F (Length: 713 km) , Distance to epicenter: 76 km | |
| Number of Phases | 6 |
| RMS | 0.4 |
| Number of Stations | 3 |
| Error in Latitude | >2.3 km |
| Error in Longitude | 3.6 km |
| Error in Depth | 8.5 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 133694 | IIEES | SHRO | E | 62.6 | 0.39 | 2018-06-19 05:43:42 | 2018-06-20 04:23:00 | n |
| 133695 | IIEES | SHRO | N | 60.6 | 0.59 | 2018-06-19 05:43:42 | 2018-06-20 04:23:00 | n |
| 133696 | IIEES | YZKH | N | 35 | 0.28 | 2018-06-19 05:43:45 | 2018-06-20 04:23:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | TABS | Z | Pg | E | 2018-06-19 05:43:00 | 0.34 | y | 125 | 112 | |||
| IIEES | TABS | N | S | E | 2018-06-19 05:43:15 | -0.26 | y | 125 | 112 | |||
| IIEES | SHRO | Z | Pn | E | 2018-06-19 05:43:13 | -0.35 | y | 214 | 3 | |||
| IIEES | SHRO | N | Sg | E | 2018-06-19 05:43:40 | 0.06 | y | 214 | 3 | |||
| IIEES | YZKH | Z | Pn | E | 2018-06-19 05:43:15 | 0.58 | y | 222 | 213 | |||
| IIEES | YZKH | N | Sg | E | 2018-06-19 05:43:42 | -0.36 | y | 222 | 213 | |||
