Magnitude |
:3.7 |
| Date & Time (UTC) | 2018-06-23 00:04:54.4 |
| Date & Time (Local) | 1397/4/2 04:34:54.4 |

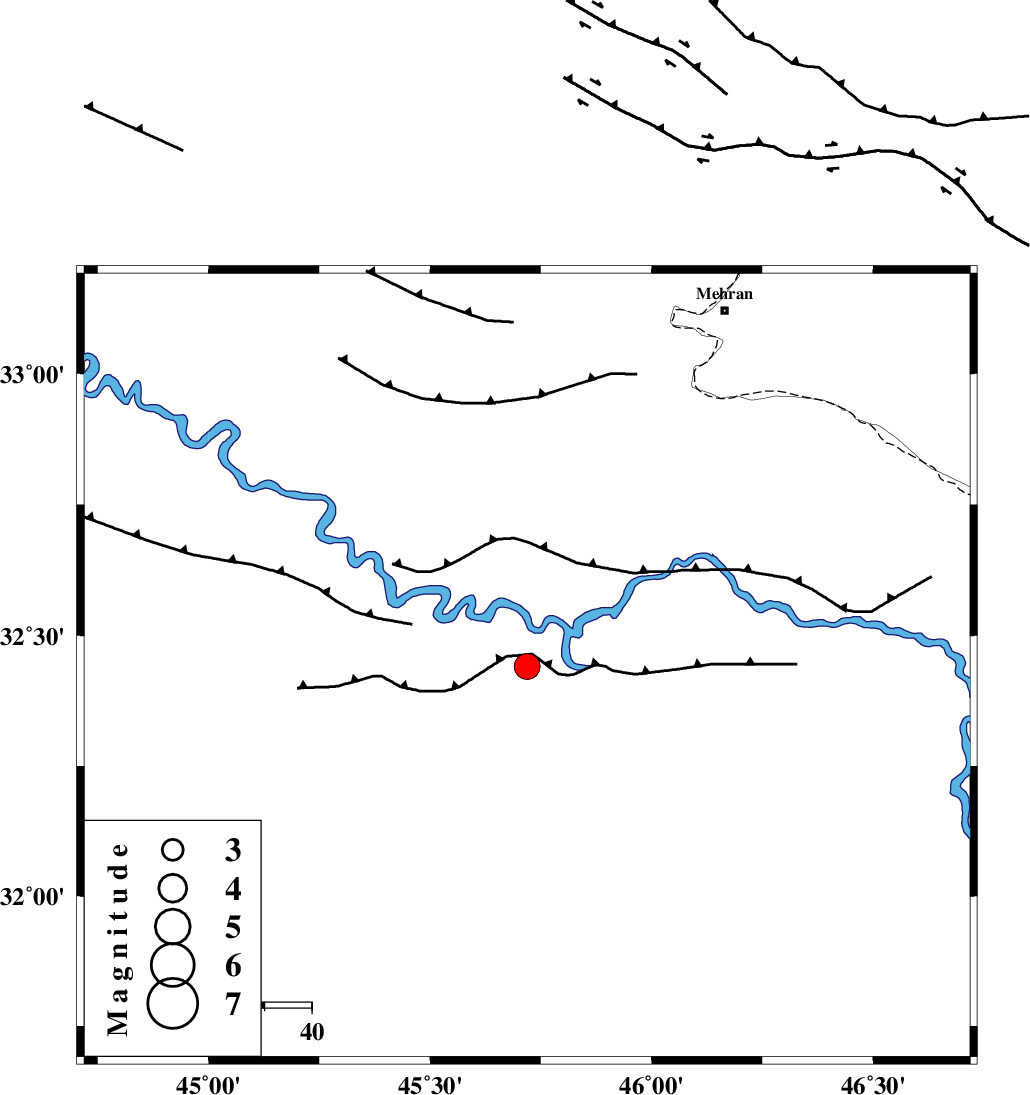

| Location | Lat:32.441 Lon: 45.719 |
| Region | Iraq, 86 km South-West of Mehran |
Nearest Cities |
|
| 86 km South West of Mehran, Ilam Province | |
| 119 km South West of Gonbad-e pirmohammad, Ilam Province | |
| 120 km South West of Galeh-yedarre-hemalakshahi, Ilam Province | |
| 123 km South West of Salehabad, Ilam Province | |
| 125 km South West of Bishehzar, Ilam Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| ZFF4 (Length: 128 km) , Distance to epicenter: 94 km | |
| MFF6 (Length: 144 km) , Distance to epicenter: 106 km | |
| MFF7 (Length: 99 km) , Distance to epicenter: 122 km | |
| Number of Phases | 10 |
| RMS | 0.2 |
| Number of Stations | 9 |
| Error in Latitude | >5.2 km |
| Error in Longitude | 7.7 km |
| Error in Depth | 4.8 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 133779 | IIEES | ILBA | N | 1755.5 | 0.42 | 2018-06-23 00:05:40 | 2018-06-23 08:20:00 | n |
| 133780 | IIEES | ILBA | E | 1037.6 | 0.73 | 2018-06-23 00:05:50 | 2018-06-23 08:20:00 | n |
| 133781 | IIEES | GHVR | E | 31.2 | 0.92 | 2018-06-23 00:07:56 | 2018-06-23 08:20:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | ILBA | Z | Pg | E | 2018-06-23 00:05:17 | -0.19 | y | 139 | 19 | |||
| IIEES | KHMZ | Z | Pn | E | 2018-06-23 00:05:54 | -0.2 | y | 422 | 69 | |||
| IIEES | ASAO | Z | Pn | E | 2018-06-23 00:06:00 | 0.23 | y | 463 | 59 | |||
| IIEES | ZNJK | Z | Pn | E | 2018-06-23 00:06:09 | 0.02 | y | 542 | 29 | |||
| IIEES | GHVR | Z | Pn | E | 2018-06-23 00:06:11 | -0.06 | y | 561 | 65 | |||
| IIEES | GHVR | N | S | E | 2018-06-23 00:07:08 | 0.13 | y | 561 | 65 | |||
| IIEES | CHTH | Z | Pn | E | 2018-06-23 00:06:20 | -0.11 | y | 629 | 51 | |||
| IIEES | DAMV | Z | Pn | E | 2018-06-23 00:06:26 | -0.07 | y | 677 | 57 | |||
| IIEES | GRMI | Z | Pn | E | 2018-06-23 00:06:33 | 0.51 | y | 733 | 15 | |||
| IIEES | YZKH | Z | Pn | E | 2018-06-23 00:06:45 | 0.03 | y | 834 | 88 | |||
