Magnitude |
:4 |
| Date & Time (UTC) | 2018-06-23 21:37:49.5 |
| Date & Time (Local) | 1397/4/3 02:07:49.5 |

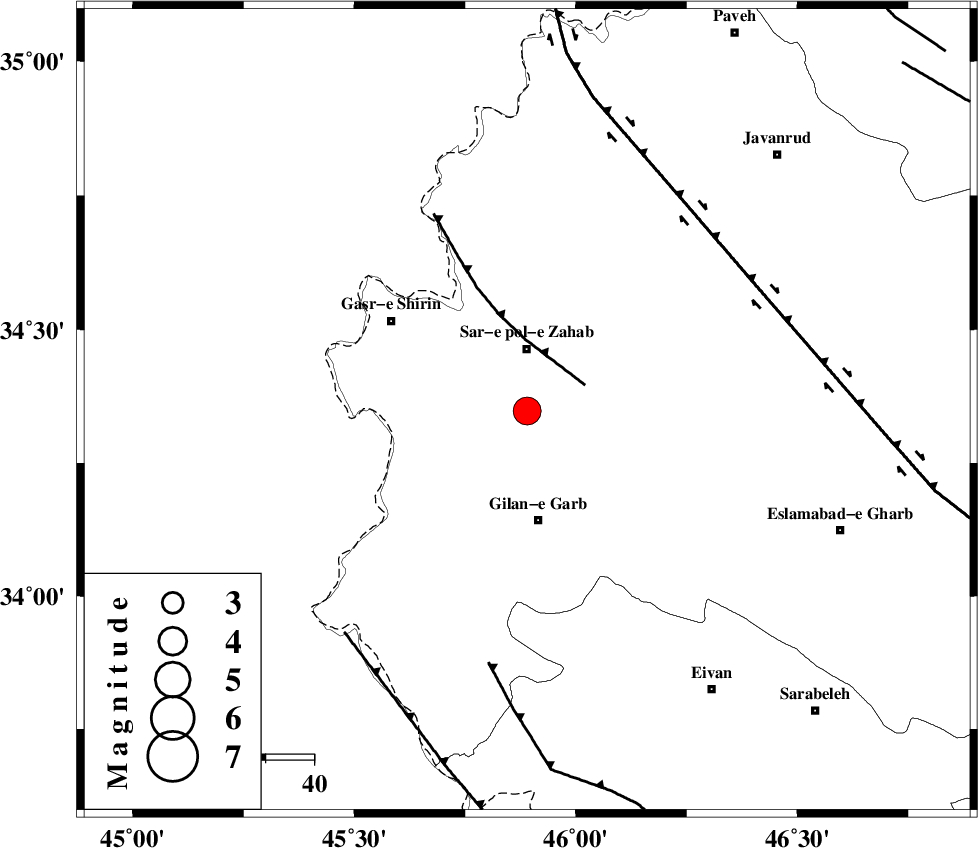

| Location | Lat:34.348 Lon: 45.89 |
| Region | Kermanshah Province, 13 km South of Sar-e pol-e zahab |
Nearest Cities |
|
| 5 km North of Chub baghan, Kermanshah Province | |
| 7 km of Tarkveys, Kermanshah Province | |
| 13 km South of Sar-e pol-e zahab, Kermanshah Province | |
| 18 km West of Rijab, Kermanshah Province | |
| 18 km South East of Qareh belagh, Kermanshah Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| MFF8 (Length: 48 km) , Distance to epicenter: 13 km | |
| MFF7 (Length: 99 km) , Distance to epicenter: 53 km | |
| HZF4 (Length: 492 km) , Distance to epicenter: 54 km | |
| Number of Phases | 15 |
| RMS | 0.4 |
| Number of Stations | 14 |
| Error in Latitude | >5.5 km |
| Error in Longitude | 3.7 km |
| Error in Depth | 0 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 133786 | IIEES | ILBA | E | 5863.7 | 0.36 | 2018-06-23 21:38:18 | 2018-06-24 07:38:00 | n |
| 133787 | IIEES | ILBA | N | 6280.6 | 0.43 | 2018-06-23 21:38:24 | 2018-06-24 07:38:00 | n |
| 133788 | IIEES | ASAO | N | 471.7 | 0.94 | 2018-06-23 21:39:55 | 2018-06-24 07:38:00 | n |
| 133789 | IIEES | ASAO | E | 141.8 | 0.47 | 2018-06-23 21:39:56 | 2018-06-24 07:38:00 | n |
| 133790 | IIEES | KHMZ | E | 146.6 | 0.54 | 2018-06-23 21:39:50 | 2018-06-24 07:38:00 | n |
| 133791 | IIEES | KHMZ | N | 109 | 0.54 | 2018-06-23 21:39:56 | 2018-06-24 07:38:00 | n |
| 133792 | IIEES | GIDE | E | 148.6 | 0.59 | 2018-06-23 21:40:11 | 2018-06-24 07:38:00 | n |
| 133793 | IIEES | GIDE | N | 180.8 | 0.76 | 2018-06-23 21:40:15 | 2018-06-24 07:38:00 | n |
| 133794 | IIEES | THKV | N | 80.1 | 0.83 | 2018-06-23 21:40:33 | 2018-06-24 07:38:00 | n |
| 133795 | IIEES | GHVR | E | 125.4 | 0.37 | 2018-06-23 21:40:24 | 2018-06-24 07:38:00 | n |
| 133796 | IIEES | GHVR | N | 100.7 | 0.74 | 2018-06-23 21:40:35 | 2018-06-24 07:38:00 | n |
| 133797 | IIEES | DAMV | N | 78.3 | 0.94 | 2018-06-23 21:40:52 | 2018-06-24 07:38:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | ILBA | Z | Pg | E | 2018-06-23 21:38:04 | 0.2 | n | 4 | 85.4 | 160 | ||
| IIEES | ZNJK | Z | Pn | E | 2018-06-23 21:38:42 | -0.21 | y | 361 | 44 | |||
| IIEES | ASAO | Z | Pn | E | 2018-06-23 21:38:45 | 0.48 | y | 381 | 85 | |||
| IIEES | KHMZ | Z | Pn | E | 2018-06-23 21:38:44 | -0.2 | y | 382 | 99 | |||
| IIEES | GIDE | Z | Pn | E | 2018-06-23 21:38:54 | 0.18 | y | 463 | 51 | |||
| IIEES | THKV | Z | Pn | E | 2018-06-23 21:38:57 | -0.33 | y | 487 | 68 | |||
| IIEES | GHVR | Z | Pn | E | 2018-06-23 21:38:58 | 0.19 | y | 492 | 87 | |||
| IIEES | CHTH | Z | Pn | E | 2018-06-23 21:39:00 | 0.15 | y | 508 | 69 | |||
| IIEES | GRMI | Z | Pn | E | 2018-06-23 21:39:02 | -0.38 | y | 526 | 19 | |||
| IIEES | MAKU | Z | Pn | E | 2018-06-23 21:39:07 | 0.38 | y | 566 | 349 | |||
| IIEES | DAMV | Z | Pn | E | 2018-06-23 21:39:08 | -0.16 | y | 573 | 74 | |||
| IIEES | AHRM | Z | Pn | E | 2018-06-23 21:39:35 | -0.54 | y | 795 | 138 | |||
| IIEES | YZKH | Z | Pn | E | 2018-06-23 21:39:42 | 0.72 | y | 838 | 103 | |||
| IIEES | SHRO | Z | Pn | E | 2018-06-23 21:39:53 | -0.52 | y | 940 | 76 | |||
| IIEES | GHIR | Z | Pn | E | 2018-06-23 21:39:52 | -2.59 | n | 4 | 952 | 133 | ||
