Magnitude |
:2.4 |
| Date & Time (UTC) | 2018-06-24 01:10:16.4 |
| Date & Time (Local) | 1397/4/3 05:40:16.4 |

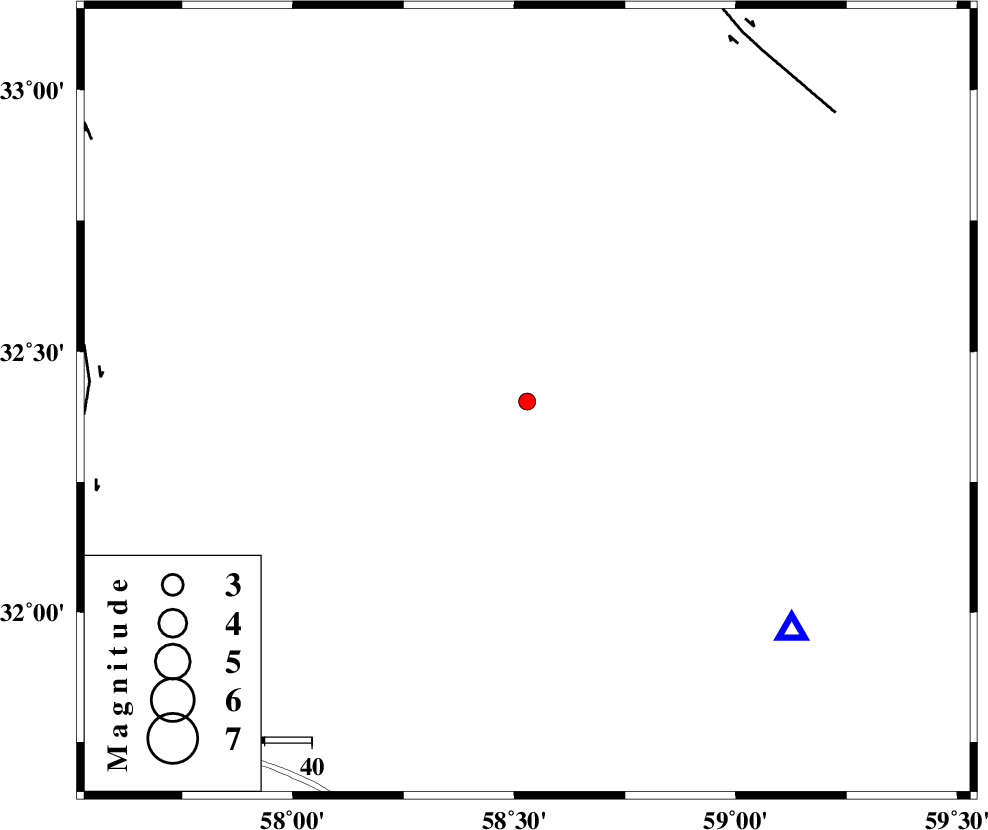

| Location | Lat:32.404 Lon: 58.529 |
| Region | Khorasan(south) Province, 86 km South-West of Birjand |
Nearest Cities |
|
| 31 km West of Hamand, Khorasan(south) Province | |
| 45 km South West of Bisheh bala, Khorasan(south) Province | |
| 49 km South West of Mazhan, Khorasan(south) Province | |
| 51 km South West of Khusef, Khorasan(south) Province | |
| 61 km South of Hur, Khorasan(south) Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| MOHAMMADABAD_F (Length: 71 km) , Distance to epicenter: 90 km | |
| NAYBAND_F (Length: 258 km) , Distance to epicenter: 93 km | |
| ESFARDIAR_F (Length: 94 km) , Distance to epicenter: 108 km | |
| Number of Phases | 7 |
| RMS | 0.2 |
| Number of Stations | 5 |
| Error in Latitude | >2.5 km |
| Error in Longitude | 2.2 km |
| Error in Depth | 6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 133802 | IIEES | TABS | N | 34.6 | 0.55 | 2018-06-24 01:11:13 | 2018-06-25 05:22:00 | n |
| 133803 | IIEES | SHRT | N | 21.1 | 0.94 | 2018-06-24 01:11:20 | 2018-06-25 05:22:00 | n |
| 133804 | IIEES | KRBR | E | 11.3 | 0.38 | 2018-06-24 01:11:57 | 2018-06-25 05:22:00 | n |
| 133805 | IIEES | YZKH | N | 7.5 | 0.38 | 2018-06-24 01:12:04 | 2018-06-25 05:22:00 | n |
| 133806 | IIEES | YZKH | E | 9.1 | 0.38 | 2018-06-24 01:12:05 | 2018-06-25 05:22:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | BSRN | Z | Pg | E | 2018-06-24 01:10:29 | -0.33 | y | 74.4 | 131 | |||
| IIEES | TABS | Z | Pg | E | 2018-06-24 01:10:47 | -0.09 | y | 191 | 317 | |||
| IIEES | TABS | N | Sg | E | 2018-06-24 01:11:10 | -0.18 | y | 191 | 317 | |||
| IIEES | SHRT | Z | Pn | E | 2018-06-24 01:10:50 | -0.18 | y | 215 | 50 | |||
| IIEES | SHRT | N | Sg | E | 2018-06-24 01:11:17 | 0.31 | y | 215 | 50 | |||
| IIEES | KRBR | Z | Pn | E | 2018-06-24 01:11:03 | 0.18 | y | 317 | 213 | |||
| IIEES | YZKH | Z | Pn | E | 2018-06-24 01:11:10 | 0.36 | y | 370 | 271 | |||
