Magnitude |
:4.6 |
| Date & Time (UTC) | 2018-06-26 17:57:04.5 |
| Date & Time (Local) | 1397/4/5 22:27:04.5 |

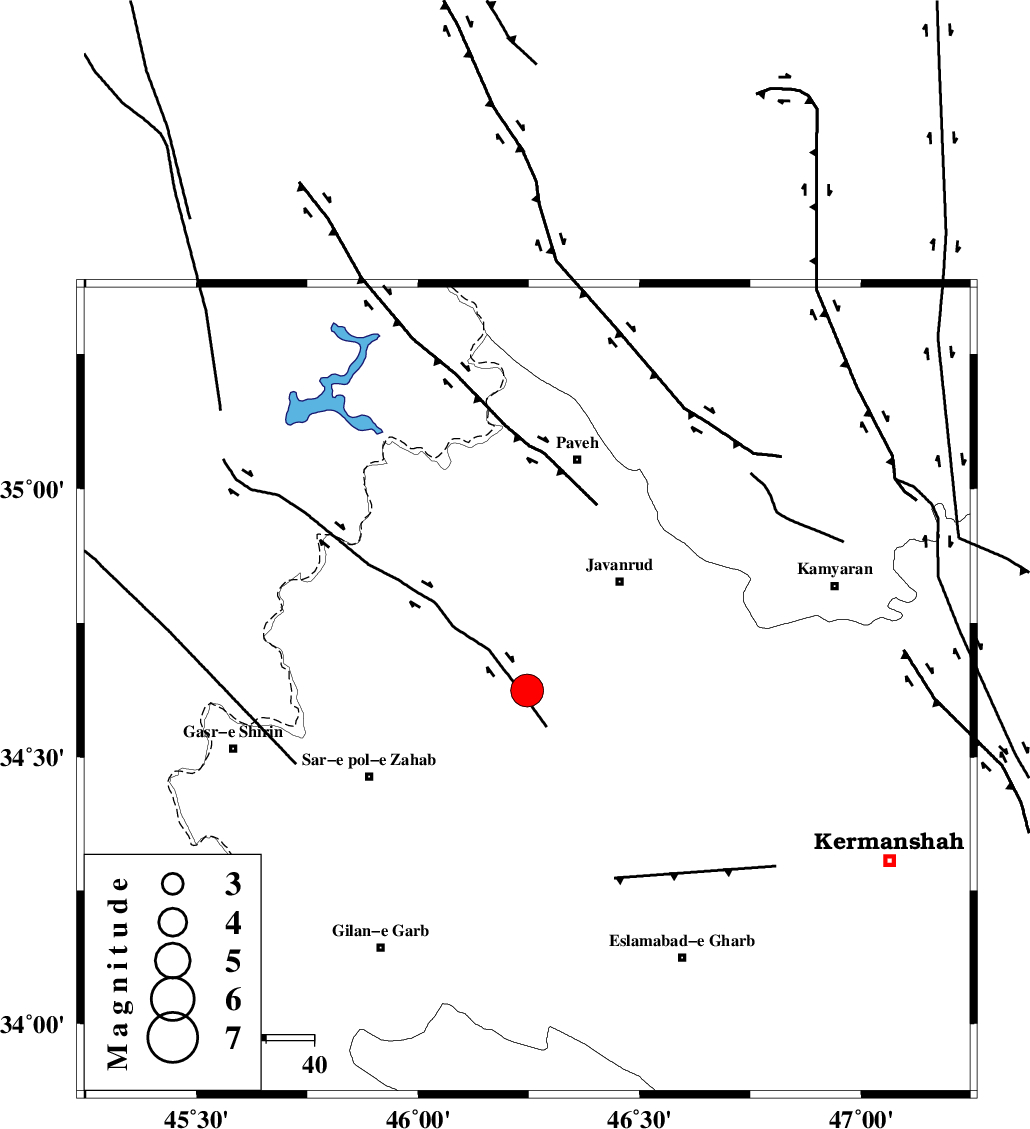

| Location | Lat:34.624 Lon: 46.246 |
| Region | Kermanshah Province, 30 km South-West of Javanrud |
Nearest Cities |
|
| 9 km of Mirabad, Kermanshah Province | |
| 13 km of Qolqoleh, Kermanshah Province | |
| 15 km North of Zavleh olia, Kermanshah Province | |
| 22 km West of Dolatabad, Kermanshah Province | |
| 24 km South West of Sarukhan, Kermanshah Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| HZF4 (Length: 492 km) , Distance to epicenter: 14 km | |
| MFF8 (Length: 48 km) , Distance to epicenter: 33 km | |
| SARTAKHT_F (Length: 78 km) , Distance to epicenter: 61 km | |
| Number of Phases | 23 |
| RMS | 0.7 |
| Number of Stations | 21 |
| Error in Latitude | >3.4 km |
| Error in Longitude | 6.1 km |
| Error in Depth | 7.8 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 133900 | IIEES | ILBA | E | 15296.4 | 0.73 | 2018-06-26 17:57:46 | 2018-06-27 06:24:00 | n |
| 133901 | IIEES | ILBA | N | 12545.7 | 0.42 | 2018-06-26 17:57:48 | 2018-06-27 06:24:00 | n |
| 133902 | IIEES | SNGE | N | 11568.8 | 0.56 | 2018-06-26 17:57:40 | 2018-06-27 06:24:00 | n |
| 133903 | IIEES | SNGE | E | 9711 | 0.56 | 2018-06-26 17:57:43 | 2018-06-27 06:24:00 | n |
| 133904 | IIEES | SRSL | E | 6370.6 | 0.52 | 2018-06-26 17:58:04 | 2018-06-27 06:24:00 | n |
| 133905 | IIEES | SRSL | N | 8270.9 | 0.65 | 2018-06-26 17:58:07 | 2018-06-27 06:24:00 | n |
| 133906 | IIEES | ASAO | N | 992.5 | 0.5 | 2018-06-26 17:58:55 | 2018-06-27 06:24:00 | n |
| 133907 | IIEES | ASAO | E | 1067.8 | 0.55 | 2018-06-26 17:58:56 | 2018-06-27 06:24:00 | n |
| 133908 | IIEES | GIDE | E | 555.5 | 0.67 | 2018-06-26 17:59:21 | 2018-06-27 06:24:00 | n |
| 133909 | IIEES | GIDE | N | 764.1 | 0.73 | 2018-06-26 17:59:22 | 2018-06-27 06:24:00 | n |
| 133910 | IIEES | THKV | N | 301.8 | 0.68 | 2018-06-26 17:59:29 | 2018-06-27 06:24:00 | n |
| 133911 | IIEES | GHVR | E | 1116.9 | 0.6 | 2018-06-26 17:59:26 | 2018-06-27 06:24:00 | n |
| 133912 | IIEES | GHVR | N | 898.2 | 0.8 | 2018-06-26 17:59:29 | 2018-06-27 06:24:00 | n |
| 133913 | IIEES | DAMV | E | 187.2 | 0.59 | 2018-06-26 17:59:57 | 2018-06-27 06:24:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | ILBA | Z | Pg | E | 2018-06-26 17:57:23 | -0.19 | y | 111 | 182 | |||
| IIEES | ILBA | N | Sg | E | 2018-06-26 17:57:36 | 0.08 | y | 111 | 182 | |||
| IIEES | SNGE | Z | Pg | E | 2018-06-26 17:57:22 | -1.21 | y | 113 | 62 | |||
| IIEES | SNGE | N | Sg | E | 2018-06-26 17:57:37 | -0.53 | y | 113 | 62 | |||
| IIEES | SRSL | Z | Pg | E | 2018-06-26 17:57:35 | -0.93 | y | 191 | 338 | |||
| IIEES | ZNJK | Z | Pn | E | 2018-06-26 17:57:52 | 0.64 | y | 317 | 44 | |||
| IIEES | ASAO | Z | Pn | E | 2018-06-26 17:57:55 | 0.25 | y | 347 | 90 | |||
| IIEES | KHMZ | Z | Pn | E | 2018-06-26 17:57:56 | -0.08 | y | 357 | 105 | |||
| IIEES | GIDE | Z | Pn | E | 2018-06-26 17:58:05 | 0.96 | y | 418 | 51 | |||
| IIEES | THKV | Z | Pn | E | 2018-06-26 17:58:07 | 0.18 | y | 445 | 70 | |||
| IIEES | GHVR | Z | Pn | E | 2018-06-26 17:58:09 | -0.09 | y | 459 | 91 | |||
| IIEES | CHTH | Z | Pn | E | 2018-06-26 17:58:11 | 0.79 | y | 466 | 71 | |||
| IIEES | GRMI | Z | Pn | E | 2018-06-26 17:58:12 | 0.26 | y | 487 | 17 | |||
| IIEES | DAMV | Z | Pn | E | 2018-06-26 17:58:18 | 0.08 | y | 534 | 76 | |||
| IIEES | MAKU | Z | Pn | E | 2018-06-26 17:58:20 | 0.65 | y | 543 | 346 | |||
| IIEES | NASN | Z | Pn | E | 2018-06-26 17:58:31 | -0.25 | y | 641 | 107 | |||
| IIEES | AHRM | Z | Pn | E | 2018-06-26 17:58:50 | -1.04 | y | 798 | 142 | |||
| IIEES | SHRO | Z | Pn | E | 2018-06-26 17:59:04 | 0.42 | y | 901 | 77 | |||
| IIEES | MRVT | Z | Pn | E | 2018-06-26 17:59:11 | 1.59 | y | 947 | 66 | |||
| IIEES | TABS | Z | Pn | E | 2018-06-26 17:59:17 | 0.31 | y | 1008 | 93 | |||
| IIEES | BJRD | Z | Pn | E | 2018-06-26 17:59:24 | 0.62 | y | 1060 | 68 | |||
| IIEES | KRBR | Z | Pn | E | 2018-06-26 17:59:29 | -0.9 | y | 1115 | 115 | |||
| IIEES | BSRN | Z | Pn | E | 2018-06-26 17:59:45 | 0.21 | y | 1234 | 100 | |||
