Magnitude |
:2.8 |
| Date & Time (UTC) | 2018-06-27 19:38:44.3 |
| Date & Time (Local) | 1397/4/7 00:08:44.3 |

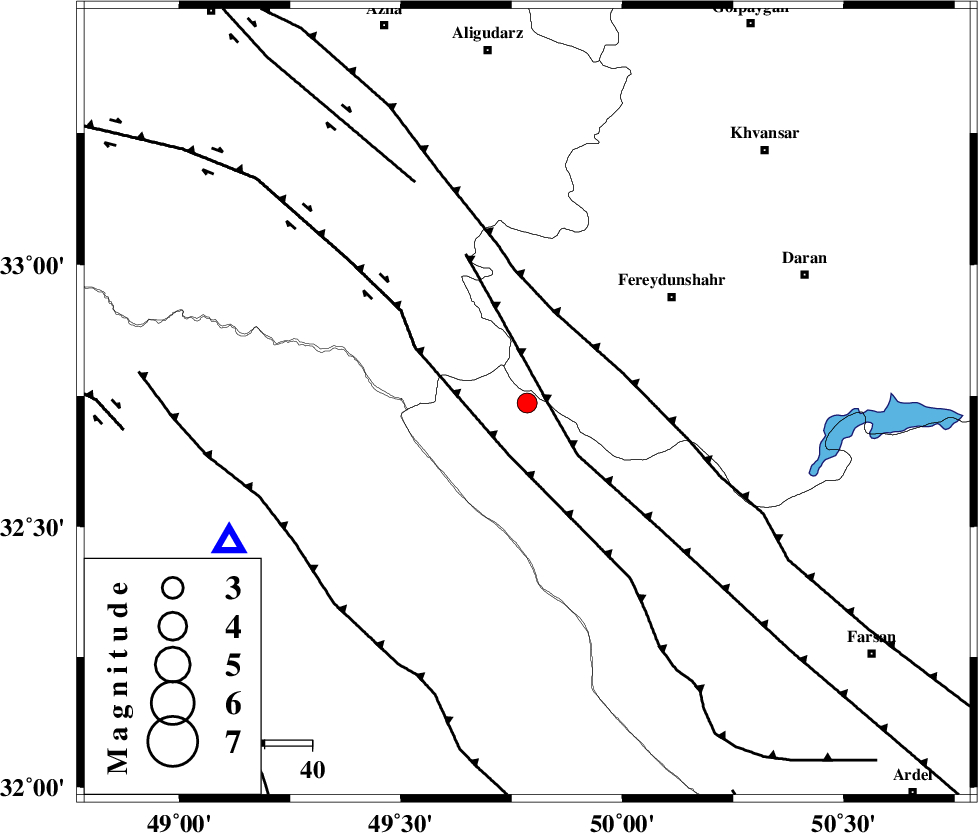

| Location | Lat:32.736 Lon: 49.785 |
| Region | Chaharmahal Bakhtiari Province, 38 km South-West of Fereydunshahr |
Nearest Cities |
|
| 9 km North of Durak, Chaharmahal Bakhtiari Province | |
| 14 km South of Masir, Esfahan Province | |
| 31 km South West of Sibak, Esfahan Province | |
| 34 km South East of Parchal, Lorestan Province | |
| 38 km South West of Fereydunshahr, Esfahan Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| ARDAL_F (Length: 170 km) , Distance to epicenter: 6 km | |
| ZARDKUH_F (Length: 139 km) , Distance to epicenter: 12 km | |
| MAIN_ZAGROS_R_F (Length: 1106 km) , Distance to epicenter: 20 km | |
| Number of Phases | 10 |
| RMS | 0.5 |
| Number of Stations | 10 |
| Error in Latitude | >5.6 km |
| Error in Longitude | 4.6 km |
| Error in Depth | 0 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 134004 | IIEES | KHMZ | N | 199.5 | 0.47 | 2018-06-27 19:39:19 | 2018-06-30 07:01:00 | n |
| 134005 | IIEES | KHMZ | E | 250.7 | 0.47 | 2018-06-27 19:39:27 | 2018-06-30 07:01:00 | n |
| 134006 | IIEES | ASAO | N | 97.6 | 0.71 | 2018-06-27 19:39:52 | 2018-06-30 07:01:00 | n |
| 134007 | IIEES | ASAO | E | 90.2 | 0.33 | 2018-06-27 19:39:54 | 2018-06-30 07:01:00 | n |
| 134008 | IIEES | GHVR | N | 79.7 | 0.38 | 2018-06-27 19:39:56 | 2018-06-30 07:01:00 | n |
| 134009 | IIEES | GHVR | E | 95.8 | 0.38 | 2018-06-27 19:39:58 | 2018-06-30 07:01:00 | n |
| 134010 | IIEES | NASN | N | 20 | 0.51 | 2018-06-27 19:40:06 | 2018-06-30 07:01:00 | n |
| 134011 | IIEES | SNGE | E | 23.5 | 0.53 | 2018-06-27 19:40:35 | 2018-06-30 07:01:00 | n |
| 134012 | IIEES | SNGE | N | 32 | 0.65 | 2018-06-27 19:40:37 | 2018-06-30 07:01:00 | n |
| 134013 | IIEES | THKV | N | 11 | 0.4 | 2018-06-27 19:40:35 | 2018-06-30 07:01:00 | n |
| 134014 | IIEES | THKV | E | 19.8 | 0.57 | 2018-06-27 19:40:39 | 2018-06-30 07:01:00 | n |
| 134015 | IIEES | CHTH | E | 8.4 | 0.42 | 2018-06-27 19:40:40 | 2018-06-30 07:01:00 | n |
| 134016 | IIEES | CHTH | N | 8.3 | 0.55 | 2018-06-27 19:40:43 | 2018-06-30 07:01:00 | n |
| 134017 | IIEES | DAMV | N | 15.3 | 0.47 | 2018-06-27 19:40:34 | 2018-06-30 07:01:00 | n |
| 134018 | IIEES | DAMV | E | 15.8 | 0.63 | 2018-06-27 19:40:43 | 2018-06-30 07:01:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | KHMZ | Z | Pg | E | 2018-06-27 19:39:01 | -1.56 | n | 4 | 113 | 8 | ||
| IIEES | ASAO | Z | Pn | E | 2018-06-27 19:39:17 | 0.03 | y | 202 | 6 | |||
| IIEES | GHVR | Z | Pn | E | 2018-06-27 19:39:21 | -0.02 | y | 236 | 35 | |||
| IIEES | NASN | Z | Pn | E | 2018-06-27 19:39:26 | -0.91 | y | 283 | 88 | |||
| IIEES | SNGE | Z | Pn | E | 2018-06-27 19:39:34 | -0.56 | y | 345 | 320 | |||
| IIEES | THKV | Z | Pn | E | 2018-06-27 19:39:38 | 0.85 | y | 367 | 16 | |||
| IIEES | CHTH | Z | Pn | E | 2018-06-27 19:39:38 | 0.18 | y | 373 | 19 | |||
| IIEES | DAMV | Z | Pn | E | 2018-06-27 19:39:39 | 0.17 | y | 379 | 32 | |||
| IIEES | AHRM | Z | Pn | E | 2018-06-27 19:39:48 | 0.67 | y | 453 | 161 | |||
| IIEES | SRSL | Z | Pn | E | 2018-06-27 19:40:00 | -0.23 | y | 555 | 315 | |||
