Magnitude |
:3.1 |
| Date & Time (UTC) | 2018-06-29 23:16:01.5 |
| Date & Time (Local) | 1397/4/9 03:46:01.5 |

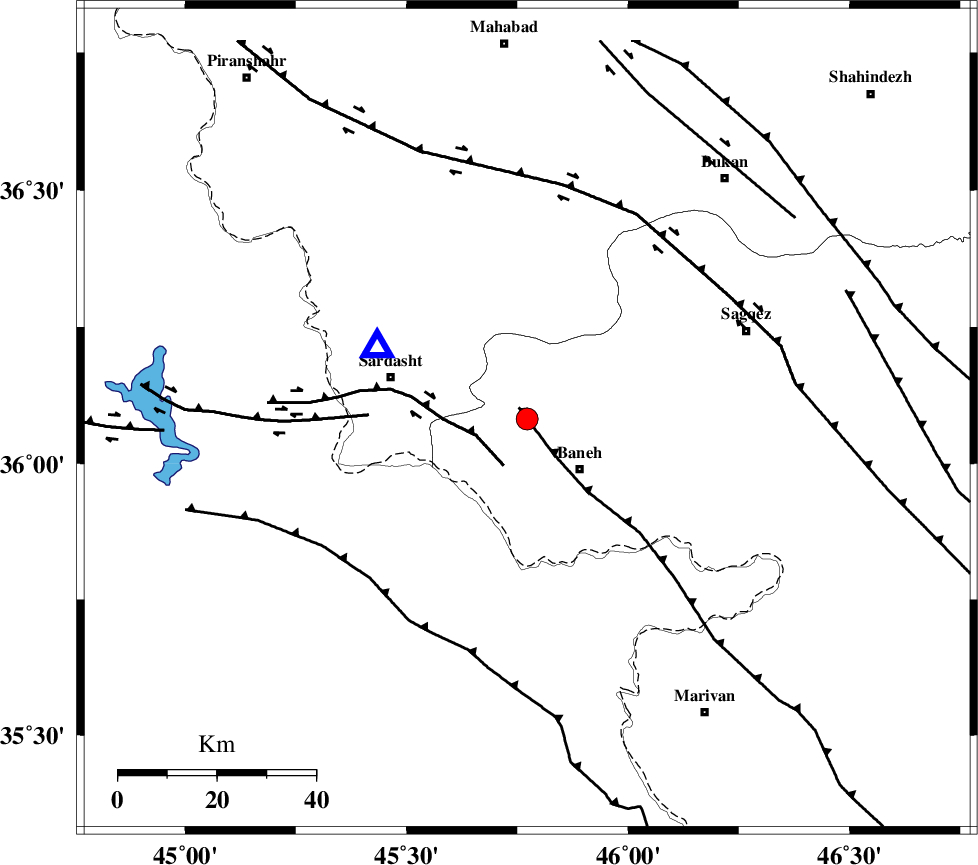

| Location | Lat:36.081 Lon: 45.772 |
| Region | Kurdistan Province, 15 km -West of Baneh |
Nearest Cities |
|
| 1 km North of Kanisur, Kurdistan Province | |
| 5 km of Kukhan, Kurdistan Province | |
| 9 km North of Shoy, Kurdistan Province | |
| 13 km North of Bolhasan, Kurdistan Province | |
| 15 km North West of Baneh, Kurdistan Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| PIRANSHAHR_F (Length: 253 km) , Distance to epicenter: 12 km | |
| HZF4 (Length: 492 km) , Distance to epicenter: 57 km | |
| TAKHT_E_SOLAIMAN (Length: 63 km) , Distance to epicenter: 146 km | |
| Number of Phases | 11 |
| RMS | 0.3 |
| Number of Stations | 9 |
| Error in Latitude | >4 km |
| Error in Longitude | 3.8 km |
| Error in Depth | 8.6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 134112 | IIEES | SRSL | N | 2472 | 0.29 | 2018-06-29 23:16:15 | 2018-07-01 11:07:00 | n |
| 134113 | IIEES | SRSL | E | 3446.9 | 0.26 | 2018-06-29 23:16:15 | 2018-07-01 11:07:00 | n |
| 134114 | IIEES | SNGE | E | 140.6 | 0.49 | 2018-06-29 23:16:43 | 2018-07-01 11:07:00 | n |
| 134115 | IIEES | SNGE | N | 152.5 | 0.63 | 2018-06-29 23:16:43 | 2018-07-01 11:07:00 | n |
| 134116 | IIEES | GIDE | E | 41 | 0.78 | 2018-06-29 23:17:56 | 2018-07-01 11:07:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | SRSL | Z | Pg | E | 2018-06-29 23:16:07 | -0.55 | y | 33.7 | 296 | |||
| IIEES | SRSL | N | Sg | E | 2018-06-29 23:16:13 | 0.31 | y | 33.7 | 296 | |||
| IIEES | SNGE | Z | Pg | E | 2018-06-29 23:16:13 | -17.9 | n | 4 | 180 | 127 | ||
| IIEES | ZNJK | Z | Pn | E | 2018-06-29 23:16:43 | 0.31 | y | 269 | 75 | |||
| IIEES | GRMI | Z | Pn | E | 2018-06-29 23:16:53 | 0.2 | y | 356 | 31 | |||
| IIEES | GRMI | N | Sg | E | 2018-06-29 23:17:41 | -0.27 | y | 356 | 31 | |||
| IIEES | MAKU | Z | Pn | E | 2018-06-29 23:16:56 | 0.18 | y | 376 | 346 | |||
| IIEES | GIDE | Z | Pn | E | 2018-06-29 23:16:56 | -0.06 | y | 382 | 75 | |||
| IIEES | ASAO | Z | Pn | E | 2018-06-29 23:17:02 | 0.3 | y | 422 | 113 | |||
| IIEES | KHMZ | Z | Pn | E | 2018-06-29 23:17:06 | -0.49 | y | 463 | 123 | |||
| IIEES | GHVR | Z | Pn | E | 2018-06-29 23:17:14 | 0.05 | y | 529 | 108 | |||
