Magnitude |
:3.3 |
| Date & Time (UTC) | 2018-07-06 14:25:54.5 |
| Date & Time (Local) | 1397/4/15 18:55:54.5 |

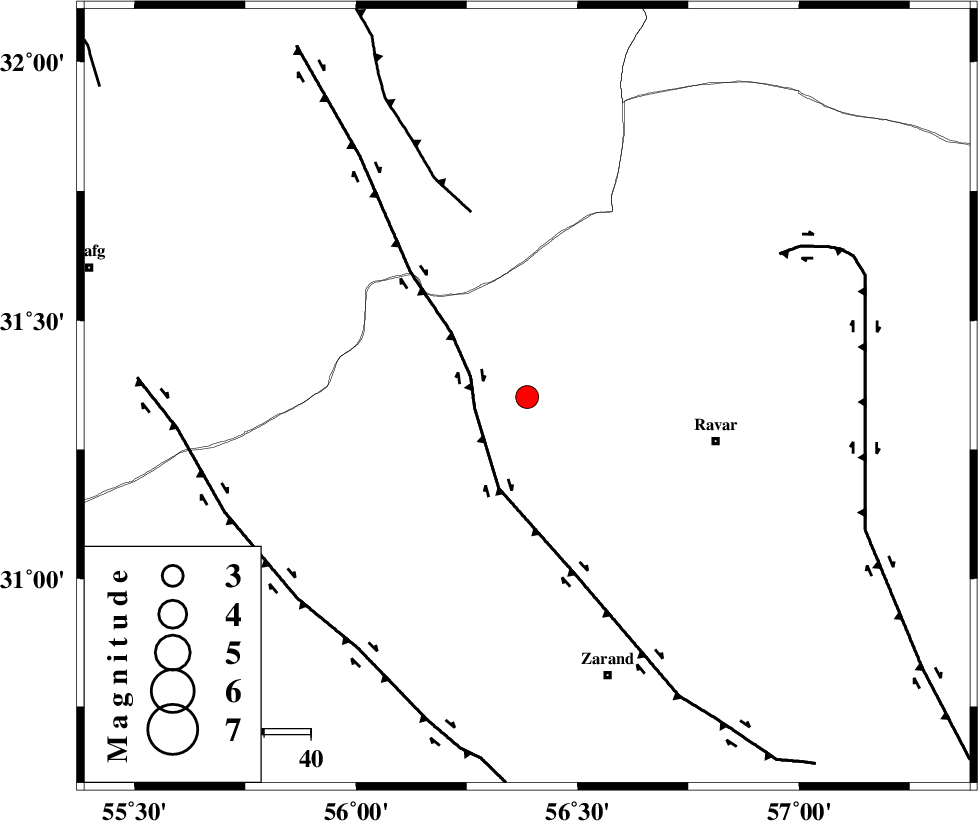

| Location | Lat:31.352 Lon: 56.386 |
| Region | Kerman Province, 42 km -West of Ravar |
Nearest Cities |
|
| 10 km East of Jor, Kerman Province | |
| 11 km of Kuhbanan, Kerman Province | |
| 23 km North of Toghroljerd, Kerman Province | |
| 36 km North West of Dasht-e khak, Kerman Province | |
| 38 km South East of Asfih, Yazd Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| KUHBANAN_F (Length: 189 km) , Distance to epicenter: 11 km | |
| JAFARABAD_F (Length: 60 km) , Distance to epicenter: 41 km | |
| LAKARKUH_F (Length: 138 km) , Distance to epicenter: 62 km | |
| Number of Phases | 13 |
| RMS | 0.3 |
| Number of Stations | 11 |
| Error in Latitude | >2.5 km |
| Error in Longitude | 2.9 km |
| Error in Depth | 7.7 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 134212 | IIEES | KRBR | E | 388.7 | 0.36 | 2018-07-06 14:26:46 | 2018-07-07 05:29:00 | n |
| 134213 | IIEES | BSRN | N | 107.7 | 0.52 | 2018-07-06 14:27:12 | 2018-07-07 05:29:00 | n |
| 134214 | IIEES | NASN | E | 58.4 | 0.49 | 2018-07-06 14:27:43 | 2018-07-07 05:29:00 | n |
| 134215 | IIEES | SHRO | E | 18 | 0.47 | 2018-07-06 14:28:23 | 2018-07-07 05:29:00 | n |
| 134216 | IIEES | SHRO | N | 15.3 | 0.24 | 2018-07-06 14:28:40 | 2018-07-07 05:29:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | KRBR | Z | Pg | E | 2018-07-06 14:26:20 | -0.25 | y | 156 | 167 | |||
| IIEES | KRBR | E | Sg | E | 2018-07-06 14:26:39 | 0.22 | y | 156 | 167 | |||
| IIEES | TABS | Z | Pn | E | 2018-07-06 14:26:35 | -0.04 | y | 264 | 15 | |||
| IIEES | BSRN | Z | Pn | E | 2018-07-06 14:26:35 | -0.14 | y | 269 | 75 | |||
| IIEES | BSRN | N | Sg | E | 2018-07-06 14:27:10 | -0.1 | y | 269 | 75 | |||
| IIEES | NASN | Z | Pn | E | 2018-07-06 14:26:48 | -0.42 | y | 374 | 296 | |||
| IIEES | SHRT | Z | Pn | E | 2018-07-06 14:26:58 | 0.62 | y | 447 | 54 | |||
| IIEES | ZHSF | Z | Pn | E | 2018-07-06 14:26:59 | 0 | y | 463 | 113 | |||
| IIEES | GHIR | Z | Pn | E | 2018-07-06 14:27:01 | 0 | y | 473 | 225 | |||
| IIEES | SHRO | Z | Pn | E | 2018-07-06 14:27:06 | -0.36 | y | 518 | 356 | |||
| IIEES | DAMV | Z | Pn | E | 2018-07-06 14:27:20 | 0.39 | y | 627 | 320 | |||
| IIEES | ASAO | Z | Pn | E | 2018-07-06 14:27:28 | 0.21 | y | 692 | 302 | |||
| IIEES | CHTH | Z | Pn | E | 2018-07-06 14:27:30 | 0.29 | y | 702 | 317 | |||
