Magnitude |
:2.1 |
| Date & Time (UTC) | 2018-07-06 16:21:50.0 |
| Date & Time (Local) | 1397/4/15 20:51:50.0 |

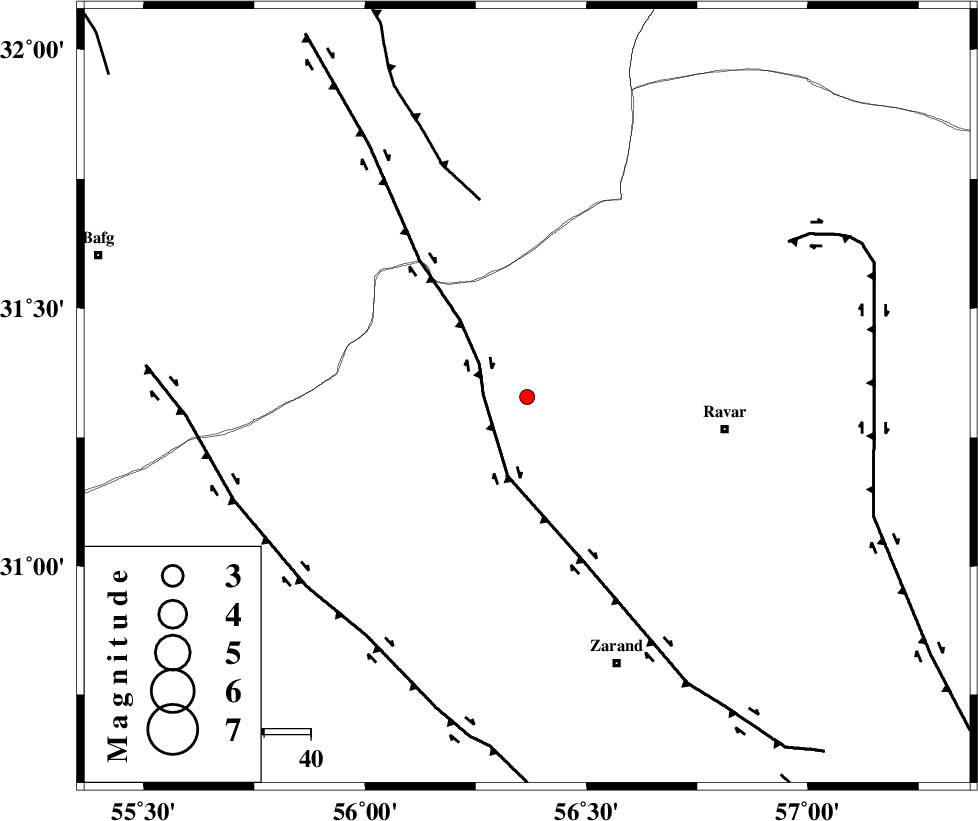

| Location | Lat:31.328 Lon: 56.366 |
| Region | Kerman Province, 43 km -West of Ravar |
Nearest Cities |
|
| 9 km of Jor, Kerman Province | |
| 12 km of Kuhbanan, Kerman Province | |
| 20 km North of Toghroljerd, Kerman Province | |
| 35 km North West of Dasht-e khak, Kerman Province | |
| 40 km South East of Basab, Yazd Province | |
| Depth | 18 km |
| Agency | |
Faults within 150 km: |
|
| KUHBANAN_F (Length: 189 km) , Distance to epicenter: 9 km | |
| JAFARABAD_F (Length: 60 km) , Distance to epicenter: 44 km | |
| DARIVAN_F (Length: 131 km) , Distance to epicenter: 62 km | |
| Number of Phases | 5 |
| RMS | 0.2 |
| Number of Stations | 4 |
| Error in Latitude | >4.2 km |
| Error in Longitude | 4.7 km |
| Error in Depth | 9.6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 134217 | IIEES | KRBR | E | 30.4 | 0.36 | 2018-07-06 16:22:42 | 2018-07-07 05:29:00 | n |
| 134218 | IIEES | KRBR | N | 34.1 | 0.19 | 2018-07-06 16:22:43 | 2018-07-07 05:29:00 | n |
| 134219 | IIEES | TABS | N | 7.1 | 0.37 | 2018-07-06 16:23:15 | 2018-07-07 05:29:00 | n |
| 134220 | IIEES | BSRN | N | 8.4 | 0.37 | 2018-07-06 16:23:15 | 2018-07-07 05:29:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | KRBR | Z | Pg | E | 2018-07-06 16:22:15 | -0.01 | y | 154 | 166 | |||
| IIEES | TABS | Z | Pn | E | 2018-07-06 16:22:30 | -0.26 | y | 267 | 15 | |||
| IIEES | BSRN | Z | Pn | E | 2018-07-06 16:22:31 | -0.05 | y | 271 | 74 | |||
| IIEES | BSRN | N | Sg | E | 2018-07-06 16:23:06 | 0.05 | y | 271 | 74 | |||
| IIEES | SHRO | Z | Pn | E | 2018-07-06 16:23:02 | 0.42 | y | 520 | 356 | |||
