Magnitude |
:3 |
| Date & Time (UTC) | 2018-07-05 19:07:34.0 |
| Date & Time (Local) | 1397/4/14 23:37:34.0 |

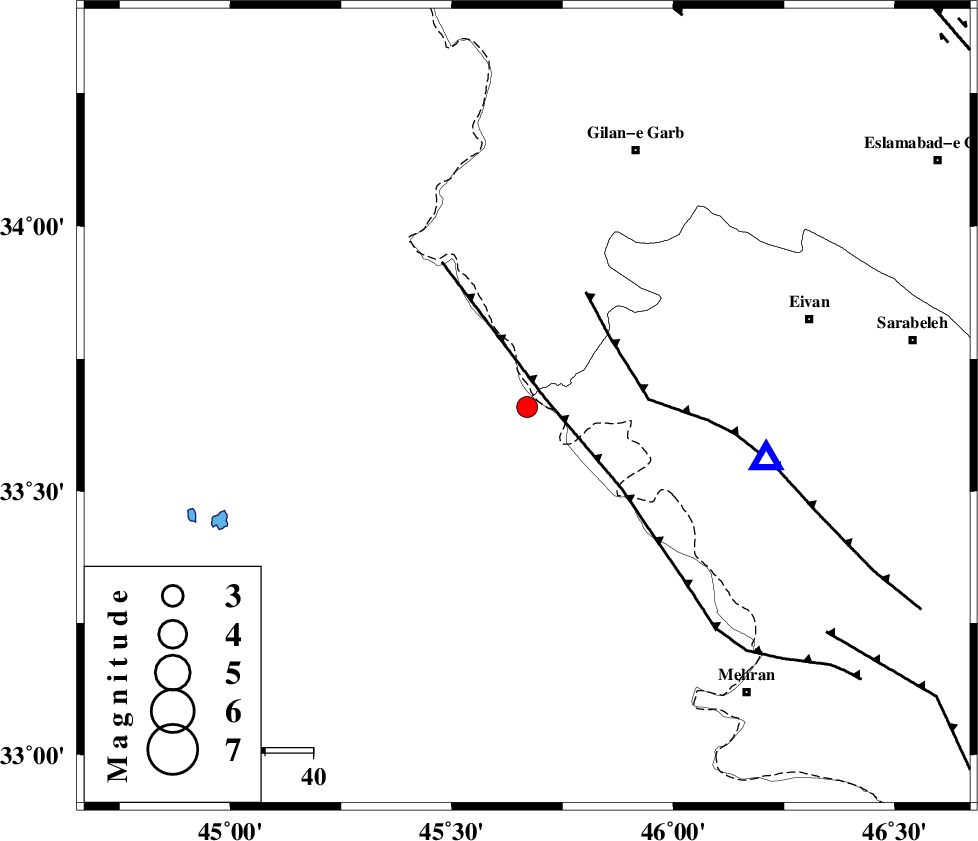

| Location | Lat:33.659 Lon: 45.67 |
| Region | Iraq, 58 km South-West of Gilan-E-Gharb |
Nearest Cities |
|
| 25 km South of Sumar, Kermanshah Province | |
| 49 km South West of Nian, Kermanshah Province | |
| 52 km North West of Salehabad, Ilam Province | |
| 53 km South West of Teran, Ilam Province | |
| 55 km West of Chavar, Ilam Province | |
| Depth | 16 km |
| Agency | |
Faults within 150 km: |
|
| ZFF4 (Length: 128 km) , Distance to epicenter: 4 km | |
| MFF7 (Length: 99 km) , Distance to epicenter: 23 km | |
| MFF6 (Length: 144 km) , Distance to epicenter: 78 km | |
| Number of Phases | 7 |
| RMS | 0.1 |
| Number of Stations | 6 |
| Error in Latitude | >6.9 km |
| Error in Longitude | 6.1 km |
| Error in Depth | 4.6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 134290 | IIEES | SNGE | E | 98 | 0.69 | 2018-07-05 19:08:26 | 2018-07-07 09:05:00 | n |
| 134291 | IIEES | SNGE | N | 95.6 | 0.69 | 2018-07-05 19:08:33 | 2018-07-07 09:05:00 | n |
| 134292 | IIEES | GHVR | E | 7.6 | 0.5 | 2018-07-05 19:10:16 | 2018-07-07 09:05:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | ILBA | Z | Pg | E | 2018-07-05 19:07:43 | 0.03 | y | 50 | 94 | |||
| IIEES | ILBA | N | Sg | E | 2018-07-05 19:07:49 | -0.02 | y | 50 | 94 | |||
| IIEES | SNGE | Z | Pn | E | 2018-07-05 19:07:53 | -15.4 | n | 4 | 221 | 44 | ||
| IIEES | KHMZ | Z | Pn | E | 2018-07-05 19:08:30 | -0.16 | y | 398 | 88 | |||
| IIEES | ASAO | Z | Pn | E | 2018-07-05 19:08:33 | 0.17 | y | 414 | 75 | |||
| IIEES | GHVR | Z | Pn | E | 2018-07-05 19:08:46 | 0.06 | y | 523 | 78 | |||
| IIEES | GRMI | Z | Pn | E | 2018-07-05 19:08:56 | -0.07 | y | 605 | 19 | |||
