Magnitude |
:3.2 |
| Date & Time (UTC) | 2018-07-09 16:15:03.1 |
| Date & Time (Local) | 1397/4/18 20:45:03.1 |

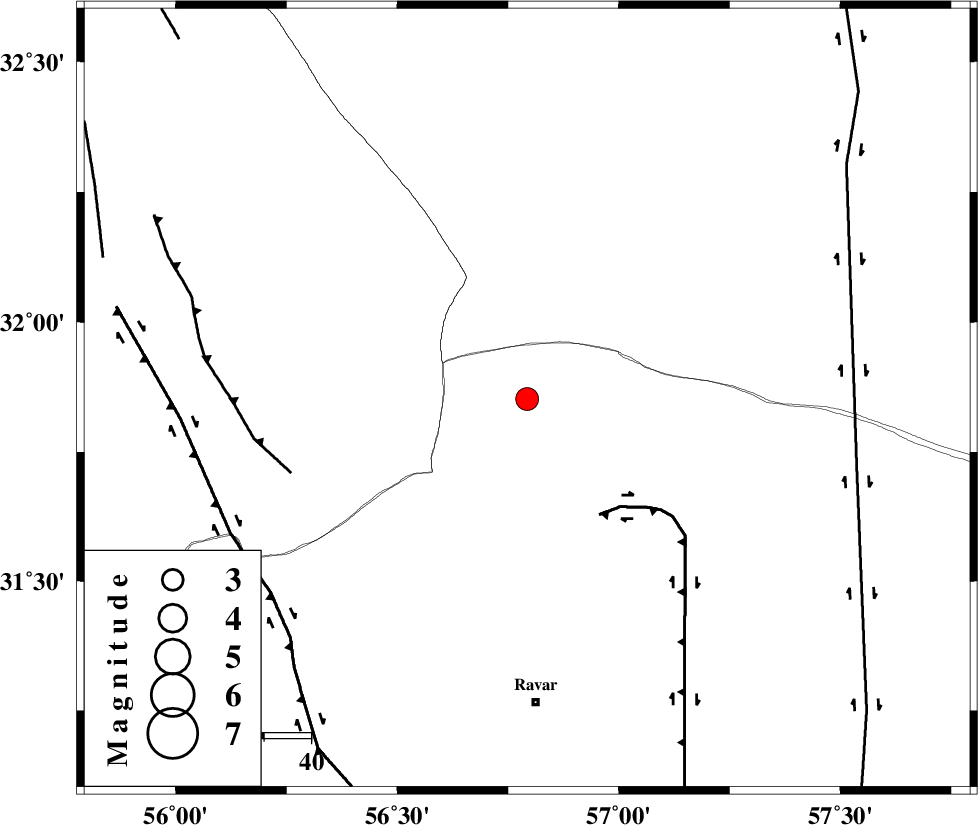

| Location | Lat:31.852 Lon: 56.793 |
| Region | Kerman Province, 65 km North of Ravar |
Nearest Cities |
|
| 57 km North East of Asfih, Yazd Province | |
| 59 km North of Dehali, Kerman Province | |
| 65 km North of Ravar, Kerman Province | |
| 68 km North East of Kuhbanan, Kerman Province | |
| 68 km North East of Benestan, Yazd Province | |
| Depth | 16 km |
| Agency | |
Faults within 150 km: |
|
| LAKARKUH_F (Length: 138 km) , Distance to epicenter: 29 km | |
| JAFARABAD_F (Length: 60 km) , Distance to epicenter: 53 km | |
| KUHBANAN_F (Length: 189 km) , Distance to epicenter: 69 km | |
| Number of Phases | 9 |
| RMS | 0.2 |
| Number of Stations | 7 |
| Error in Latitude | >2.3 km |
| Error in Longitude | 2.9 km |
| Error in Depth | 7 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 134349 | IIEES | TABS | N | 212.5 | 0.47 | 2018-07-09 16:16:06 | 2018-07-10 07:24:00 | n |
| 134350 | IIEES | KRBR | E | 201.4 | 0.31 | 2018-07-09 16:16:03 | 2018-07-10 07:24:00 | n |
| 134351 | IIEES | KRBR | N | 252.6 | 0.62 | 2018-07-09 16:16:08 | 2018-07-10 07:24:00 | n |
| 134352 | IIEES | BSRN | N | 97.8 | 0.28 | 2018-07-09 16:16:08 | 2018-07-10 07:24:00 | n |
| 134353 | IIEES | SHRT | N | 32.5 | 0.88 | 2018-07-09 16:17:00 | 2018-07-10 07:24:00 | n |
| 134354 | IIEES | SHRO | E | 22.8 | 0.55 | 2018-07-09 16:17:25 | 2018-07-10 07:24:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | TABS | Z | Pn | E | 2018-07-09 16:15:35 | 0.24 | y | 202 | 9 | |||
| IIEES | KRBR | Z | Pn | E | 2018-07-09 16:15:36 | 0.2 | y | 207 | 181 | |||
| IIEES | KRBR | N | Sg | E | 2018-07-09 16:16:02 | 0.01 | y | 207 | 181 | |||
| IIEES | BSRN | Z | Pn | E | 2018-07-09 16:15:38 | 0.28 | y | 221 | 86 | |||
| IIEES | BSRN | N | Sg | E | 2018-07-09 16:16:05 | -0.01 | y | 221 | 86 | |||
| IIEES | SHRT | Z | Pn | E | 2018-07-09 16:15:58 | -0.12 | y | 383 | 58 | |||
| IIEES | NASN | Z | Pn | E | 2018-07-09 16:15:59 | -0.12 | y | 390 | 287 | |||
| IIEES | ZHSF | Z | Pn | E | 2018-07-09 16:16:06 | -0.51 | y | 455 | 122 | |||
| IIEES | SHRO | Z | Pn | E | 2018-07-09 16:16:08 | -0.22 | y | 467 | 351 | |||
