Magnitude |
:3.2 |
| Date & Time (UTC) | 2018-07-12 21:49:46.8 |
| Date & Time (Local) | 1397/4/22 02:19:46.8 |

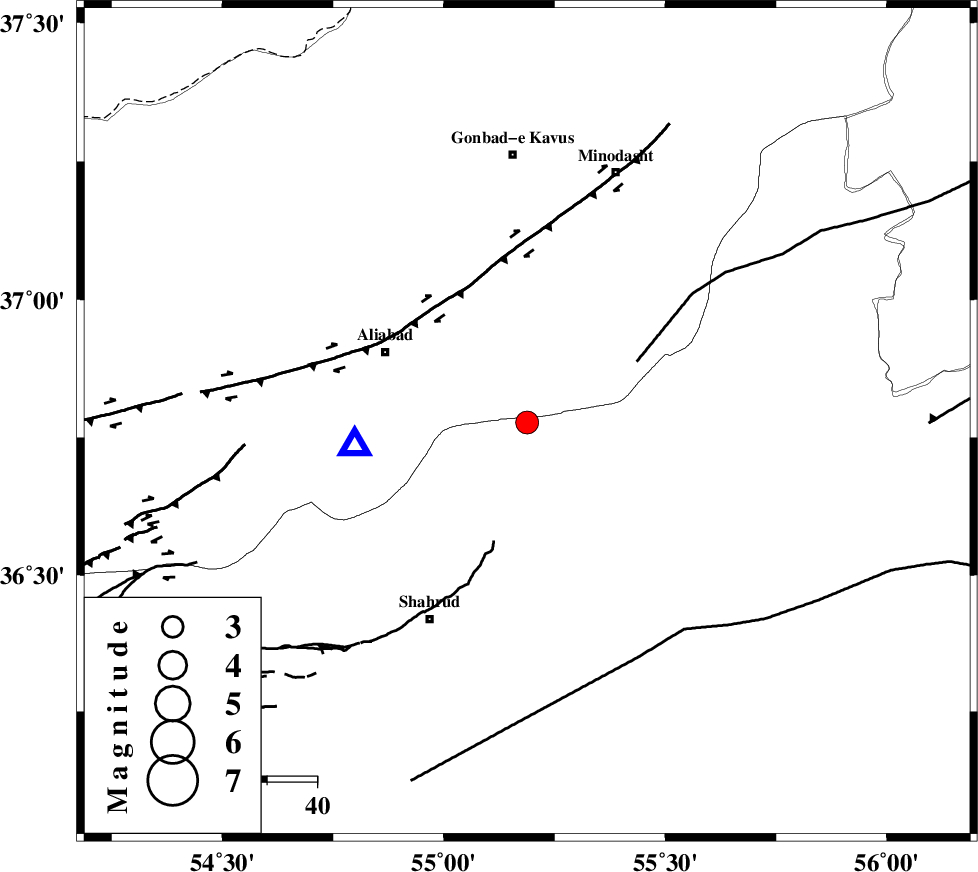

| Location | Lat:36.777 Lon: 55.188 |
| Region | Semnan Province, 27 km South of Ramian |
Nearest Cities |
|
| 16 km North West of Kalateh khanj, Semnan Province | |
| 17 km North of Qaleh-ye nokharqan, Semnan Province | |
| 27 km South of Ramian, Golestan Province | |
| 29 km South West of Farsian, Golestan Province | |
| 31 km South East of Deland, Golestan Province | |
| Depth | 7 km |
| Agency | |
Faults within 150 km: |
|
| SHAVAR_F (Length: 87 km) , Distance to epicenter: 2 km | |
| ROBATE_QARABIL_F (Length: 168 km) , Distance to epicenter: 25 km | |
| KHAZAR_F (Length: 523 km) , Distance to epicenter: 32 km | |
| Number of Phases | 12 |
| RMS | 0.4 |
| Number of Stations | 11 |
| Error in Latitude | >3.3 km |
| Error in Longitude | 3.7 km |
| Error in Depth | 7.1 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 134444 | IIEES | GHVR | N | 21 | 0.35 | 2018-07-12 21:51:58 | 2018-07-14 06:04:00 | n |
| 134445 | IIEES | GHVR | E | 28.2 | 0.44 | 2018-07-12 21:51:59 | 2018-07-14 06:04:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | SHRO | Z | Pg | E | 2018-07-12 21:50:06 | 0.02 | y | 113 | 139 | |||
| IIEES | MRVT | Z | Pg | E | 2018-07-12 21:50:08 | 0.06 | y | 126 | 39 | |||
| IIEES | BJRD | Z | Pn | E | 2018-07-12 21:50:23 | 0.39 | y | 222 | 62 | |||
| IIEES | BJRD | N | Sg | E | 2018-07-12 21:50:52 | -0.17 | y | 222 | 62 | |||
| IIEES | DAMV | Z | Pn | E | 2018-07-12 21:50:35 | 0.48 | y | 316 | 247 | |||
| IIEES | CHTH | Z | Pn | E | 2018-07-12 21:50:42 | 0.06 | y | 377 | 256 | |||
| IIEES | TABS | Z | P | E | 2018-07-12 21:50:43 | 0.24 | y | 389 | 153 | |||
| IIEES | THKV | Z | Pn | E | 2018-07-12 21:50:44 | -0.66 | y | 398 | 257 | |||
| IIEES | GHVR | Z | Pn | E | 2018-07-12 21:50:50 | 0.29 | y | 439 | 236 | |||
| IIEES | SHRT | Z | Pn | E | 2018-07-12 21:51:06 | -0.39 | y | 580 | 125 | |||
| IIEES | BSRN | Z | Pn | E | 2018-07-12 21:51:14 | -0.53 | y | 645 | 145 | |||
| IIEES | GRMI | Z | Pn | E | 2018-07-12 21:51:19 | -0.39 | y | 681 | 292 | |||
