Magnitude |
:2.1 |
| Date & Time (UTC) | 2018-07-15 12:33:18.6 |
| Date & Time (Local) | 1397/4/24 17:03:18.6 |

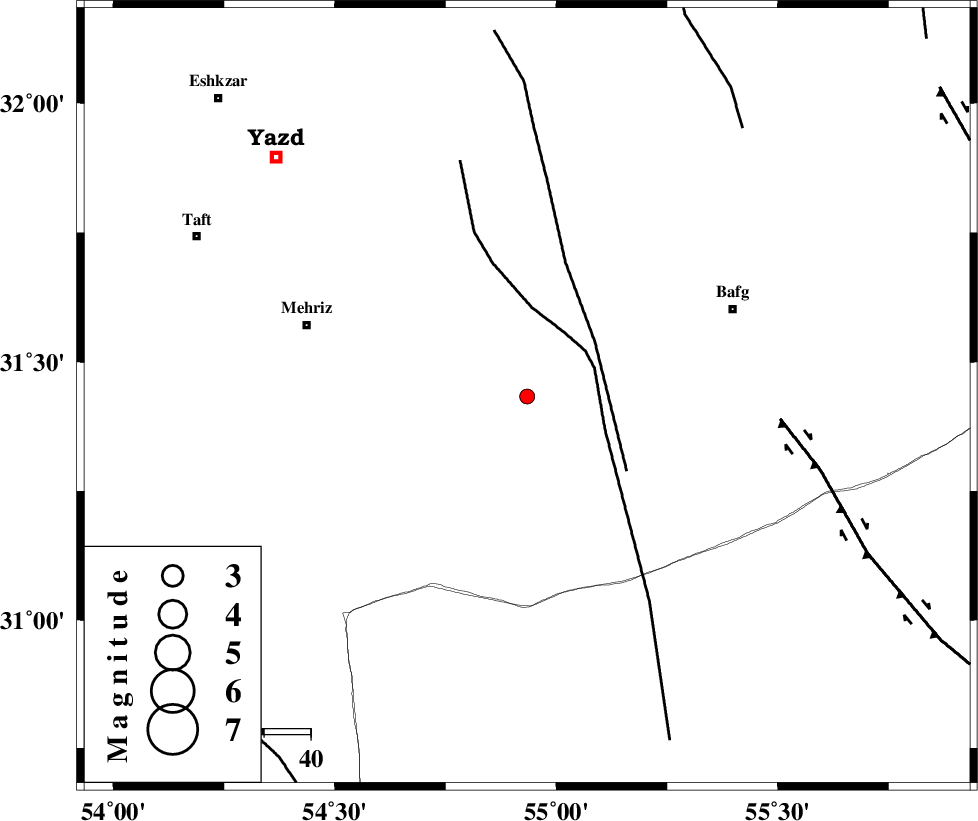

| Location | Lat:31.433 Lon: 54.934 |
| Region | Yazd Province, 48 km South-West of Bafq |
Nearest Cities |
|
| 12 km North of Bahadoran, Yazd Province | |
| 48 km South West of Bafq, Yazd Province | |
| 50 km South East of Mehriz, Yazd Province | |
| 52 km South West of Mobarake, Yazd Province | |
| 62 km South East of Mohammadabad, Yazd Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| ANAR_F (Length: 127 km) , Distance to epicenter: 16 km | |
| ANAR_F (Length: 91 km) , Distance to epicenter: 19 km | |
| DARIVAN_F (Length: 131 km) , Distance to epicenter: 54 km | |
| Number of Phases | 6 |
| RMS | 0.3 |
| Number of Stations | 4 |
| Error in Latitude | >5.8 km |
| Error in Longitude | 5.6 km |
| Error in Depth | 8.4 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 134721 | IIEES | KRBR | N | 12.4 | 0.15 | 2018-07-15 12:34:28 | 2018-07-17 03:57:00 | n |
| 134722 | IIEES | KRBR | E | 11.9 | 0.25 | 2018-07-15 12:34:30 | 2018-07-17 03:57:00 | n |
| 134723 | IIEES | NASN | E | 6.6 | 0.32 | 2018-07-15 12:34:32 | 2018-07-17 03:57:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | KRBR | Z | Pn | E | 2018-07-15 12:33:55 | -0.26 | y | 238 | 132 | |||
| IIEES | KRBR | N | Sg | E | 2018-07-15 12:34:26 | 0.19 | y | 238 | 132 | |||
| IIEES | NASN | Z | Pn | E | 2018-07-15 12:33:58 | 0.35 | y | 251 | 308 | |||
| IIEES | NASN | N | Sg | E | 2018-07-15 12:34:29 | -0.2 | y | 251 | 308 | |||
| IIEES | TABS | Z | Pn | E | 2018-07-15 12:34:06 | 0.33 | y | 320 | 39 | |||
| IIEES | BSRN | Z | Pn | E | 2018-07-15 12:34:15 | -0.5 | y | 402 | 80 | |||
