Magnitude |
:4.9 |
| Date & Time (UTC) | 2018-07-17 03:58:30.5 |
| Date & Time (Local) | 1397/4/26 08:28:30.5 |

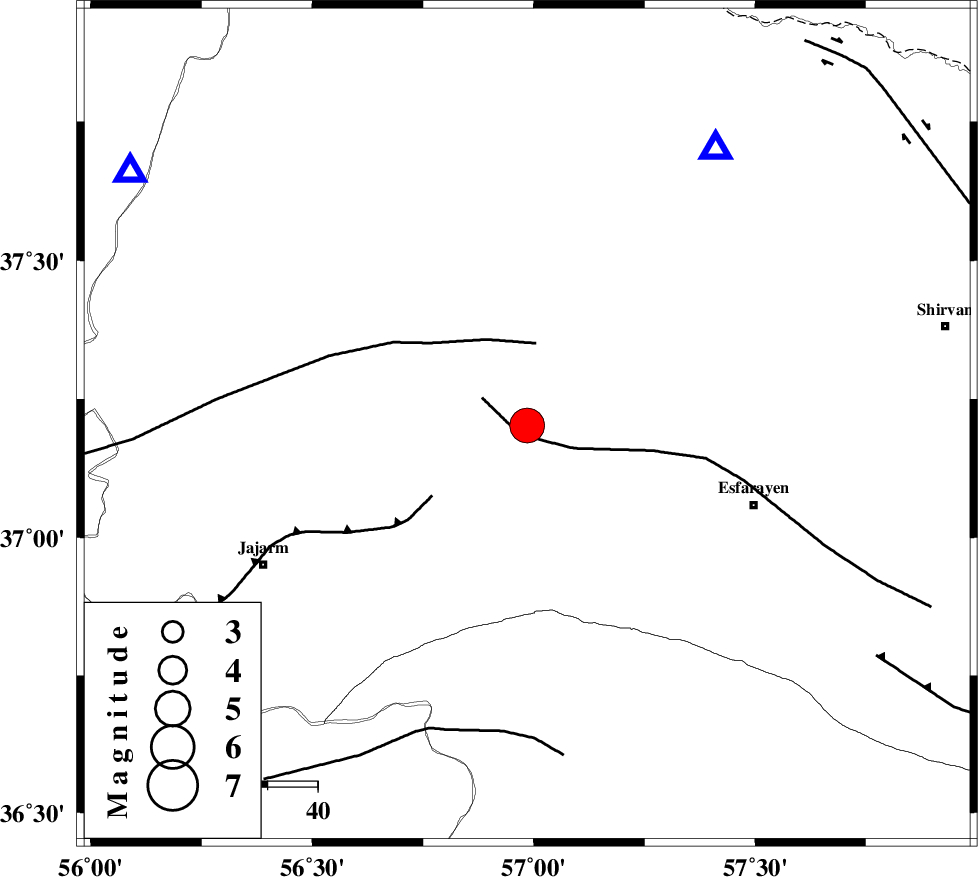

| Location | Lat:37.203 Lon: 56.985 |
| Region | Khorasan(north) Province, 39 km South of Ashkhaneh |
Nearest Cities |
|
| 20 km North West of Cheharborj, Khorasan(north) Province | |
| 20 km South East of Shogan, Khorasan(north) Province | |
| 31 km North West of Zarqabad, Khorasan(north) Province | |
| 39 km South of Ashkhaneh, Khorasan(north) Province | |
| 39 km North West of Eraj, Khorasan(north) Province | |
| Depth | 6 km |
| Agency | |
Faults within 150 km: |
|
| ESFARAYEN_F (Length: 111 km) , Distance to epicenter: 2 km | |
| ROBATE_QARABIL_F (Length: 168 km) , Distance to epicenter: 17 km | |
| JAJARAM_F (Length: 77 km) , Distance to epicenter: 24 km | |
| Number of Phases | 25 |
| RMS | 0.6 |
| Number of Stations | 22 |
| Error in Latitude | >4.8 km |
| Error in Longitude | 5.1 km |
| Error in Depth | 8.4 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 134736 | IIEES | TABS | N | 1395.3 | 0.89 | 2018-07-17 04:00:37 | 2018-07-17 04:40:00 | n |
| 134737 | IIEES | DAMV | E | 735.6 | 0.56 | 2018-07-17 04:01:03 | 2018-07-17 04:40:00 | n |
| 134738 | IIEES | DAMV | N | 616.7 | 0.45 | 2018-07-17 04:01:10 | 2018-07-17 04:40:00 | n |
| 134739 | IIEES | GHVR | N | 568.6 | 0.8 | 2018-07-17 04:01:42 | 2018-07-17 04:40:00 | n |
| 134740 | IIEES | GHVR | E | 463.5 | 0.8 | 2018-07-17 04:01:46 | 2018-07-17 04:40:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | BJRD | Z | Pg | E | 2018-07-17 03:58:42 | -0.12 | y | 66.7 | 34 | |||
| IIEES | MRVT | Z | Pg | E | 2018-07-17 03:58:47 | 0.23 | y | 94.1 | 303 | |||
| IIEES | MRVT | N | Sg | E | 2018-07-17 03:58:58 | -0.56 | y | 94.1 | 303 | |||
| IIEES | SHRO | Z | Pg | E | 2018-07-17 03:58:57 | -0.72 | y | 159 | 214 | |||
| IIEES | TABS | Z | Pn | E | 2018-07-17 03:59:27 | -0.54 | y | 394 | 178 | |||
| IIEES | DAMV | Z | Pn | E | 2018-07-17 03:59:40 | 0.78 | y | 482 | 250 | |||
| IIEES | SHRT | Z | Pn | E | 2018-07-17 03:59:40 | 0.16 | y | 496 | 142 | |||
| IIEES | CHTH | Z | Pn | E | 2018-07-17 03:59:48 | 1.53 | y | 544 | 256 | |||
| IIEES | THKV | Z | Pn | E | 2018-07-17 03:59:50 | 1.2 | y | 565 | 257 | |||
| IIEES | GHVR | Z | Pn | E | 2018-07-17 03:59:53 | 0.01 | y | 600 | 241 | |||
| IIEES | BSRN | Z | Pn | E | 2018-07-17 03:59:55 | 0.09 | y | 613 | 161 | |||
| IIEES | NASN | Z | Pn | E | 2018-07-17 03:59:55 | -0.74 | y | 620 | 219 | |||
| IIEES | GIDE | Z | Pn | E | 2018-07-17 03:59:56 | -0.9 | y | 630 | 269 | |||
| IIEES | ASAO | Z | Pn | E | 2018-07-17 04:00:05 | 0.11 | y | 694 | 247 | |||
| IIEES | ZNJK | Z | Pn | E | 2018-07-17 04:00:11 | -0.03 | y | 742 | 268 | |||
| IIEES | KHMZ | Z | Pn | E | 2018-07-17 04:00:11 | 0.11 | y | 744 | 241 | |||
| IIEES | KRBR | Z | Pn | E | 2018-07-17 04:00:19 | 0.49 | y | 801 | 182 | |||
| IIEES | GRMI | Z | Pn | E | 2018-07-17 04:00:18 | -2.09 | n | 4 | 818 | 285 | ||
| IIEES | SNGE | Z | Pn | E | 2018-07-17 04:00:16 | -14 | n | 4 | 898 | 258 | ||
| IIEES | ZHSF | Z | Pn | E | 2018-07-17 04:00:32 | 0.19 | y | 912 | 156 | |||
| IIEES | ILBA | Z | Pn | E | 2018-07-17 04:00:50 | 0 | y | 1055 | 251 | |||
| IIEES | GHIR | Z | Pn | E | 2018-07-17 04:00:50 | 0.22 | y | 1057 | 202 | |||
| IIEES | AHRM | Z | Pn | E | 2018-07-17 04:00:50 | -0.52 | y | 1066 | 211 | |||
| IIEES | BNDS | Z | Pn | E | 2018-07-17 04:00:54 | -0.5 | y | 1090 | 184 | |||
| IIEES | MAKU | Z | Pn | E | 2018-07-17 04:00:55 | -0.55 | y | 1102 | 286 | |||
