Magnitude |
:2.5 |
| Date & Time (UTC) | 2018-07-20 03:00:04.8 |
| Date & Time (Local) | 1397/4/29 07:30:04.8 |

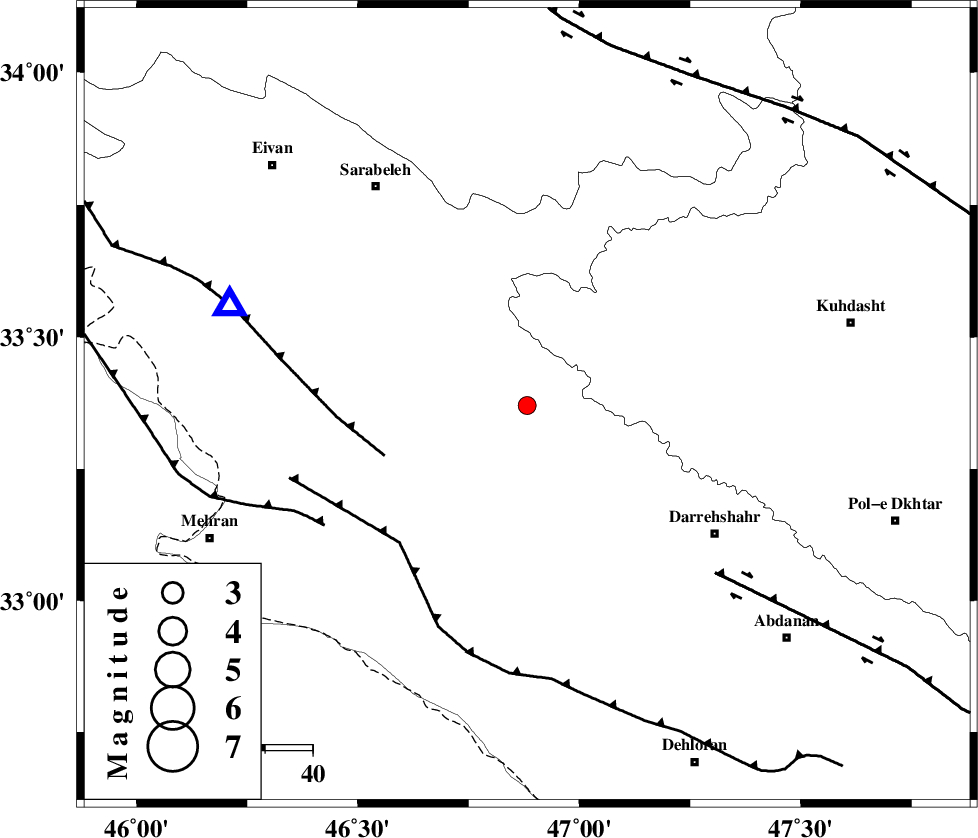

| Location | Lat:33.371 Lon: 46.882 |
| Region | Ilam Province, 48 km North-West of Darreh Shahr |
Nearest Cities |
|
| 14 km North of Badreh, Ilam Province | |
| 16 km North of Meymeh, Ilam Province | |
| 33 km South of Belaveh tare-e sofla, Ilam Province | |
| 33 km North East of Gonbad-e pirmohammad, Ilam Province | |
| 35 km South East of Sartang-e malehmaran, Ilam Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| MFF7 (Length: 99 km) , Distance to epicenter: 32 km | |
| MFF6 (Length: 144 km) , Distance to epicenter: 39 km | |
| ZFF4 (Length: 128 km) , Distance to epicenter: 49 km | |
| Number of Phases | 6 |
| RMS | 0.1 |
| Number of Stations | 4 |
| Error in Latitude | >7.1 km |
| Error in Longitude | 1.7 km |
| Error in Depth | 3.5 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 134864 | IIEES | ILBA | N | 690.5 | 0.4 | 2018-07-20 03:00:29 | 2018-07-21 04:56:00 | n |
| 134865 | IIEES | ILBA | E | 421.5 | 0.47 | 2018-07-20 03:00:29 | 2018-07-21 04:56:00 | n |
| 134866 | IIEES | KHMZ | E | 7.9 | 0.4 | 2018-07-20 03:01:34 | 2018-07-21 04:56:00 | n |
| 134867 | IIEES | KHMZ | N | 8.4 | 0.24 | 2018-07-20 03:01:41 | 2018-07-21 04:56:00 | n |
| 134868 | IIEES | ASAO | N | 9.2 | 0.69 | 2018-07-20 03:01:42 | 2018-07-21 04:56:00 | n |
| 134869 | IIEES | SRSL | N | 10.3 | 0.41 | 2018-07-20 03:01:41 | 2018-07-21 04:56:00 | n |
| 134870 | IIEES | SRSL | E | 10.1 | 0.35 | 2018-07-20 03:01:51 | 2018-07-21 04:56:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | ILBA | Z | Pg | E | 2018-07-20 03:00:16 | -0.13 | y | 68.7 | 294 | |||
| IIEES | ILBA | N | Sg | E | 2018-07-20 03:00:25 | 0 | y | 68.7 | 294 | |||
| IIEES | KHMZ | Z | Pn | E | 2018-07-20 03:00:48 | 0.16 | y | 289 | 81 | |||
| IIEES | KHMZ | N | Sg | E | 2018-07-20 03:01:26 | -0.14 | y | 289 | 81 | |||
| IIEES | ASAO | Z | Pn | E | 2018-07-20 03:00:52 | 0.02 | y | 319 | 65 | |||
| IIEES | SRSL | Z | Pn | E | 2018-07-20 03:00:55 | 0.11 | y | 342 | 338 | |||
