Magnitude |
:3.7 |
| Date & Time (UTC) | 2018-07-19 07:38:32.9 |
| Date & Time (Local) | 1397/4/28 12:08:32.9 |

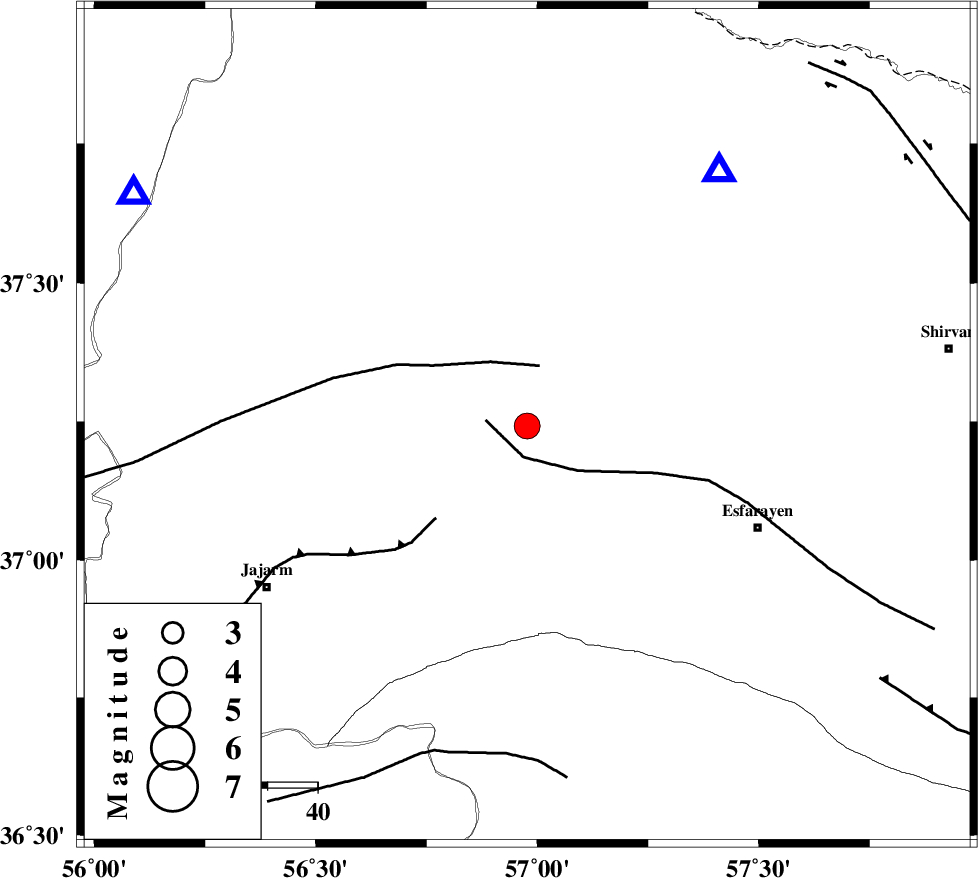

| Location | Lat:37.242 Lon: 56.977 |
| Region | Khorasan(north) Province, 34 km South of Ashkhaneh |
Nearest Cities |
|
| 17 km South East of Shogan, Khorasan(north) Province | |
| 23 km North West of Cheharborj, Khorasan(north) Province | |
| 34 km South of Ashkhaneh, Khorasan(north) Province | |
| 34 km North West of Zarqabad, Khorasan(north) Province | |
| 40 km South West of Bojnurd, Khorasan(north) Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| ESFARAYEN_F (Length: 111 km) , Distance to epicenter: 6 km | |
| ROBATE_QARABIL_F (Length: 168 km) , Distance to epicenter: 12 km | |
| JAJARAM_F (Length: 77 km) , Distance to epicenter: 26 km | |
| Number of Phases | 14 |
| RMS | 0.5 |
| Number of Stations | 14 |
| Error in Latitude | >4 km |
| Error in Longitude | 4.8 km |
| Error in Depth | 5.9 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 134897 | IIEES | SHRO | E | 562.7 | 0.66 | 2018-07-19 07:39:24 | 2018-07-21 08:02:00 | n |
| 134898 | IIEES | THKV | N | 27.7 | 0.54 | 2018-07-19 07:41:20 | 2018-07-21 08:02:00 | n |
| 134899 | IIEES | THKV | E | 24.3 | 0.63 | 2018-07-19 07:41:32 | 2018-07-21 08:02:00 | n |
| 134900 | IIEES | GHVR | E | 42.4 | 0.8 | 2018-07-19 07:41:39 | 2018-07-21 08:02:00 | n |
| 134901 | IIEES | GHVR | N | 28.6 | 0.57 | 2018-07-19 07:41:42 | 2018-07-21 08:02:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | BJRD | Z | Pg | E | 2018-07-19 07:38:44 | -0.14 | y | 63.6 | 37 | |||
| IIEES | MRVT | Z | Pg | E | 2018-07-19 07:38:48 | 0.34 | y | 91.2 | 301 | |||
| IIEES | SHRO | Z | Pg | E | 2018-07-19 07:38:59 | -0.6 | y | 162 | 212 | |||
| IIEES | TABS | Z | Pn | E | 2018-07-19 07:39:30 | 0.33 | y | 399 | 178 | |||
| IIEES | DAMV | Z | Pn | E | 2018-07-19 07:39:41 | 0.32 | y | 483 | 250 | |||
| IIEES | SHRT | Z | Pn | E | 2018-07-19 07:39:42 | 0.13 | y | 500 | 142 | |||
| IIEES | CHTH | Z | Pn | E | 2018-07-19 07:39:48 | -0.29 | y | 544 | 256 | |||
| IIEES | THKV | Z | Pn | E | 2018-07-19 07:39:50 | 0.08 | y | 565 | 257 | |||
| IIEES | GHVR | Z | Pn | E | 2018-07-19 07:39:55 | 0.48 | y | 601 | 241 | |||
| IIEES | BSRN | Z | Pn | E | 2018-07-19 07:39:57 | 0.08 | y | 618 | 161 | |||
| IIEES | NASN | Z | Pn | E | 2018-07-19 07:39:57 | -0.16 | y | 622 | 219 | |||
| IIEES | ZNJK | Z | Pn | E | 2018-07-19 07:40:13 | 0.31 | y | 741 | 268 | |||
| IIEES | KHMZ | Z | Pn | E | 2018-07-19 07:40:13 | 0.52 | y | 745 | 241 | |||
| IIEES | GRMI | Z | Pn | E | 2018-07-19 07:40:20 | -1.71 | y | 816 | 285 | |||
