Magnitude |
:2.6 |
| Date & Time (UTC) | 2018-07-18 20:08:19.8 |
| Date & Time (Local) | 1397/4/28 00:38:19.8 |

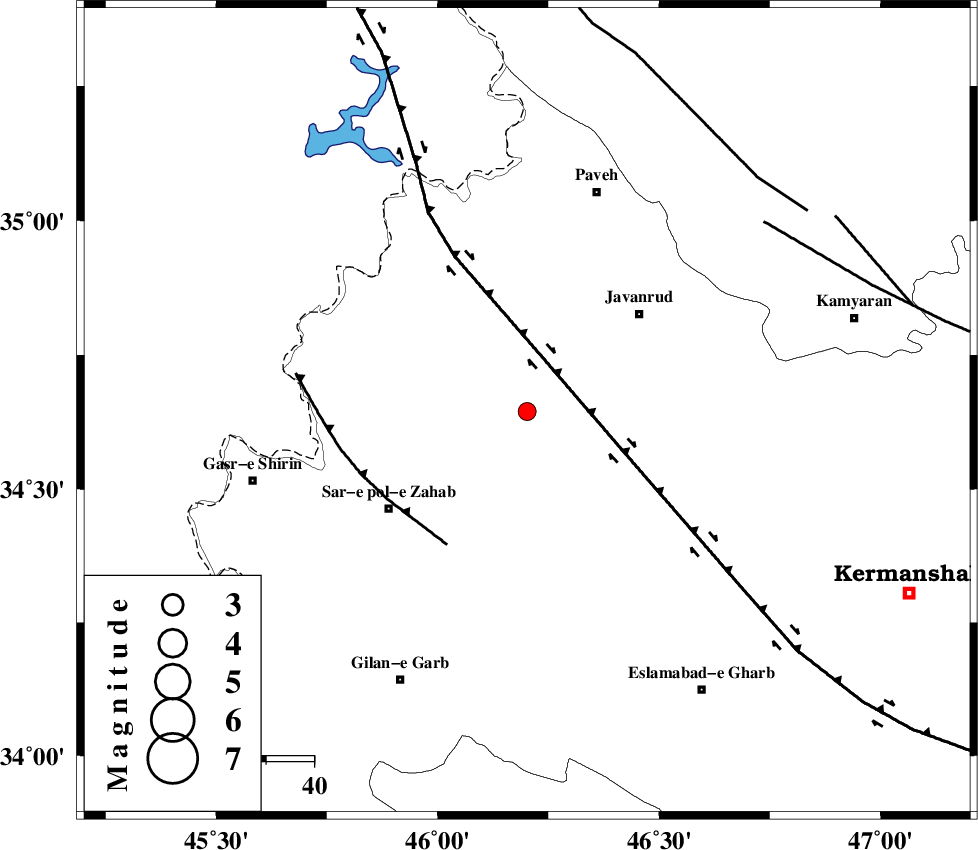

| Location | Lat:34.645 Lon: 46.202 |
| Region | Kermanshah Province, 31 km South-West of Javanrud |
Nearest Cities |
|
| 9 km of Qolqoleh, Kermanshah Province | |
| 11 km West of Mirabad, Kermanshah Province | |
| 19 km North West of Zavleh olia, Kermanshah Province | |
| 23 km South of Shervineh, Kermanshah Province | |
| 25 km West of Dolatabad, Kermanshah Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| HZF4 (Length: 492 km) , Distance to epicenter: 12 km | |
| MFF8 (Length: 48 km) , Distance to epicenter: 32 km | |
| SARTAKHT_F (Length: 78 km) , Distance to epicenter: 63 km | |
| Number of Phases | 8 |
| RMS | 0.4 |
| Number of Stations | 6 |
| Error in Latitude | >3.2 km |
| Error in Longitude | 7.6 km |
| Error in Depth | 8 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 134937 | IIEES | ILBA | E | 142.9 | 0.63 | 2018-07-18 20:08:54 | 2018-07-22 04:55:00 | n |
| 134938 | IIEES | ILBA | N | 154.1 | 0.74 | 2018-07-18 20:09:01 | 2018-07-22 04:55:00 | n |
| 134939 | IIEES | SNGE | N | 150.6 | 0.33 | 2018-07-18 20:08:41 | 2018-07-22 04:55:00 | n |
| 134940 | IIEES | SRSL | N | 91.8 | 0.47 | 2018-07-18 20:09:20 | 2018-07-22 04:55:00 | n |
| 134941 | IIEES | SRSL | E | 78.1 | 0.43 | 2018-07-18 20:09:24 | 2018-07-22 04:55:00 | n |
| 134942 | IIEES | ASAO | E | 8.1 | 0.79 | 2018-07-18 20:10:08 | 2018-07-22 04:55:00 | n |
| 134943 | IIEES | KHMZ | E | 6.8 | 0.64 | 2018-07-18 20:10:17 | 2018-07-22 04:55:00 | n |
| 134944 | IIEES | KHMZ | N | 9.4 | 0.81 | 2018-07-18 20:10:18 | 2018-07-22 04:55:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | ILBA | Z | Pg | E | 2018-07-18 20:08:38 | -0.09 | y | 113 | 180 | |||
| IIEES | ILBA | N | Sg | E | 2018-07-18 20:08:52 | -0.02 | y | 113 | 180 | |||
| IIEES | SNGE | Z | Pg | E | 2018-07-18 20:08:22 | -16.8 | n | 4 | 116 | 64 | ||
| IIEES | SRSL | Z | Pg | E | 2018-07-18 20:08:50 | -0.11 | y | 187 | 338 | |||
| IIEES | SRSL | N | S | E | 2018-07-18 20:09:12 | 0.19 | y | 187 | 338 | |||
| IIEES | ZNJK | Z | Pn | E | 2018-07-18 20:09:06 | -0.33 | y | 318 | 44 | |||
| IIEES | ASAO | Z | Pn | E | 2018-07-18 20:09:10 | -0.5 | y | 351 | 91 | |||
| IIEES | KHMZ | Z | Pn | E | 2018-07-18 20:09:13 | 0.9 | y | 361 | 105 | |||
