Magnitude |
:4.3 |
| Date & Time (UTC) | 2018-07-23 00:59:49.7 |
| Date & Time (Local) | 1397/5/1 05:29:49.7 |

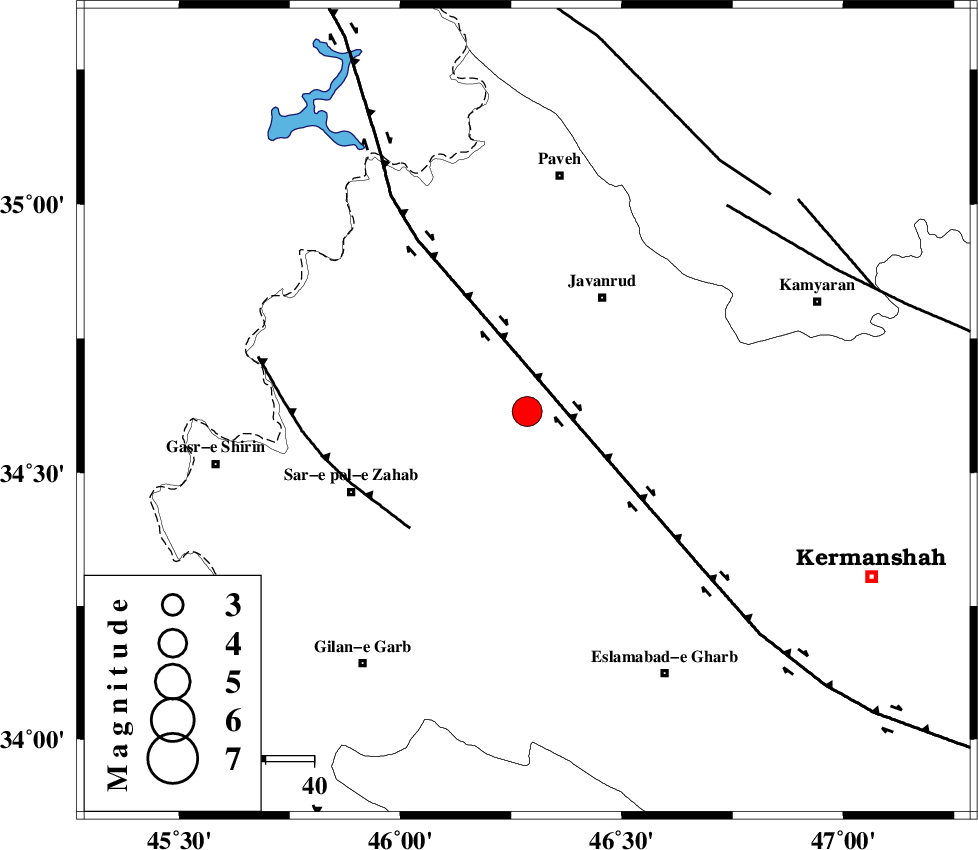

| Location | Lat:34.614 Lon: 46.286 |
| Region | Kermanshah Province, 28 km South-West of Javanrud |
Nearest Cities |
|
| 8 km of Mirabad, Kermanshah Province | |
| 13 km North of Zavleh olia, Kermanshah Province | |
| 17 km South East of Qolqoleh, Kermanshah Province | |
| 19 km West of Dolatabad, Kermanshah Province | |
| 22 km South West of Sarukhan, Kermanshah Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| HZF4 (Length: 492 km) , Distance to epicenter: 12 km | |
| MFF8 (Length: 48 km) , Distance to epicenter: 34 km | |
| SARTAKHT_F (Length: 78 km) , Distance to epicenter: 59 km | |
| Number of Phases | 24 |
| RMS | 0.6 |
| Number of Stations | 22 |
| Error in Latitude | >3.3 km |
| Error in Longitude | 6.1 km |
| Error in Depth | 6.6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 134992 | IIEES | ILBA | E | 5346.1 | 0.46 | 2018-07-23 01:00:31 | 2018-07-23 06:27:00 | n |
| 134993 | IIEES | SNGE | E | 7661.4 | 0.67 | 2018-07-23 01:00:25 | 2018-07-23 06:27:00 | n |
| 134994 | IIEES | SNGE | N | 10325.7 | 0.62 | 2018-07-23 01:00:25 | 2018-07-23 06:27:00 | n |
| 134995 | IIEES | ASAO | N | 645.9 | 0.72 | 2018-07-23 01:01:44 | 2018-07-23 06:27:00 | n |
| 134996 | IIEES | KHMZ | E | 648.9 | 0.8 | 2018-07-23 01:01:43 | 2018-07-23 06:27:00 | n |
| 134997 | IIEES | GIDE | N | 441.9 | 0.76 | 2018-07-23 01:02:03 | 2018-07-23 06:27:00 | n |
| 134998 | IIEES | GIDE | E | 370.4 | 0.83 | 2018-07-23 01:02:04 | 2018-07-23 06:27:00 | n |
| 134999 | IIEES | THKV | N | 209.2 | 0.52 | 2018-07-23 01:02:10 | 2018-07-23 06:27:00 | n |
| 135000 | IIEES | GHVR | N | 340.7 | 0.59 | 2018-07-23 01:02:21 | 2018-07-23 06:27:00 | n |
| 135001 | IIEES | GHVR | E | 277.5 | 0.59 | 2018-07-23 01:02:23 | 2018-07-23 06:27:00 | n |
| 135002 | IIEES | GRMI | N | 142.8 | 0.96 | 2018-07-23 01:02:27 | 2018-07-23 06:27:00 | n |
| 135003 | IIEES | DAMV | E | 122 | 0.59 | 2018-07-23 01:02:40 | 2018-07-23 06:27:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | ILBA | Z | Pg | E | 2018-07-23 01:00:07 | -0.42 | y | 110 | 184 | |||
| IIEES | ILBA | E | Sg | E | 2018-07-23 01:00:22 | 0.33 | y | 110 | 184 | |||
| IIEES | SNGE | Z | Pg | E | 2018-07-23 01:00:07 | -0.77 | y | 111 | 61 | |||
| IIEES | SNGE | N | Sg | E | 2018-07-23 01:00:22 | -0.21 | y | 111 | 61 | |||
| IIEES | ZNJK | Z | Pn | E | 2018-07-23 01:00:36 | 0.08 | y | 315 | 43 | |||
| IIEES | ASAO | Z | Pn | E | 2018-07-23 01:00:39 | -0.38 | y | 343 | 90 | |||
| IIEES | KHMZ | Z | Pn | E | 2018-07-23 01:00:41 | 0.19 | y | 353 | 105 | |||
| IIEES | GIDE | Z | Pn | E | 2018-07-23 01:00:49 | 0.32 | y | 416 | 51 | |||
| IIEES | THKV | Z | Pn | E | 2018-07-23 01:00:52 | 0.33 | y | 442 | 70 | |||
| IIEES | GHVR | Z | Pn | E | 2018-07-23 01:00:54 | 0.57 | y | 455 | 90 | |||
| IIEES | CHTH | Z | Pn | E | 2018-07-23 01:00:55 | 0.3 | y | 463 | 71 | |||
| IIEES | GRMI | Z | Pn | E | 2018-07-23 01:00:57 | -0.27 | y | 487 | 17 | |||
| IIEES | DAMV | Z | Pn | E | 2018-07-23 01:01:04 | 0.73 | y | 530 | 76 | |||
| IIEES | MAKU | Z | Pn | E | 2018-07-23 01:01:05 | 0.06 | y | 545 | 345 | |||
| IIEES | NASN | Z | Pn | E | 2018-07-23 01:01:16 | 0.14 | y | 637 | 107 | |||
| IIEES | AHRM | Z | Pn | E | 2018-07-23 01:01:35 | -0.32 | y | 794 | 142 | |||
| IIEES | SHRO | Z | Pn | E | 2018-07-23 01:01:49 | 0.44 | y | 898 | 77 | |||
| IIEES | MRVT | Z | Pn | E | 2018-07-23 01:01:54 | 0.18 | y | 944 | 66 | |||
| IIEES | GHIR | Z | Pn | E | 2018-07-23 01:01:53 | -1.87 | y | 947 | 136 | |||
| IIEES | TABS | Z | Pn | E | 2018-07-23 01:02:02 | 0.12 | y | 1004 | 93 | |||
| IIEES | BJRD | Z | Pn | E | 2018-07-23 01:02:09 | 0.88 | y | 1057 | 68 | |||
| IIEES | KRBR | Z | Pn | E | 2018-07-23 01:02:15 | 0.15 | y | 1111 | 115 | |||
| IIEES | BNDS | Z | Pn | E | 2018-07-23 01:02:28 | -2.2 | y | 1236 | 128 | |||
| IIEES | SHRT | Z | Pn | E | 2018-07-23 01:02:39 | 0.77 | y | 1295 | 91 | |||
