Magnitude |
:2.6 |
| Date & Time (UTC) | 2018-07-24 07:12:20.9 |
| Date & Time (Local) | 1397/5/2 11:42:20.9 |

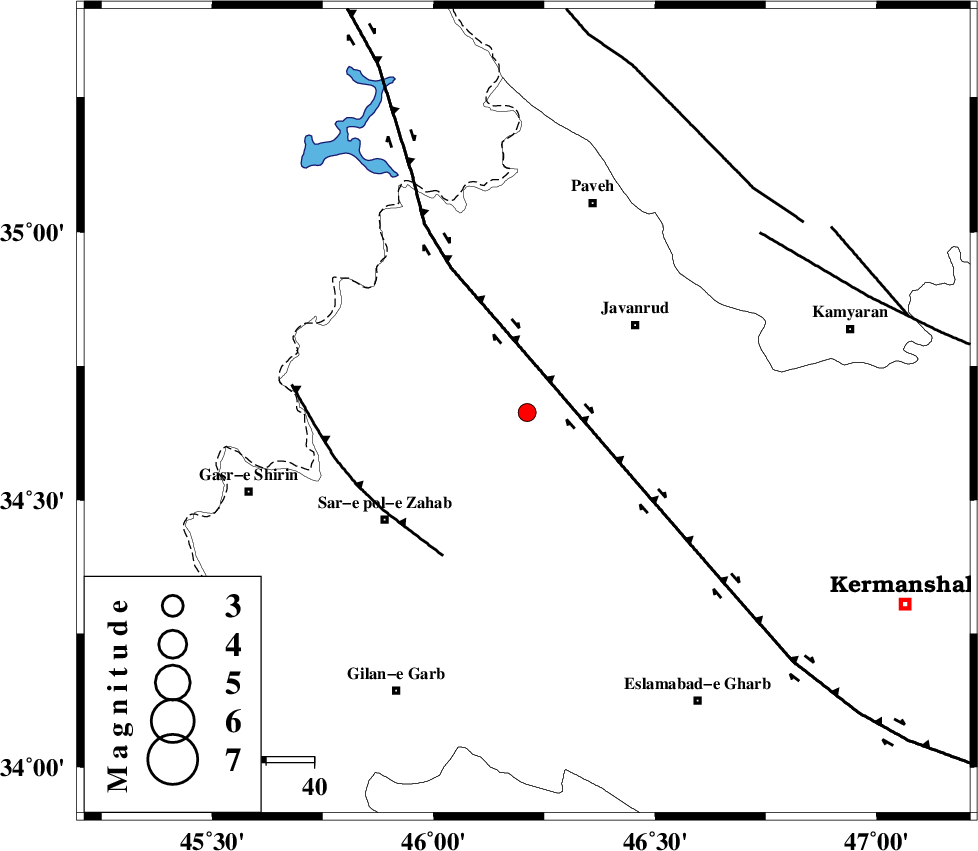

| Location | Lat:34.664 Lon: 46.211 |
| Region | Kermanshah Province, 29 km South-West of Javanrud |
Nearest Cities |
|
| 8 km of Qolqoleh, Kermanshah Province | |
| 9 km of Mirabad, Kermanshah Province | |
| 21 km North West of Zavleh olia, Kermanshah Province | |
| 21 km South of Shervineh, Kermanshah Province | |
| 24 km West of Dolatabad, Kermanshah Province | |
| Depth | 17 km |
| Agency | |
Faults within 150 km: |
|
| HZF4 (Length: 492 km) , Distance to epicenter: 10 km | |
| MFF8 (Length: 48 km) , Distance to epicenter: 34 km | |
| SARTAKHT_F (Length: 78 km) , Distance to epicenter: 61 km | |
| Number of Phases | 6 |
| RMS | 0.2 |
| Number of Stations | 4 |
| Error in Latitude | >5.1 km |
| Error in Longitude | 9.5 km |
| Error in Depth | 5 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 135068 | IIEES | SNGE | E | 125 | 0.3 | 2018-07-24 07:12:56 | 2018-07-24 08:20:00 | n |
| 135069 | IIEES | SNGE | N | 135.8 | 0.6 | 2018-07-24 07:12:58 | 2018-07-24 08:20:00 | n |
| 135070 | IIEES | ILBA | N | 259.9 | 0.43 | 2018-07-24 07:13:00 | 2018-07-24 08:20:00 | n |
| 135071 | IIEES | ASAO | N | 12.8 | 0.54 | 2018-07-24 07:14:10 | 2018-07-24 08:20:00 | n |
| 135072 | IIEES | ASAO | E | 9.5 | 0.74 | 2018-07-24 07:14:14 | 2018-07-24 08:20:00 | n |
| 135073 | IIEES | KHMZ | E | 9.1 | 0.28 | 2018-07-24 07:14:11 | 2018-07-24 08:20:00 | n |
| 135074 | IIEES | KHMZ | N | 9.7 | 0.47 | 2018-07-24 07:14:16 | 2018-07-24 08:20:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | SNGE | Z | Pg | E | 2018-07-24 07:12:40 | -0.12 | y | 114 | 65 | |||
| IIEES | SNGE | N | Sg | E | 2018-07-24 07:12:54 | 0.06 | y | 114 | 65 | |||
| IIEES | ILBA | Z | Pg | E | 2018-07-24 07:12:40 | 0.06 | y | 115 | 180 | |||
| IIEES | ILBA | N | Sg | E | 2018-07-24 07:12:54 | 0 | y | 115 | 180 | |||
| IIEES | ASAO | Z | Pn | E | 2018-07-24 07:13:12 | 0.35 | y | 350 | 91 | |||
| IIEES | KHMZ | Z | Pn | E | 2018-07-24 07:13:12 | -0.36 | y | 361 | 105 | |||
