Magnitude |
:3.9 |
| Date & Time (UTC) | 2018-07-26 15:51:20.2 |
| Date & Time (Local) | 1397/5/4 20:21:20.2 |

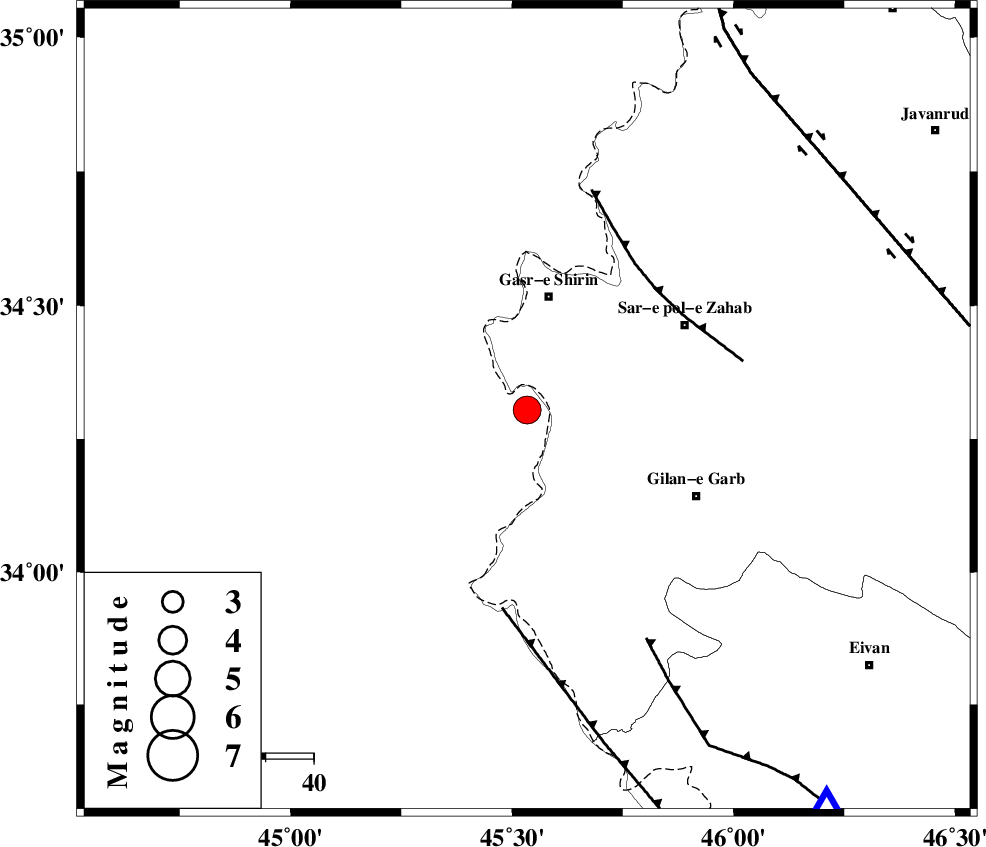

| Location | Lat:34.304 Lon: 45.534 |
| Region | Iraq, 24 km South of Qasr-E-Shirin |
Nearest Cities |
|
| 12 km of Khosravi, Kermanshah Province | |
| 17 km South of Seyyed sohrab, Kermanshah Province | |
| 24 km South of Qasr-E-Shirin, Kermanshah Province | |
| 29 km South West of Aqabarar, Kermanshah Province | |
| 30 km West of Chub baghan, Kermanshah Province | |
| Depth | 17 km |
| Agency | |
Faults within 150 km: |
|
| MFF8 (Length: 48 km) , Distance to epicenter: 37 km | |
| ZFF4 (Length: 128 km) , Distance to epicenter: 42 km | |
| MFF7 (Length: 99 km) , Distance to epicenter: 54 km | |
| Number of Phases | 16 |
| RMS | 0.3 |
| Number of Stations | 14 |
| Error in Latitude | >2.2 km |
| Error in Longitude | 5.6 km |
| Error in Depth | 5.4 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 135175 | IIEES | ILBA | N | 10374.5 | 0.31 | 2018-07-26 15:51:52 | 2018-07-28 05:07:00 | n |
| 135176 | IIEES | ILBA | E | 10913.1 | 0.36 | 2018-07-26 15:51:54 | 2018-07-28 05:07:00 | n |
| 135177 | IIEES | SNGE | N | 751.1 | 0.45 | 2018-07-26 15:52:20 | 2018-07-28 05:07:00 | n |
| 135178 | IIEES | SNGE | E | 1084.8 | 0.38 | 2018-07-26 15:52:22 | 2018-07-28 05:07:00 | n |
| 135179 | IIEES | ASAO | N | 88.9 | 0.4 | 2018-07-26 15:53:27 | 2018-07-28 05:07:00 | n |
| 135180 | IIEES | KHMZ | E | 91.5 | 0.57 | 2018-07-26 15:53:11 | 2018-07-28 05:07:00 | n |
| 135181 | IIEES | KHMZ | N | 96.7 | 0.41 | 2018-07-26 15:53:28 | 2018-07-28 05:07:00 | n |
| 135182 | IIEES | GIDE | E | 68.5 | 0.61 | 2018-07-26 15:53:51 | 2018-07-28 05:07:00 | n |
| 135183 | IIEES | GIDE | N | 78.9 | 0.73 | 2018-07-26 15:53:54 | 2018-07-28 05:07:00 | n |
| 135184 | IIEES | THKV | N | 55.3 | 0.88 | 2018-07-26 15:54:14 | 2018-07-28 05:07:00 | n |
| 135185 | IIEES | GHVR | E | 73.1 | 0.49 | 2018-07-26 15:53:44 | 2018-07-28 05:07:00 | n |
| 135186 | IIEES | GHVR | N | 73 | 0.36 | 2018-07-26 15:54:00 | 2018-07-28 05:07:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | ILBA | Z | Pg | E | 2018-07-26 15:51:36 | -0.08 | y | 97.7 | 140 | |||
| IIEES | ILBA | N | Sg | E | 2018-07-26 15:51:49 | 0.22 | y | 97.7 | 140 | |||
| IIEES | SNGE | Z | Pg | E | 2018-07-26 15:51:50 | -0.28 | y | 188 | 62 | |||
| IIEES | SNGE | N | Sg | E | 2018-07-26 15:52:14 | 0.12 | y | 188 | 62 | |||
| IIEES | ZNJK | Z | Pn | E | 2018-07-26 15:52:16 | -0.02 | y | 388 | 47 | |||
| IIEES | ASAO | Z | Pn | E | 2018-07-26 15:52:19 | 0.29 | y | 414 | 85 | |||
| IIEES | KHMZ | Z | Pn | E | 2018-07-26 15:52:18 | -0.59 | y | 414 | 97 | |||
| IIEES | GIDE | Z | Pn | E | 2018-07-26 15:52:29 | 0.51 | y | 492 | 53 | |||
| IIEES | THKV | Z | Pn | E | 2018-07-26 15:52:32 | 0.03 | y | 519 | 68 | |||
| IIEES | GHVR | Z | Pn | E | 2018-07-26 15:52:33 | 0.24 | y | 526 | 86 | |||
| IIEES | CHTH | Z | Pn | E | 2018-07-26 15:52:34 | -0.05 | y | 540 | 69 | |||
| IIEES | GRMI | Z | Pn | E | 2018-07-26 15:52:35 | 0.24 | y | 543 | 22 | |||
| IIEES | MAKU | Z | Pn | E | 2018-07-26 15:52:38 | 0.04 | y | 566 | 353 | |||
| IIEES | DAMV | Z | Pn | E | 2018-07-26 15:52:42 | -0.58 | y | 606 | 74 | |||
| IIEES | NASN | Z | Pn | E | 2018-07-26 15:52:54 | -0.31 | y | 696 | 102 | |||
| IIEES | AHRM | Z | Pn | E | 2018-07-26 15:53:08 | 0.21 | y | 814 | 136 | |||
