Magnitude |
:2.7 |
| Date & Time (UTC) | 2018-07-26 07:30:11.7 |
| Date & Time (Local) | 1397/5/4 12:00:11.7 |

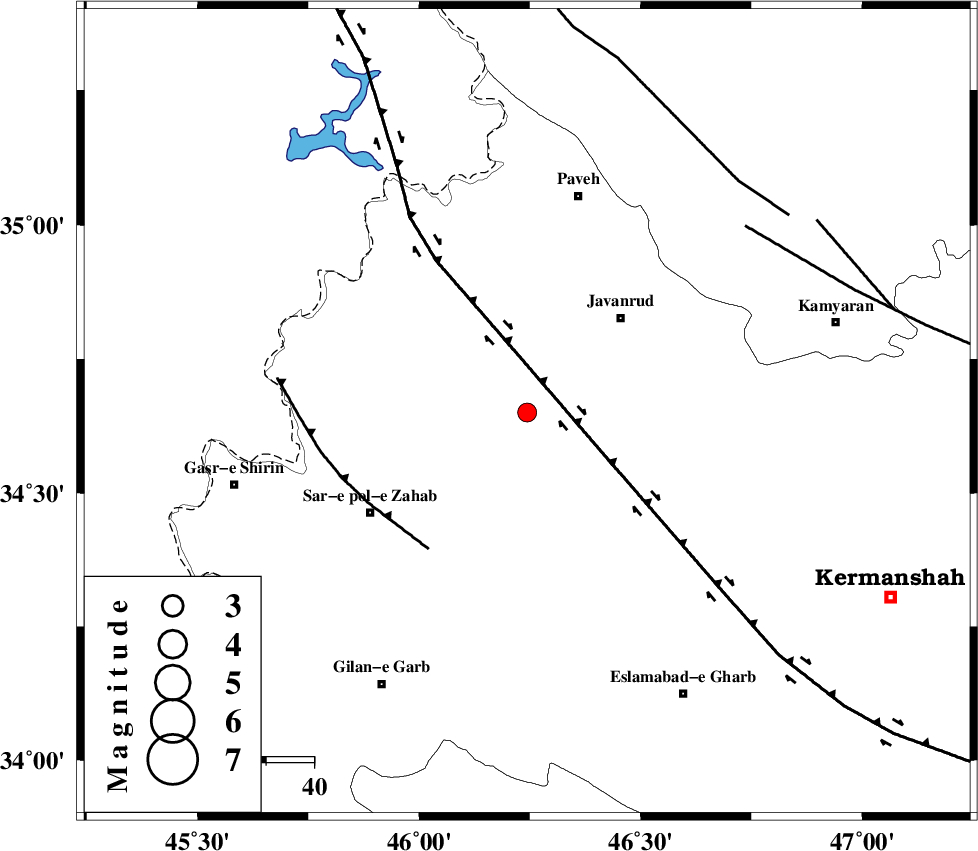

| Location | Lat:34.651 Lon: 46.244 |
| Region | Kermanshah Province, 27 km South-West of Javanrud |
Nearest Cities |
|
| 7 km of Mirabad, Kermanshah Province | |
| 11 km of Qolqoleh, Kermanshah Province | |
| 18 km North of Zavleh olia, Kermanshah Province | |
| 21 km West of Dolatabad, Kermanshah Province | |
| 22 km South of Shervineh, Kermanshah Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| HZF4 (Length: 492 km) , Distance to epicenter: 11 km | |
| MFF8 (Length: 48 km) , Distance to epicenter: 35 km | |
| SARTAKHT_F (Length: 78 km) , Distance to epicenter: 59 km | |
| Number of Phases | 8 |
| RMS | 0.3 |
| Number of Stations | 6 |
| Error in Latitude | >4.8 km |
| Error in Longitude | 9 km |
| Error in Depth | 5.5 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 135298 | IIEES | SNGE | E | 183.4 | 0.77 | 2018-07-26 07:30:47 | 2018-07-29 08:19:00 | n |
| 135299 | IIEES | SNGE | N | 278.5 | 0.51 | 2018-07-26 07:30:47 | 2018-07-29 08:19:00 | n |
| 135300 | IIEES | ILBA | E | 192.2 | 0.36 | 2018-07-26 07:30:52 | 2018-07-29 08:19:00 | n |
| 135301 | IIEES | ILBA | N | 161.7 | 0.44 | 2018-07-26 07:30:57 | 2018-07-29 08:19:00 | n |
| 135302 | IIEES | KHMZ | E | 12.4 | 0.31 | 2018-07-26 07:32:05 | 2018-07-29 08:19:00 | n |
| 135303 | IIEES | KHMZ | N | 12.5 | 0.79 | 2018-07-26 07:32:07 | 2018-07-29 08:19:00 | n |
| 135304 | IIEES | GHVR | N | 7.4 | 0.52 | 2018-07-26 07:32:41 | 2018-07-29 08:19:00 | n |
| 135305 | IIEES | GHVR | E | 5.5 | 0.52 | 2018-07-26 07:32:45 | 2018-07-29 08:19:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | SNGE | Z | Pg | E | 2018-07-26 07:30:30 | -0.14 | y | 112 | 64 | |||
| IIEES | SNGE | N | Sg | E | 2018-07-26 07:30:44 | 0.01 | y | 112 | 64 | |||
| IIEES | ILBA | Z | Pg | E | 2018-07-26 07:30:30 | 0.02 | y | 114 | 182 | |||
| IIEES | ILBA | N | Sg | E | 2018-07-26 07:30:44 | -0.05 | y | 114 | 182 | |||
| IIEES | ZNJK | Z | Pn | E | 2018-07-26 07:30:58 | 0.05 | y | 315 | 44 | |||
| IIEES | ASAO | Z | Pn | E | 2018-07-26 07:31:03 | 0.57 | y | 347 | 91 | |||
| IIEES | KHMZ | Z | Pn | E | 2018-07-26 07:31:04 | 0.17 | y | 357 | 105 | |||
| IIEES | GHVR | Z | Pn | E | 2018-07-26 07:31:15 | -0.73 | y | 459 | 91 | |||
