Magnitude |
:3.6 |
| Date & Time (UTC) | 2018-08-13 00:30:55.4 |
| Date & Time (Local) | 1397/5/22 05:00:55.4 |

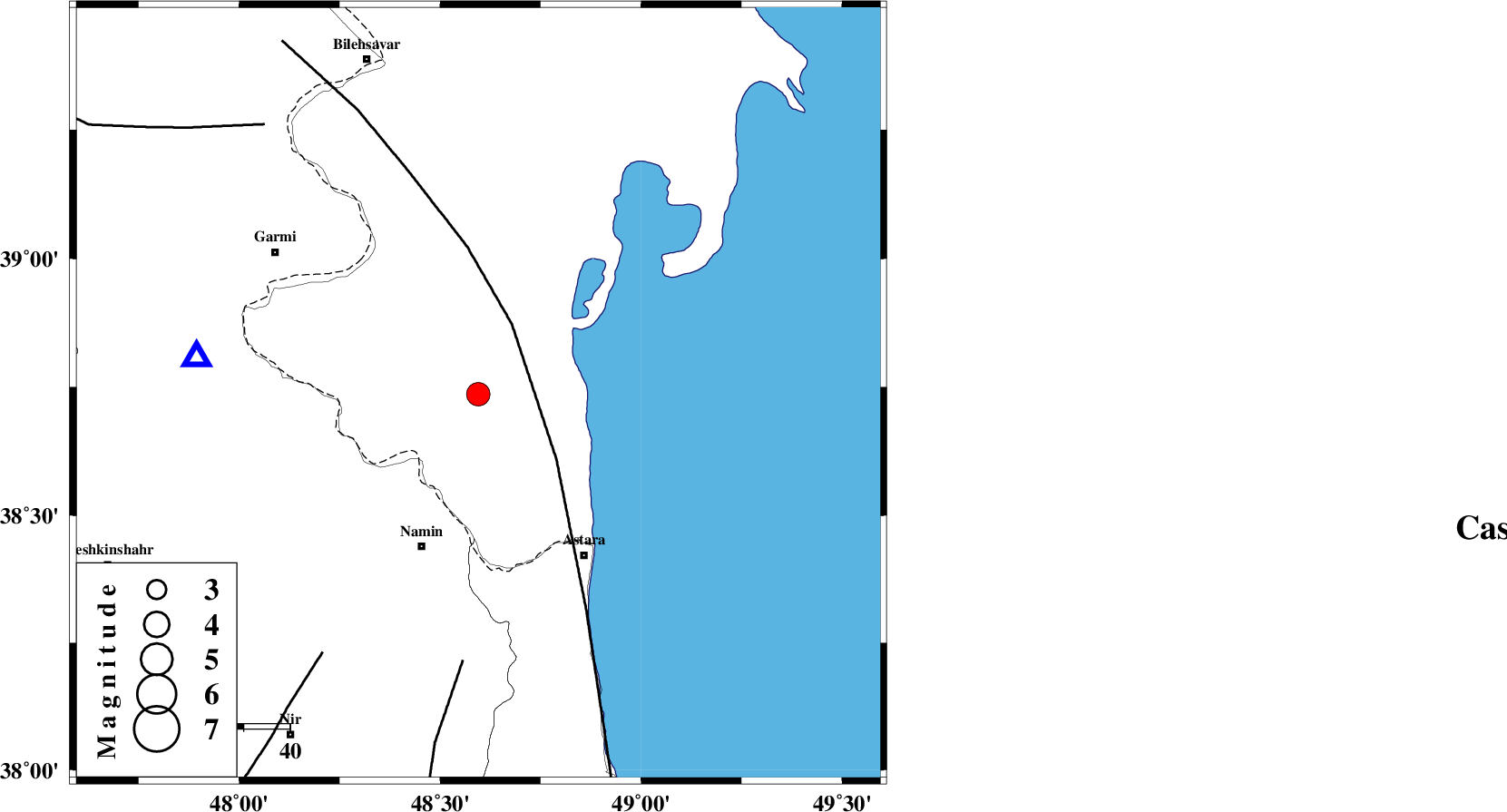

| Location | Lat:38.736 Lon: 48.595 |
| Region | Azerbaijan, 35 km North-East of Namin |
Nearest Cities |
|
| 28 km North East of Lurun, Ardebil Province | |
| 29 km North East of Anbaran, Ardebil Province | |
| 34 km North East of Khaneh zeinian, Ardebil Province | |
| 35 km North East of Namin, Ardebil Province | |
| 40 km North of Kiladeh, Gilan Province | |
| Depth | 17 km |
| Agency | |
Faults within 150 km: |
|
| TALESH_F (Length: 258 km) , Distance to epicenter: 17 km | |
| SANGAVAR_F (Length: 61 km) , Distance to epicenter: 58 km | |
| BOZQUSH (Length: 70 km) , Distance to epicenter: 65 km | |
| Number of Phases | 12 |
| RMS | 0.4 |
| Number of Stations | 10 |
| Error in Latitude | >5.5 km |
| Error in Longitude | 7.3 km |
| Error in Depth | 9.6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 135602 | IIEES | GIDE | E | 442.1 | 0.37 | 2018-08-13 00:31:57 | 2018-08-13 03:50:00 | n |
| 135603 | IIEES | GIDE | N | 345.3 | 0.41 | 2018-08-13 00:31:59 | 2018-08-13 03:50:00 | n |
| 135604 | IIEES | THKV | E | 95.1 | 0.21 | 2018-08-13 00:32:33 | 2018-08-13 03:50:00 | n |
| 135605 | IIEES | THKV | N | 78.9 | 0.29 | 2018-08-13 00:32:33 | 2018-08-13 03:50:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | GRMI | Z | Pg | E | 2018-08-13 00:31:06 | 0.21 | y | 61.5 | 278 | |||
| IIEES | GRMI | N | Sg | E | 2018-08-13 00:31:14 | -0.17 | y | 61.5 | 278 | |||
| IIEES | ZNJK | Z | Pn | E | 2018-08-13 00:31:31 | 0.52 | y | 229 | 178 | |||
| IIEES | ZNJK | N | Sg | E | 2018-08-13 00:32:00 | -0.03 | y | 229 | 178 | |||
| IIEES | GIDE | Z | Pn | E | 2018-08-13 00:31:30 | -0.8 | y | 232 | 150 | |||
| IIEES | MAKU | Z | Pn | E | 2018-08-13 00:31:45 | 0.05 | y | 345 | 283 | |||
| IIEES | THKV | Z | Pn | E | 2018-08-13 00:31:48 | -0.42 | y | 373 | 146 | |||
| IIEES | CHTH | Z | Pn | E | 2018-08-13 00:31:51 | 0.33 | y | 386 | 144 | |||
| IIEES | SRSL | Z | Pn | E | 2018-08-13 00:31:51 | -0.19 | y | 396 | 226 | |||
| IIEES | DAMV | Z | Pn | E | 2018-08-13 00:32:00 | 0.7 | y | 457 | 138 | |||
| IIEES | ASAO | Z | Pn | E | 2018-08-13 00:32:02 | 0.11 | y | 482 | 164 | |||
| IIEES | SHRO | Z | Pn | E | 2018-08-13 00:32:32 | -0.29 | y | 723 | 112 | |||
