Magnitude |
:3.7 |
| Date & Time (UTC) | 2018-08-13 10:18:44.2 |
| Date & Time (Local) | 1397/5/22 14:48:44.2 |

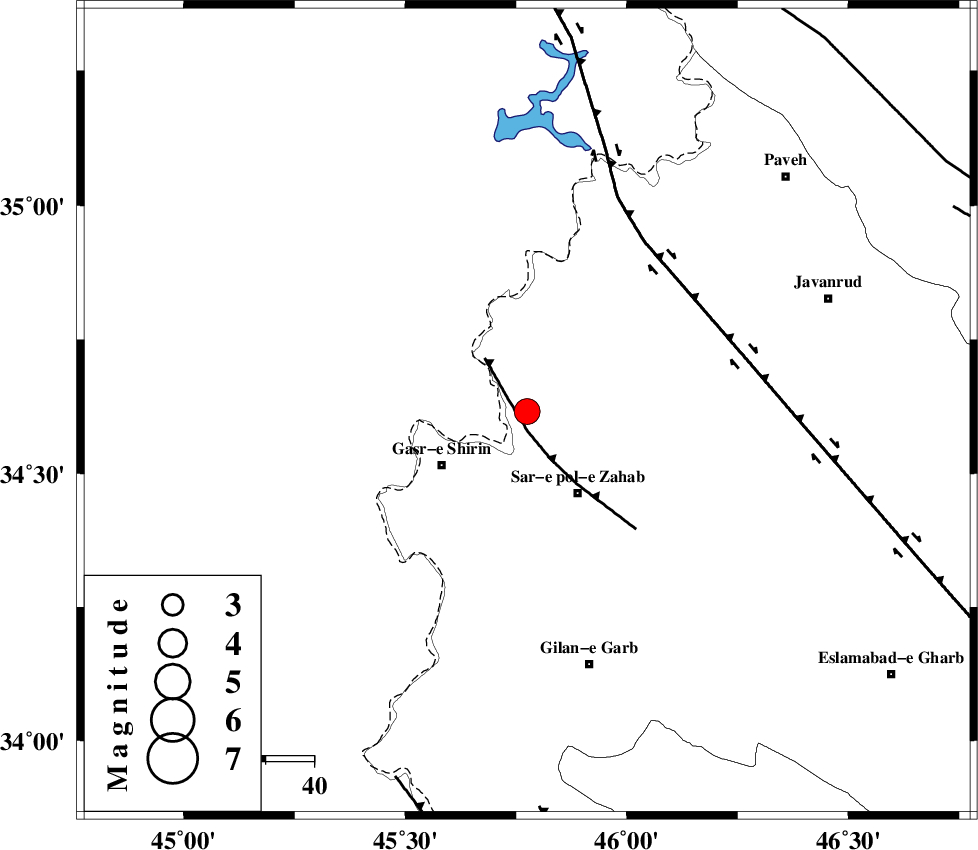

| Location | Lat:34.616 Lon: 45.775 |
| Region | Kermanshah Province, 17 km South of Tazehabad |
Nearest Cities |
|
| 6 km North of Mirmiru, Kermanshah Province | |
| 11 km of Gardehnu, Kermanshah Province | |
| 13 km North East of Aqabarar, Kermanshah Province | |
| 13 km West of Bazmirabad, Kermanshah Province | |
| 14 km North of Qareh belagh, Kermanshah Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| MFF8 (Length: 48 km) , Distance to epicenter: 4 km | |
| HZF4 (Length: 492 km) , Distance to epicenter: 43 km | |
| ZFF4 (Length: 128 km) , Distance to epicenter: 81 km | |
| Number of Phases | 17 |
| RMS | 0.5 |
| Number of Stations | 15 |
| Error in Latitude | >3 km |
| Error in Longitude | 5.7 km |
| Error in Depth | 6.7 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 135647 | IIEES | ILBA | E | 3909.1 | 0.51 | 2018-08-13 10:19:26 | 2018-08-14 06:02:00 | n |
| 135648 | IIEES | ILBA | N | 2858.4 | 0.32 | 2018-08-13 10:19:26 | 2018-08-14 06:02:00 | n |
| 135649 | IIEES | SNGE | E | 847.2 | 0.56 | 2018-08-13 10:19:34 | 2018-08-14 06:02:00 | n |
| 135650 | IIEES | SRSL | E | 562.8 | 0.57 | 2018-08-13 10:19:46 | 2018-08-14 06:02:00 | n |
| 135651 | IIEES | ASAO | E | 70.3 | 0.58 | 2018-08-13 10:20:42 | 2018-08-14 06:02:00 | n |
| 135652 | IIEES | KHMZ | E | 68 | 0.39 | 2018-08-13 10:20:45 | 2018-08-14 06:02:00 | n |
| 135653 | IIEES | KHMZ | N | 94.9 | 0.63 | 2018-08-13 10:20:48 | 2018-08-14 06:02:00 | n |
| 135654 | IIEES | GIDE | E | 69.5 | 0.58 | 2018-08-13 10:21:06 | 2018-08-14 06:02:00 | n |
| 135655 | IIEES | GIDE | N | 74.6 | 0.75 | 2018-08-13 10:21:10 | 2018-08-14 06:02:00 | n |
| 135656 | IIEES | THKV | E | 42.1 | 0.83 | 2018-08-13 10:21:14 | 2018-08-14 06:02:00 | n |
| 135657 | IIEES | GHVR | E | 42.4 | 0.57 | 2018-08-13 10:21:27 | 2018-08-14 06:02:00 | n |
| 135658 | IIEES | GHVR | N | 47.9 | 0.57 | 2018-08-13 10:21:29 | 2018-08-14 06:02:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | ILBA | Z | Pg | E | 2018-08-13 10:19:03 | -0.73 | y | 117 | 160 | |||
| IIEES | ILBA | E | Sg | E | 2018-08-13 10:19:18 | 0.36 | y | 117 | 160 | |||
| IIEES | SNGE | Z | Pg | E | 2018-08-13 10:19:08 | -0.79 | y | 153 | 69 | |||
| IIEES | SNGE | N | Sg | E | 2018-08-13 10:19:28 | -0.01 | y | 153 | 69 | |||
| IIEES | SRSL | Z | Pg | E | 2018-08-13 10:19:13 | -0.05 | y | 180 | 350 | |||
| IIEES | ZNJK | Z | Pn | E | 2018-08-13 10:19:35 | 0.45 | y | 348 | 48 | |||
| IIEES | ASAO | Z | Pn | E | 2018-08-13 10:19:40 | 0.52 | y | 390 | 90 | |||
| IIEES | KHMZ | Z | Pn | E | 2018-08-13 10:19:41 | 0.08 | y | 398 | 103 | |||
| IIEES | GIDE | Z | Pn | E | 2018-08-13 10:19:47 | -0.3 | y | 453 | 54 | |||
| IIEES | THKV | Z | Pn | E | 2018-08-13 10:19:51 | -0.75 | y | 486 | 71 | |||
| IIEES | GHVR | Z | Pn | E | 2018-08-13 10:19:54 | 0.33 | y | 502 | 90 | |||
| IIEES | GRMI | Z | Pn | E | 2018-08-13 10:19:53 | -0.3 | y | 502 | 22 | |||
| IIEES | CHTH | Z | Pn | E | 2018-08-13 10:19:55 | 0.6 | y | 507 | 72 | |||
| IIEES | MAKU | Z | Pn | E | 2018-08-13 10:19:58 | 0.37 | y | 535 | 350 | |||
| IIEES | DAMV | Z | Pn | E | 2018-08-13 10:20:04 | 0.77 | y | 576 | 77 | |||
| IIEES | NASN | Z | Pn | E | 2018-08-13 10:20:16 | 0.09 | y | 682 | 105 | |||
| IIEES | AHRM | Z | Pn | E | 2018-08-13 10:20:33 | -0.18 | y | 824 | 139 | |||
