Magnitude |
:3.5 |
| Date & Time (UTC) | 2018-08-16 01:33:10.2 |
| Date & Time (Local) | 1397/5/25 06:03:10.2 |

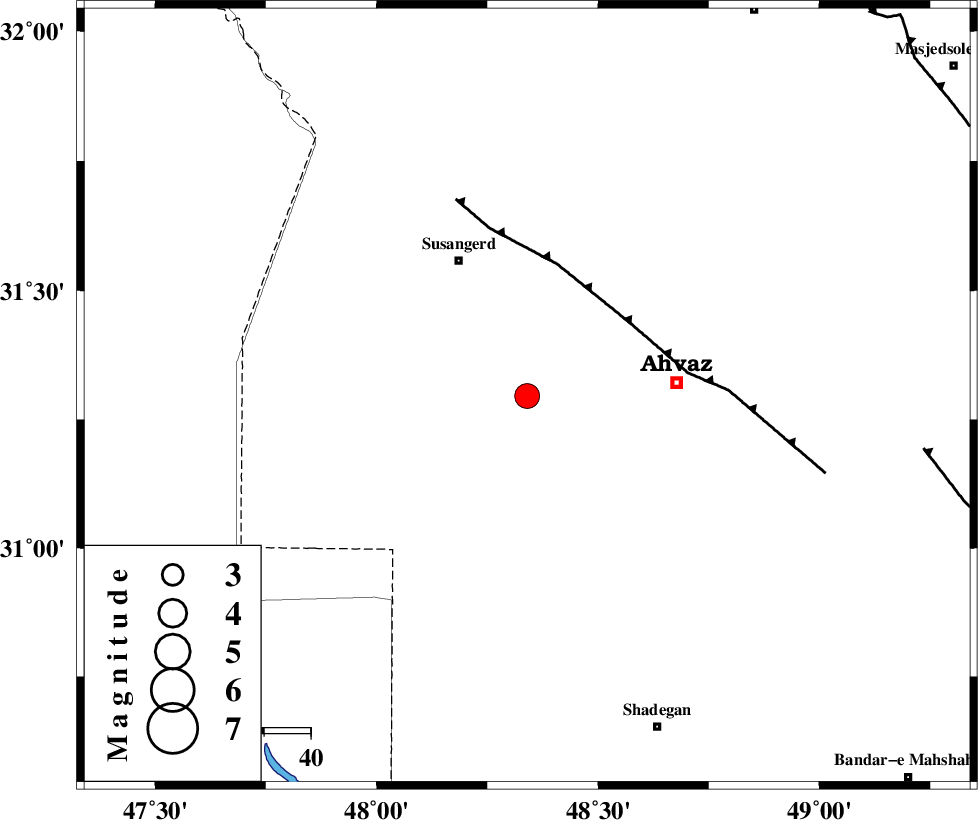

| Location | Lat:31.295 Lon: 48.34 |
| Region | Khoozestan Province, 32 km -West of Ahvaz |
Nearest Cities |
|
| 22 km South West of Dehkade, Khoozestan Province | |
| 22 km South of Hamidiyeh, Khoozestan Province | |
| 23 km North West of Bahr, Khoozestan Province | |
| 27 km South of Jalaliyeh, Khoozestan Province | |
| 31 km North West of Abunangeh, Khoozestan Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| AHVAZ_F (Length: 99 km) , Distance to epicenter: 27 km | |
| AGHAJARI_F (Length: 88 km) , Distance to epicenter: 86 km | |
| DEZFUL_EMBAYMENT (Length: 228 km) , Distance to epicenter: 110 km | |
| Number of Phases | 11 |
| RMS | 0.4 |
| Number of Stations | 10 |
| Error in Latitude | >4.8 km |
| Error in Longitude | 3.3 km |
| Error in Depth | 0 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 135756 | IIEES | ILBA | E | 241.2 | 0.33 | 2018-08-16 01:34:59 | 2018-08-18 08:29:00 | n |
| 135757 | IIEES | ILBA | N | 192 | 0.67 | 2018-08-16 01:35:03 | 2018-08-18 08:29:00 | n |
| 135758 | IIEES | AHRM | N | 71.3 | 0.43 | 2018-08-16 01:34:59 | 2018-08-18 08:29:00 | n |
| 135759 | IIEES | AHRM | E | 69.5 | 0.51 | 2018-08-16 01:35:08 | 2018-08-18 08:29:00 | n |
| 135760 | IIEES | ASAO | E | 45.4 | 0.56 | 2018-08-16 01:35:25 | 2018-08-18 08:29:00 | n |
| 135761 | IIEES | SNGE | E | 37.3 | 0.68 | 2018-08-16 01:35:05 | 2018-08-18 08:29:00 | n |
| 135762 | IIEES | SNGE | N | 36.6 | 0.17 | 2018-08-16 01:35:07 | 2018-08-18 08:29:00 | n |
| 135763 | IIEES | GHVR | E | 33.6 | 0.55 | 2018-08-16 01:35:13 | 2018-08-18 08:29:00 | n |
| 135764 | IIEES | GHVR | N | 46.3 | 0.64 | 2018-08-16 01:35:16 | 2018-08-18 08:29:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | KHMZ | Z | Pn | E | 2018-08-16 01:33:57 | 0.41 | y | 311 | 29 | |||
| IIEES | ILBA | Z | Pn | E | 2018-08-16 01:33:58 | 0.41 | y | 327 | 323 | |||
| IIEES | AHRM | Z | Pn | E | 2018-08-16 01:34:06 | -0.04 | y | 392 | 133 | |||
| IIEES | ASAO | Z | Pn | E | 2018-08-16 01:34:07 | 0.33 | y | 394 | 23 | |||
| IIEES | SNGE | Z | Pn | E | 2018-08-16 01:34:11 | -0.37 | y | 431 | 348 | |||
| IIEES | GHVR | Z | Pn | E | 2018-08-16 01:34:13 | 0.13 | y | 446 | 37 | |||
| IIEES | NASN | Z | Pn | E | 2018-08-16 01:34:10 | -3.74 | n | 4 | 454 | 67 | ||
| IIEES | CHTH | Z | Pn | E | 2018-08-16 01:34:28 | -0.62 | y | 573 | 26 | |||
| IIEES | DAMV | Z | Pn | E | 2018-08-16 01:34:30 | -0.37 | y | 587 | 34 | |||
| IIEES | ZNJK | Z | Pn | E | 2018-08-16 01:34:32 | 0.09 | y | 597 | 3 | |||
| IIEES | SRSL | Z | Pn | E | 2018-08-16 01:34:33 | -0.5 | y | 608 | 335 | |||
