Magnitude |
:3.6 |
| Date & Time (UTC) | 2018-08-21 02:27:21.6 |
| Date & Time (Local) | 1397/5/30 06:57:21.6 |
| Location | Lat:34.621 Lon: 46.3 |
| Region | Kermanshah Province, 27 km South-West of Javanrud |
Nearest Cities |
|
| 7 km of Mirabad, Kermanshah Province | |
| 14 km North of Zavleh olia, Kermanshah Province | |
| 17 km South East of Qolqoleh, Kermanshah Province | |
| 17 km West of Dolatabad, Kermanshah Province | |
| 21 km South West of Sarukhan, Kermanshah Province | |
| Depth | 15 km |
| Agency | |

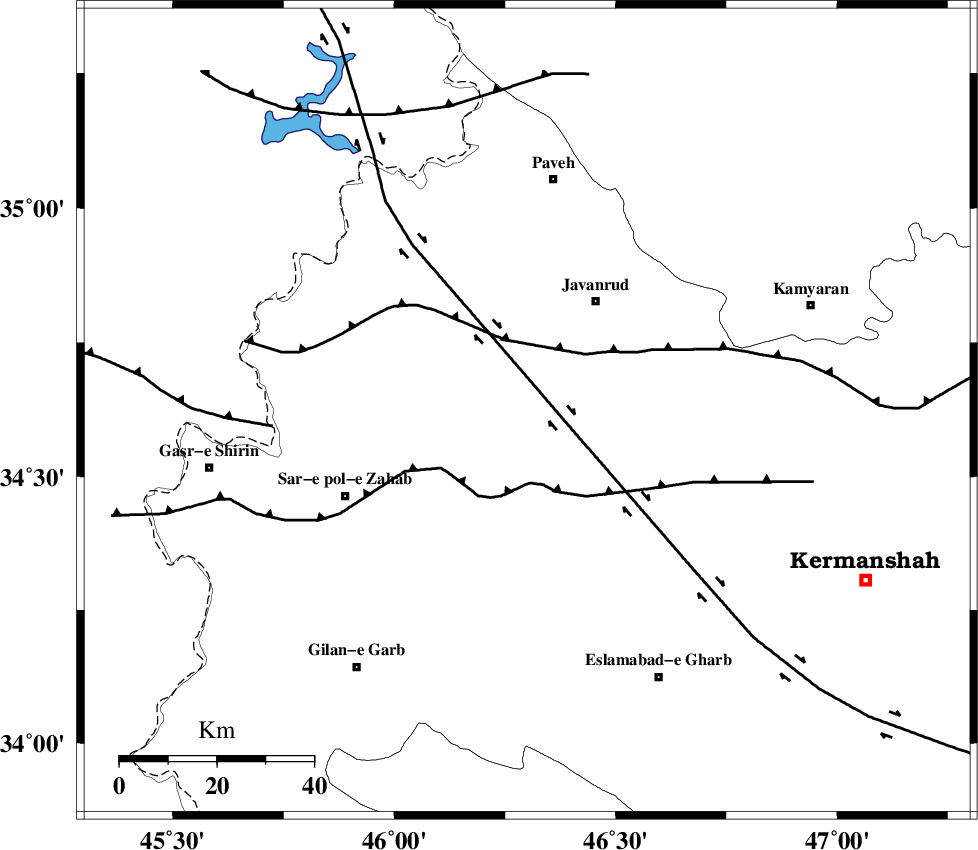

Faults within 150 km: |
|
| HZF4 (Length: 492 km) , Distance to epicenter: 11 km | |
| MFF8 (Length: 48 km) , Distance to epicenter: 36 km | |
| SARTAKHT_F (Length: 78 km) , Distance to epicenter: 58 km | |
| Number of Phases | 14 |
| RMS | 0.5 |
| Number of Stations | 12 |
| Error in Latitude | >3.7 km |
| Error in Longitude | 4.6 km |
| Error in Depth | 6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 135964 | IIEES | SNGE | N | 927.7 | 0.45 | 2018-08-21 02:27:57 | 2018-08-21 07:24:00 | n |
| 135965 | IIEES | ILBA | N | 1629 | 0.29 | 2018-08-21 02:28:02 | 2018-08-21 07:24:00 | n |
| 135966 | IIEES | ILBA | E | 2803.3 | 0.35 | 2018-08-21 02:28:04 | 2018-08-21 07:24:00 | n |
| 135967 | IIEES | SRSL | E | 2020.2 | 0.43 | 2018-08-21 02:28:21 | 2018-08-21 07:24:00 | n |
| 135968 | IIEES | SRSL | N | 2444.6 | 0.58 | 2018-08-21 02:28:22 | 2018-08-21 07:24:00 | n |
| 135969 | IIEES | KHMZ | E | 60.8 | 0.64 | 2018-08-21 02:29:12 | 2018-08-21 07:24:00 | n |
| 135970 | IIEES | KHMZ | N | 80.2 | 0.64 | 2018-08-21 02:29:19 | 2018-08-21 07:24:00 | n |
| 135971 | IIEES | GIDE | E | 62 | 0.54 | 2018-08-21 02:29:42 | 2018-08-21 07:24:00 | n |
| 135972 | IIEES | GIDE | N | 51.2 | 0.7 | 2018-08-21 02:29:45 | 2018-08-21 07:24:00 | n |
| 135973 | IIEES | THKV | E | 23.7 | 0.65 | 2018-08-21 02:29:46 | 2018-08-21 07:24:00 | n |
| 135974 | IIEES | GHVR | E | 39.2 | 0.4 | 2018-08-21 02:29:36 | 2018-08-21 07:24:00 | n |
| 135975 | IIEES | GHVR | N | 45 | 0.4 | 2018-08-21 02:29:44 | 2018-08-21 07:24:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | SNGE | Z | Pg | E | 2018-08-21 02:27:39 | -1.02 | y | 109 | 61 | |||
| IIEES | SNGE | N | Sg | E | 2018-08-21 02:27:53 | -0.07 | y | 109 | 61 | |||
| IIEES | ILBA | Z | Pg | E | 2018-08-21 02:27:40 | -0.13 | y | 111 | 184 | |||
| IIEES | SRSL | Z | Pg | E | 2018-08-21 02:27:53 | -0.05 | y | 193 | 336 | |||
| IIEES | SRSL | N | Sg | E | 2018-08-21 02:28:16 | -0.15 | y | 193 | 336 | |||
| IIEES | ZNJK | Z | Pn | E | 2018-08-21 02:28:09 | 1.38 | y | 314 | 43 | |||
| IIEES | KHMZ | Z | Pn | E | 2018-08-21 02:28:13 | 0.28 | y | 352 | 105 | |||
| IIEES | GIDE | Z | Pn | E | 2018-08-21 02:28:21 | 0.64 | y | 414 | 51 | |||
| IIEES | THKV | Z | Pn | E | 2018-08-21 02:28:23 | -0.22 | y | 441 | 70 | |||
| IIEES | GHVR | Z | Pn | E | 2018-08-21 02:28:25 | -0.32 | y | 454 | 91 | |||
| IIEES | CHTH | Z | Pn | E | 2018-08-21 02:28:26 | -0.39 | y | 462 | 71 | |||
| IIEES | GRMI | Z | Pn | E | 2018-08-21 02:28:29 | -0.13 | y | 486 | 17 | |||
| IIEES | DAMV | Z | Pn | E | 2018-08-21 02:28:35 | 0.49 | y | 529 | 76 | |||
| IIEES | MAKU | Z | Pn | E | 2018-08-21 02:28:36 | -0.17 | y | 545 | 345 | |||
