Magnitude |
:3.3 |
| Date & Time (UTC) | 2018-08-25 06:09:55.1 |
| Date & Time (Local) | 1397/6/3 10:39:55.1 |

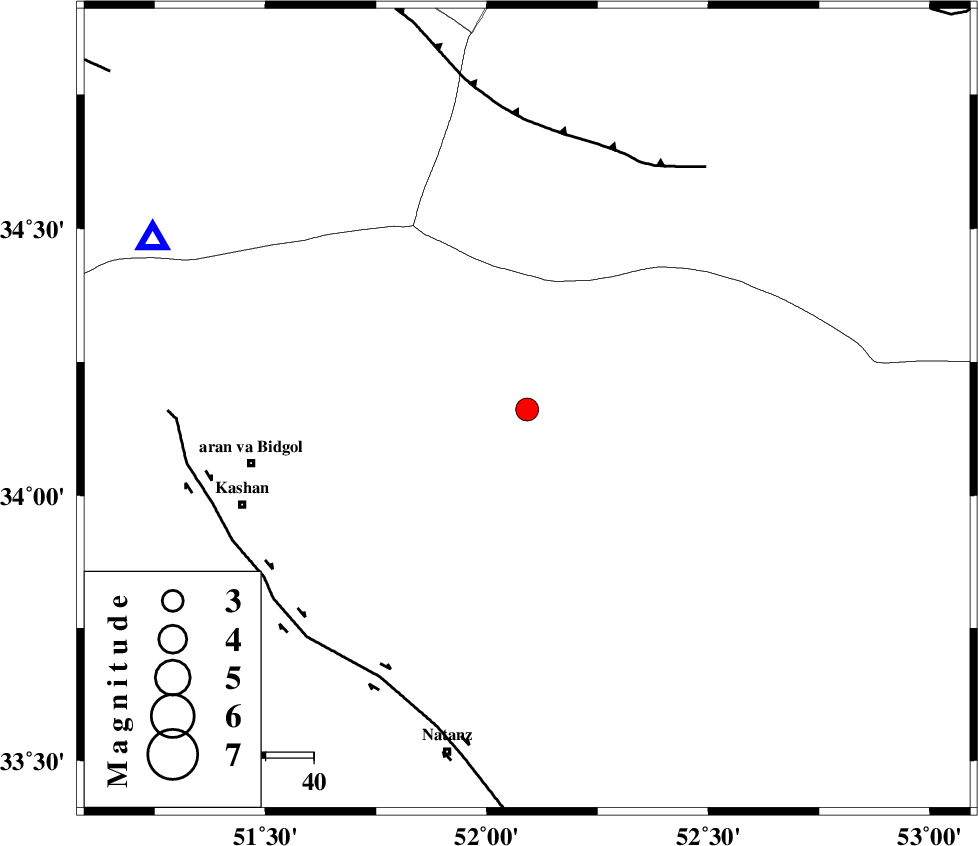

| Location | Lat:34.161 Lon: 52.091 |
| Region | Esfahan Province, 58 km -East of Aran va bidgol |
Nearest Cities |
|
| 26 km South East of Marnejab, Esfahan Province | |
| 40 km North East of Abuzeidabad, Esfahan Province | |
| 40 km North East of Hoseynabad, Esfahan Province | |
| 56 km North East of Arisman, Esfahan Province | |
| 58 km North East of Aran va bidgol, Esfahan Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| SIAHKUH_F (Length: 154 km) , Distance to epicenter: 57 km | |
| ZEFREH_F (Length: 124 km) , Distance to epicenter: 64 km | |
| KASHAN_F (Length: 44 km) , Distance to epicenter: 65 km | |
| Number of Phases | 16 |
| RMS | 0.2 |
| Number of Stations | 14 |
| Error in Latitude | >2 km |
| Error in Longitude | 2.4 km |
| Error in Depth | 3.9 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 135990 | IIEES | GHVR | E | 778.4 | 0.39 | 2018-08-25 06:10:28 | 2018-08-25 07:12:00 | n |
| 135991 | IIEES | NASN | N | 464.5 | 0.22 | 2018-08-25 06:10:44 | 2018-08-25 07:12:00 | n |
| 135992 | IIEES | NASN | E | 492.8 | 0.26 | 2018-08-25 06:10:44 | 2018-08-25 07:12:00 | n |
| 135993 | IIEES | CHTH | E | 195.9 | 0.45 | 2018-08-25 06:10:57 | 2018-08-25 07:12:00 | n |
| 135994 | IIEES | CHTH | N | 143.7 | 0.34 | 2018-08-25 06:11:02 | 2018-08-25 07:12:00 | n |
| 135995 | IIEES | THKV | N | 164.2 | 0.34 | 2018-08-25 06:11:01 | 2018-08-25 07:12:00 | n |
| 135996 | IIEES | THKV | E | 206.1 | 0.45 | 2018-08-25 06:11:05 | 2018-08-25 07:12:00 | n |
| 135997 | IIEES | YZKH | N | 59.9 | 0.33 | 2018-08-25 06:11:24 | 2018-08-25 07:12:00 | n |
| 135998 | IIEES | GIDE | E | 65.9 | 0.49 | 2018-08-25 06:11:49 | 2018-08-25 07:12:00 | n |
| 135999 | IIEES | GIDE | N | 89.6 | 0.49 | 2018-08-25 06:11:50 | 2018-08-25 07:12:00 | n |
| 136000 | IIEES | TABS | N | 19 | 0.58 | 2018-08-25 06:12:32 | 2018-08-25 07:12:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | GHVR | Z | Pg | E | 2018-08-25 06:10:10 | 0.34 | y | 85.5 | 295 | |||
| IIEES | GHVR | N | Sg | E | 2018-08-25 06:10:20 | 0.2 | y | 85.5 | 295 | |||
| IIEES | DAMV | Z | Pg | E | 2018-08-25 06:10:21 | -0.31 | y | 163 | 356 | |||
| IIEES | NASN | Z | Pg | E | 2018-08-25 06:10:22 | -0.07 | y | 165 | 156 | |||
| IIEES | NASN | N | Sg | E | 2018-08-25 06:10:42 | -0.2 | y | 165 | 156 | |||
| IIEES | ASAO | Z | Pg | E | 2018-08-25 06:10:27 | 0.03 | y | 195 | 283 | |||
| IIEES | KHMZ | Z | Pn | E | 2018-08-25 06:10:27 | -0.28 | y | 202 | 257 | |||
| IIEES | CHTH | Z | Pn | E | 2018-08-25 06:10:28 | -0.37 | y | 213 | 336 | |||
| IIEES | THKV | Z | Pn | E | 2018-08-25 06:10:30 | 0.18 | y | 224 | 331 | |||
| IIEES | YZKH | Z | Pn | E | 2018-08-25 06:10:41 | 0.43 | y | 305 | 129 | |||
| IIEES | GIDE | Z | Pn | E | 2018-08-25 06:10:47 | -0.23 | y | 365 | 328 | |||
| IIEES | SHRO | Z | Pn | E | 2018-08-25 06:10:54 | 0.14 | y | 412 | 59 | |||
| IIEES | ZNJK | Z | Pn | E | 2018-08-25 06:10:54 | 0 | y | 416 | 313 | |||
| IIEES | TABS | Z | Pn | E | 2018-08-25 06:11:01 | 0.21 | y | 468 | 96 | |||
| IIEES | MRVT | Z | Pn | E | 2018-08-25 06:11:08 | 0.09 | y | 530 | 42 | |||
| IIEES | GRMI | Z | Pn | E | 2018-08-25 06:11:21 | -0.07 | y | 638 | 325 | |||
