Magnitude |
:4.5 |
| Date & Time (UTC) | 2018-08-23 05:18:59.1 |
| Date & Time (Local) | 1397/6/1 09:48:59.1 |

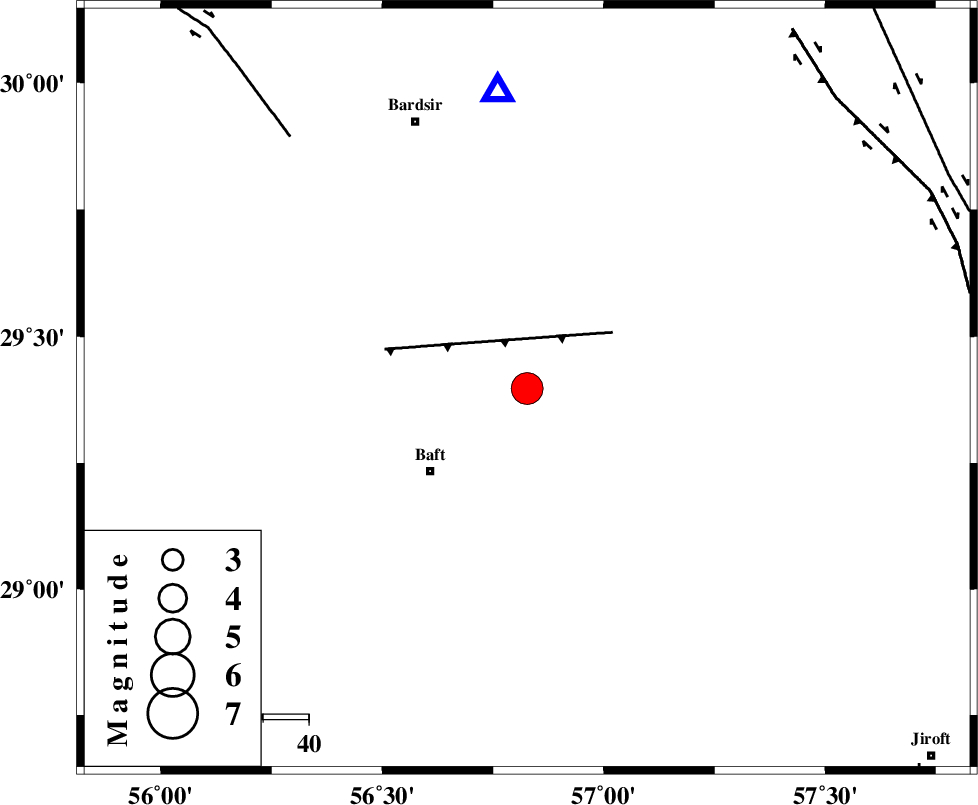

| Location | Lat:29.397 Lon: 56.827 |
| Region | Kerman Province, 28 km North-East of Baft |
Nearest Cities |
|
| 9 km North of Askar, Kerman Province | |
| 11 km North of Siyah bonueyeh, Kerman Province | |
| 13 km South of Lalehzar, Kerman Province | |
| 14 km North of Rabar, Kerman Province | |
| 20 km North East of Karin, Kerman Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| LALEHZAR_F (Length: 52 km) , Distance to epicenter: 22 km | |
| RAFSANJAN_F (Length: 129 km) , Distance to epicenter: 76 km | |
| GOWK_F (Length: 152 km) , Distance to epicenter: 93 km | |
| Number of Phases | 22 |
| RMS | 0.7 |
| Number of Stations | 21 |
| Error in Latitude | >5.2 km |
| Error in Longitude | 3.9 km |
| Error in Depth | 0 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 136001 | IIEES | KRBR | E | 31942.7 | 0.31 | 2018-08-23 05:19:30 | 2018-08-25 07:58:00 | n |
| 136002 | IIEES | KRBR | N | 47871.9 | 0.41 | 2018-08-23 05:19:31 | 2018-08-25 07:58:00 | n |
| 136003 | IIEES | BSRN | E | 901.5 | 0.6 | 2018-08-23 05:20:48 | 2018-08-25 07:58:00 | n |
| 136004 | IIEES | BSRN | N | 888.7 | 0.36 | 2018-08-23 05:20:48 | 2018-08-25 07:58:00 | n |
| 136005 | IIEES | YZKH | N | 369.4 | 0.49 | 2018-08-23 05:21:07 | 2018-08-25 07:58:00 | n |
| 136006 | IIEES | TABS | N | 384.8 | 0.41 | 2018-08-23 05:21:31 | 2018-08-25 07:58:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | KRBR | Z | Pg | E | 2018-08-23 05:19:18 | 7.3 | n | 4 | 65.1 | 354 | ||
| IIEES | BNDS | Z | Pn | E | 2018-08-23 05:19:36 | 0.99 | y | 231 | 196 | |||
| IIEES | BSRN | Z | Pn | E | 2018-08-23 05:19:50 | -0.98 | y | 360 | 37 | |||
| IIEES | ZHSF | Z | Pn | E | 2018-08-23 05:19:54 | -0.01 | y | 384 | 85 | |||
| IIEES | GHIR | Z | Pn | E | 2018-08-23 05:19:54 | -1.81 | y | 394 | 253 | |||
| IIEES | YZKH | Z | Pn | E | 2018-08-23 05:19:56 | 0.4 | y | 395 | 328 | |||
| IIEES | TABS | Z | Pn | E | 2018-08-23 05:20:05 | 0.15 | y | 472 | 3 | |||
| IIEES | NASN | Z | Pn | E | 2018-08-23 05:20:14 | 0.53 | y | 538 | 316 | |||
| IIEES | AHRM | Z | Pn | E | 2018-08-23 05:20:13 | -0.31 | y | 541 | 265 | |||
| IIEES | CHBR | Z | Pn | E | 2018-08-23 05:20:13 | -2.02 | n | 4 | 555 | 139 | ||
| IIEES | SHRT | Z | Pn | E | 2018-08-23 05:20:18 | 0.14 | y | 575 | 34 | |||
| IIEES | SHRO | Z | Pn | E | 2018-08-23 05:20:38 | -0.33 | y | 737 | 354 | |||
| IIEES | GHVR | Z | Pn | E | 2018-08-23 05:20:43 | 0.59 | y | 772 | 318 | |||
| IIEES | KHMZ | Z | Pn | E | 2018-08-23 05:20:47 | 0.05 | y | 810 | 308 | |||
| IIEES | DAMV | Z | Pn | E | 2018-08-23 05:20:50 | 0.25 | y | 828 | 328 | |||
| IIEES | ASAO | Z | Pn | E | 2018-08-23 05:20:54 | 0.49 | y | 860 | 313 | |||
| IIEES | CHTH | Z | Pn | E | 2018-08-23 05:20:59 | 0.51 | y | 898 | 325 | |||
| IIEES | MRVT | Z | Pn | E | 2018-08-23 05:21:01 | 0.63 | y | 919 | 356 | |||
| IIEES | BJRD | Z | Pn | E | 2018-08-23 05:21:01 | -0.16 | y | 923 | 3 | |||
| IIEES | GIDE | Z | Pn | E | 2018-08-23 05:21:17 | -0.08 | y | 1054 | 324 | |||
| IIEES | ZNJK | Z | Pn | E | 2018-08-23 05:21:25 | 0.59 | y | 1108 | 319 | |||
| IIEES | GRMI | Z | Pn | E | 2018-08-23 05:21:51 | -0.09 | y | 1329 | 324 | |||
