Magnitude |
:3.5 |
| Date & Time (UTC) | 2018-08-27 05:16:53.1 |
| Date & Time (Local) | 1397/6/5 09:46:53.1 |

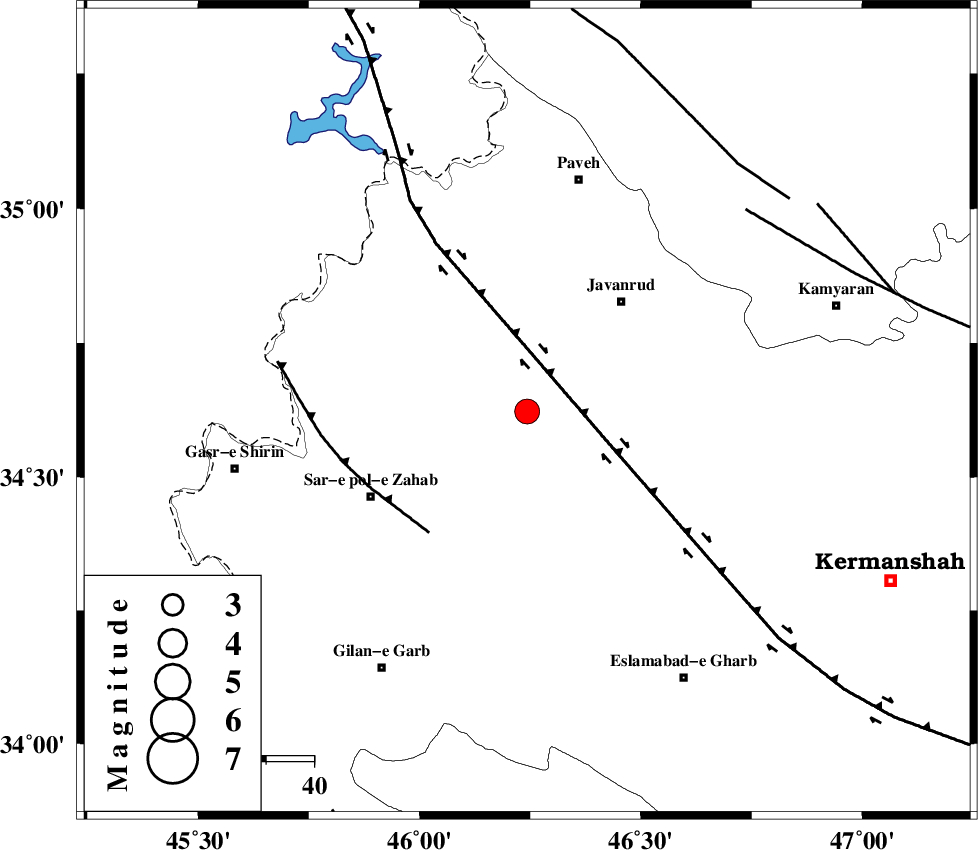

| Location | Lat:34.622 Lon: 46.243 |
| Region | Kermanshah Province, 30 km South-West of Javanrud |
Nearest Cities |
|
| 9 km of Mirabad, Kermanshah Province | |
| 14 km South of Qolqoleh, Kermanshah Province | |
| 15 km North of Zavleh olia, Kermanshah Province | |
| 22 km West of Dolatabad, Kermanshah Province | |
| 24 km South West of Sarukhan, Kermanshah Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| HZF4 (Length: 492 km) , Distance to epicenter: 15 km | |
| MFF8 (Length: 48 km) , Distance to epicenter: 32 km | |
| SARTAKHT_F (Length: 78 km) , Distance to epicenter: 62 km | |
| Number of Phases | 14 |
| RMS | 0.4 |
| Number of Stations | 11 |
| Error in Latitude | >2.1 km |
| Error in Longitude | 3.9 km |
| Error in Depth | 5.9 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 136120 | IIEES | ILBA | E | 1396.3 | 0.46 | 2018-08-27 05:17:27 | 2018-08-27 06:57:00 | n |
| 136121 | IIEES | ILBA | N | 1002.4 | 0.41 | 2018-08-27 05:17:33 | 2018-08-27 06:57:00 | n |
| 136122 | IIEES | SRSL | E | 462.4 | 0.58 | 2018-08-27 05:17:53 | 2018-08-27 06:57:00 | n |
| 136123 | IIEES | SRSL | N | 804.9 | 0.58 | 2018-08-27 05:17:55 | 2018-08-27 06:57:00 | n |
| 136124 | IIEES | GHVR | N | 27.6 | 0.45 | 2018-08-27 05:19:14 | 2018-08-27 06:57:00 | n |
| 136125 | IIEES | GHVR | E | 25.5 | 0.68 | 2018-08-27 05:19:14 | 2018-08-27 06:57:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | ILBA | Z | Pg | E | 2018-08-27 05:17:11 | -0.32 | y | 111 | 182 | |||
| IIEES | ILBA | N | Sg | E | 2018-08-27 05:17:25 | 0.29 | y | 111 | 182 | |||
| IIEES | SNGE | Z | Pg | E | 2018-08-27 05:17:11 | -0.84 | y | 114 | 62 | |||
| IIEES | SNGE | N | Sg | E | 2018-08-27 05:17:26 | 0.12 | y | 114 | 62 | |||
| IIEES | SRSL | Z | Pg | E | 2018-08-27 05:17:24 | -0.39 | y | 191 | 338 | |||
| IIEES | SRSL | N | Sg | E | 2018-08-27 05:17:47 | 0.19 | y | 191 | 338 | |||
| IIEES | ZNJK | Z | Pn | E | 2018-08-27 05:17:40 | -0.04 | y | 317 | 44 | |||
| IIEES | ASAO | Z | Pn | E | 2018-08-27 05:17:43 | -0.08 | y | 347 | 90 | |||
| IIEES | KHMZ | Z | Pn | E | 2018-08-27 05:17:45 | -0.16 | y | 357 | 105 | |||
| IIEES | GIDE | Z | Pn | E | 2018-08-27 05:17:53 | 0.7 | y | 418 | 51 | |||
| IIEES | GHVR | Z | Pn | E | 2018-08-27 05:17:57 | 0.17 | y | 459 | 91 | |||
| IIEES | CHTH | Z | Pn | E | 2018-08-27 05:17:58 | -0.03 | y | 467 | 71 | |||
| IIEES | GRMI | Z | Pn | E | 2018-08-27 05:18:01 | 0.44 | y | 487 | 17 | |||
| IIEES | DAMV | Z | Pn | E | 2018-08-27 05:18:07 | 0.43 | y | 534 | 76 | |||
