Magnitude |
:3.6 |
| Date & Time (UTC) | 2018-08-28 10:26:57.0 |
| Date & Time (Local) | 1397/6/6 14:56:57.0 |

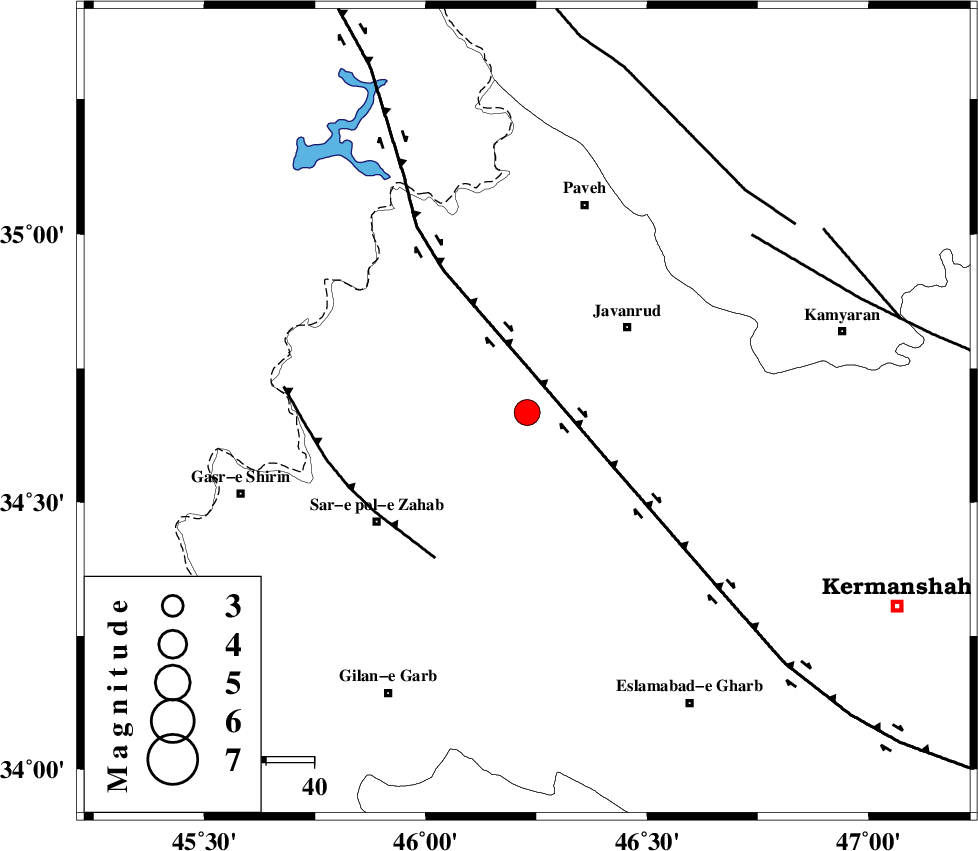

| Location | Lat:34.668 Lon: 46.229 |
| Region | Kermanshah Province, 27 km South-West of Javanrud |
Nearest Cities |
|
| 8 km of Mirabad, Kermanshah Province | |
| 9 km of Qolqoleh, Kermanshah Province | |
| 20 km South of Shervineh, Kermanshah Province | |
| 20 km North of Zavleh olia, Kermanshah Province | |
| 22 km West of Dolatabad, Kermanshah Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| HZF4 (Length: 492 km) , Distance to epicenter: 9 km | |
| MFF8 (Length: 48 km) , Distance to epicenter: 36 km | |
| SARTAKHT_F (Length: 78 km) , Distance to epicenter: 59 km | |
| Number of Phases | 12 |
| RMS | 0.2 |
| Number of Stations | 11 |
| Error in Latitude | >1.2 km |
| Error in Longitude | 3.3 km |
| Error in Depth | 3.9 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 136175 | IIEES | SNGE | N | 1156.3 | 0.58 | 2018-08-28 10:27:34 | 2018-08-29 04:50:00 | n |
| 136176 | IIEES | ILBA | E | 2177.7 | 0.51 | 2018-08-28 10:27:37 | 2018-08-29 04:50:00 | n |
| 136177 | IIEES | ILBA | N | 1744.5 | 0.37 | 2018-08-28 10:27:37 | 2018-08-29 04:50:00 | n |
| 136178 | IIEES | SRSL | E | 606 | 0.51 | 2018-08-28 10:27:57 | 2018-08-29 04:50:00 | n |
| 136179 | IIEES | SRSL | N | 862.6 | 0.44 | 2018-08-28 10:27:57 | 2018-08-29 04:50:00 | n |
| 136180 | IIEES | KHMZ | N | 81.1 | 0.75 | 2018-08-28 10:28:56 | 2018-08-29 04:50:00 | n |
| 136181 | IIEES | GHVR | E | 51.1 | 0.68 | 2018-08-28 10:29:22 | 2018-08-29 04:50:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | SNGE | Z | Pg | E | 2018-08-28 10:27:15 | -0.15 | y | 112 | 65 | |||
| IIEES | ILBA | Z | Pg | E | 2018-08-28 10:27:16 | -0.06 | y | 116 | 181 | |||
| IIEES | ILBA | N | Sg | E | 2018-08-28 10:27:30 | -0.04 | y | 116 | 181 | |||
| IIEES | SRSL | Z | Pg | E | 2018-08-28 10:27:27 | 0.09 | y | 186 | 337 | |||
| IIEES | ZNJK | Z | Pn | E | 2018-08-28 10:27:43 | -0.19 | y | 314 | 44 | |||
| IIEES | ASAO | Z | Pn | E | 2018-08-28 10:27:48 | 0.19 | y | 348 | 91 | |||
| IIEES | KHMZ | Z | Pn | E | 2018-08-28 10:27:49 | 0.21 | y | 359 | 106 | |||
| IIEES | THKV | Z | Pn | E | 2018-08-28 10:28:00 | 0.1 | y | 445 | 71 | |||
| IIEES | GHVR | Z | Pn | E | 2018-08-28 10:28:02 | 0.13 | y | 461 | 91 | |||
| IIEES | CHTH | Z | Pn | E | 2018-08-28 10:28:02 | -0.28 | y | 466 | 71 | |||
| IIEES | DAMV | Z | Pn | E | 2018-08-28 10:28:11 | 0.11 | y | 534 | 77 | |||
| IIEES | NASN | Z | Pn | E | 2018-08-28 10:28:24 | -0.09 | y | 644 | 107 | |||
