Magnitude |
:3.6 |
| Date & Time (UTC) | 2018-09-08 17:50:25.4 |
| Date & Time (Local) | 1397/6/17 22:20:25.4 |

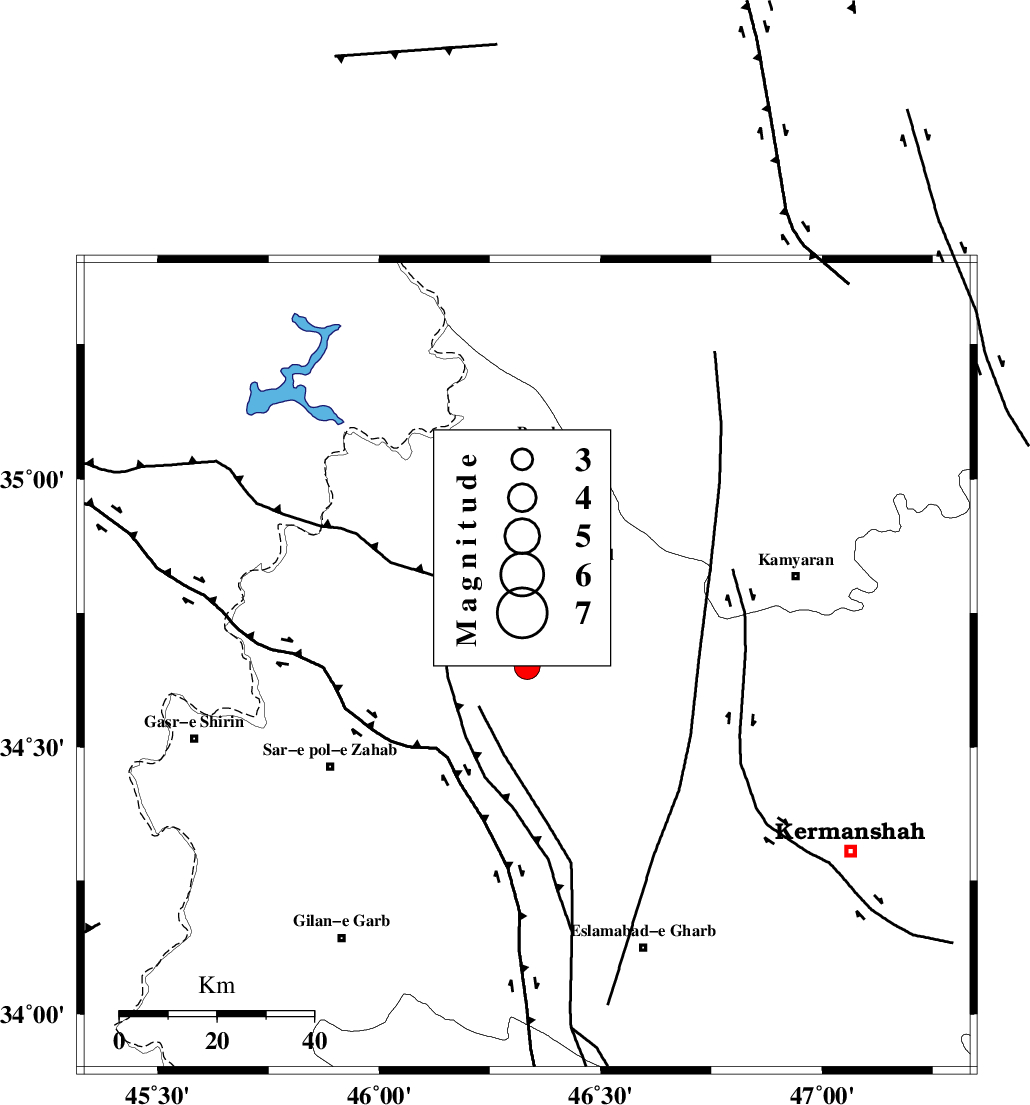

| Location | Lat:34.651 Lon: 46.334 |
| Region | Kermanshah Province, 22 km South-West of Javanrud |
Nearest Cities |
|
| 4 km of Mirabad, Kermanshah Province | |
| 13 km West of Dolatabad, Kermanshah Province | |
| 16 km South West of Sarukhan, Kermanshah Province | |
| 17 km North of Zavleh olia, Kermanshah Province | |
| 18 km East of Qolqoleh, Kermanshah Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| HZF4 (Length: 492 km) , Distance to epicenter: 10 km | |
| MFF8 (Length: 48 km) , Distance to epicenter: 40 km | |
| SARTAKHT_F (Length: 78 km) , Distance to epicenter: 53 km | |
| Number of Phases | 14 |
| RMS | 0.6 |
| Number of Stations | 12 |
| Error in Latitude | >2.9 km |
| Error in Longitude | 7.2 km |
| Error in Depth | 9.1 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 136516 | IIEES | SNGE | N | 1432.9 | 0.46 | 2018-09-08 17:51:00 | 2018-09-09 05:21:00 | n |
| 136517 | IIEES | ILBA | N | 1500.2 | 0.29 | 2018-09-08 17:51:01 | 2018-09-09 05:21:00 | n |
| 136518 | IIEES | ILBA | E | 1656.3 | 0.4 | 2018-09-08 17:51:01 | 2018-09-09 05:21:00 | n |
| 136519 | IIEES | SRSL | N | 1005.8 | 0.88 | 2018-09-08 17:51:25 | 2018-09-09 05:21:00 | n |
| 136520 | IIEES | SRSL | E | 491.9 | 0.41 | 2018-09-08 17:51:25 | 2018-09-09 05:21:00 | n |
| 136521 | IIEES | GIDE | N | 47 | 0.66 | 2018-09-08 17:52:36 | 2018-09-09 05:21:00 | n |
| 136522 | IIEES | GHVR | N | 49.1 | 0.8 | 2018-09-08 17:52:55 | 2018-09-09 05:21:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | SNGE | Z | Pg | E | 2018-09-08 17:50:42 | -1.12 | y | 105 | 62 | |||
| IIEES | ILBA | Z | Pg | E | 2018-09-08 17:50:44 | -0.18 | y | 114 | 186 | |||
| IIEES | ILBA | N | Sg | E | 2018-09-08 17:50:58 | 0.05 | y | 114 | 186 | |||
| IIEES | SRSL | Z | Pg | E | 2018-09-08 17:50:56 | -0.41 | y | 192 | 335 | |||
| IIEES | SRSL | N | Sg | E | 2018-09-08 17:51:19 | -0.11 | y | 192 | 335 | |||
| IIEES | ZNJK | Z | Pn | E | 2018-09-08 17:51:11 | 0.34 | y | 309 | 43 | |||
| IIEES | ASAO | Z | Pn | E | 2018-09-08 17:51:15 | -0.03 | y | 339 | 91 | |||
| IIEES | KHMZ | Z | Pn | E | 2018-09-08 17:51:16 | -0.25 | y | 350 | 106 | |||
| IIEES | GIDE | Z | Pn | E | 2018-09-08 17:51:23 | -0.13 | y | 410 | 51 | |||
| IIEES | THKV | Z | Pn | E | 2018-09-08 17:51:28 | 1.32 | y | 437 | 70 | |||
| IIEES | GHVR | Z | Pn | E | 2018-09-08 17:51:29 | 0 | y | 451 | 91 | |||
| IIEES | GRMI | Z | Pn | E | 2018-09-08 17:51:33 | 0.14 | y | 482 | 16 | |||
| IIEES | DAMV | Z | Pn | E | 2018-09-08 17:51:38 | 0.25 | y | 525 | 76 | |||
| IIEES | MAKU | Z | Pn | E | 2018-09-08 17:51:41 | 0.94 | y | 542 | 345 | |||
