Magnitude |
:4.1 |
| Date & Time (UTC) | 2018-09-09 23:53:55.7 |
| Date & Time (Local) | 1397/6/19 04:23:55.7 |

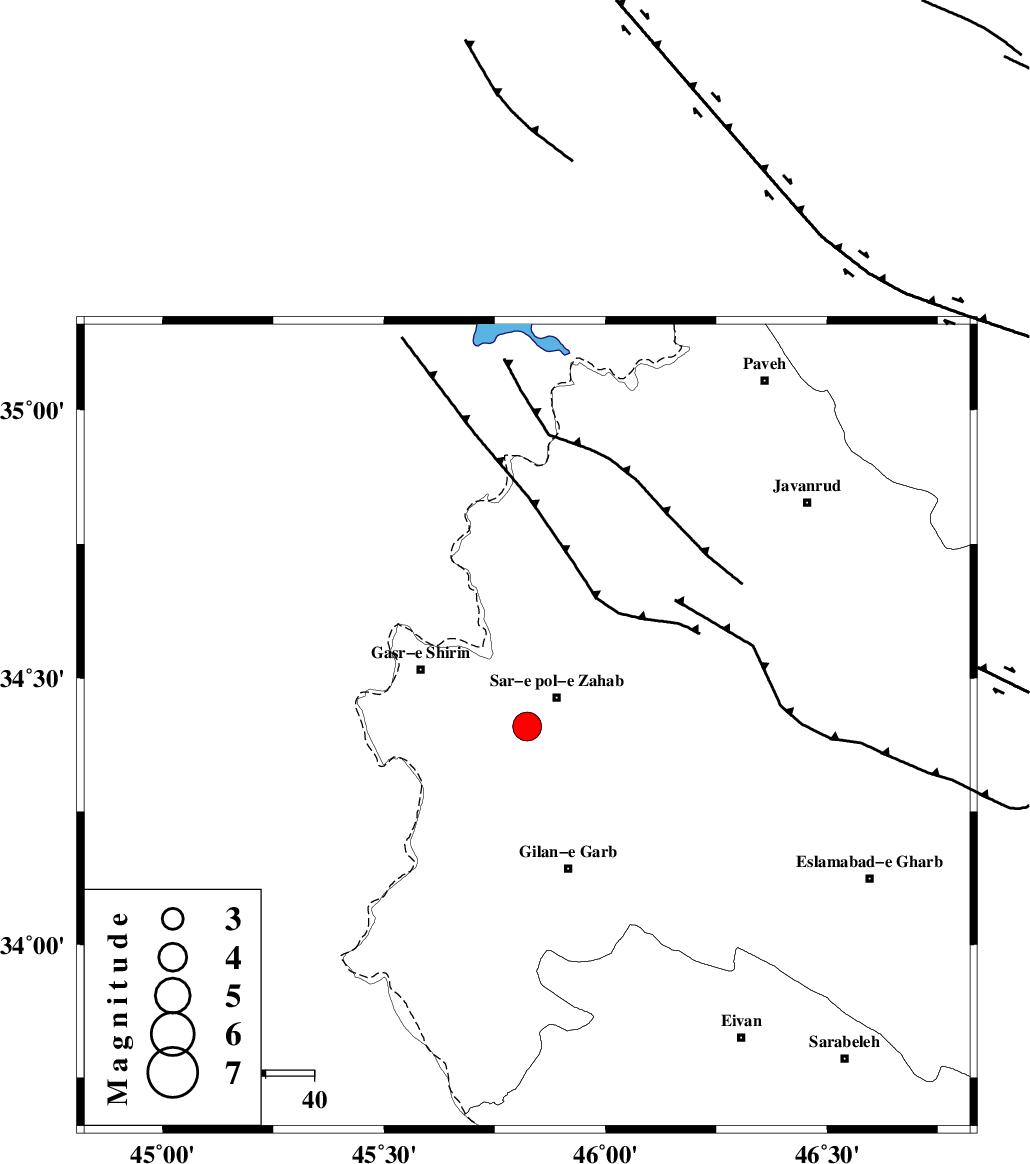

| Location | Lat:34.409 Lon: 45.823 |
| Region | Kermanshah Province, 9 km of Sar-e pol-e zahab |
Nearest Cities |
|
| 9 km of Sar-e pol-e zahab, Kermanshah Province | |
| 9 km North of Tarkveys, Kermanshah Province | |
| 10 km of Qareh belagh, Kermanshah Province | |
| 11 km North of Chub baghan, Kermanshah Province | |
| 18 km South of Mirmiru, Kermanshah Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| MFF8 (Length: 48 km) , Distance to epicenter: 10 km | |
| HZF4 (Length: 492 km) , Distance to epicenter: 53 km | |
| MFF7 (Length: 99 km) , Distance to epicenter: 59 km | |
| Number of Phases | 17 |
| RMS | 0.4 |
| Number of Stations | 16 |
| Error in Latitude | >2.8 km |
| Error in Longitude | 5.9 km |
| Error in Depth | 4.3 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 136526 | IIEES | ILBA | E | 4031.9 | 0.42 | 2018-09-09 23:54:31 | 2018-09-10 05:49:00 | n |
| 136527 | IIEES | SNGE | N | 1585.4 | 0.46 | 2018-09-09 23:54:49 | 2018-09-10 05:49:00 | n |
| 136528 | IIEES | SRSL | E | 1449.7 | 0.54 | 2018-09-09 23:55:00 | 2018-09-10 05:49:00 | n |
| 136529 | IIEES | SRSL | N | 3911.7 | 0.53 | 2018-09-09 23:55:02 | 2018-09-10 05:49:00 | n |
| 136530 | IIEES | GIDE | N | 127 | 0.62 | 2018-09-09 23:56:17 | 2018-09-10 05:49:00 | n |
| 136531 | IIEES | GIDE | E | 125.4 | 0.53 | 2018-09-09 23:56:35 | 2018-09-10 05:49:00 | n |
| 136532 | IIEES | GHVR | N | 150.5 | 0.85 | 2018-09-09 23:56:43 | 2018-09-10 05:49:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | ILBA | Z | Pg | E | 2018-09-09 23:54:11 | 0.11 | y | 94 | 158 | |||
| IIEES | SNGE | Z | Pg | E | 2018-09-09 23:54:21 | -0.55 | y | 159 | 61 | |||
| IIEES | SRSL | Z | Pn | E | 2018-09-09 23:54:28 | -0.14 | y | 203 | 350 | |||
| IIEES | SRSL | N | Sg | E | 2018-09-09 23:54:53 | -0.18 | y | 203 | 350 | |||
| IIEES | ZNJK | Z | Pn | E | 2018-09-09 23:54:48 | 0.28 | y | 361 | 45 | |||
| IIEES | ASAO | Z | Pn | E | 2018-09-09 23:54:51 | 0.29 | y | 386 | 87 | |||
| IIEES | KHMZ | Z | Pn | E | 2018-09-09 23:54:51 | 0.14 | y | 389 | 100 | |||
| IIEES | GIDE | Z | Pn | E | 2018-09-09 23:55:01 | 0.74 | y | 463 | 52 | |||
| IIEES | THKV | Z | Pn | E | 2018-09-09 23:55:04 | -0.03 | y | 490 | 69 | |||
| IIEES | GHVR | Z | Pn | E | 2018-09-09 23:55:05 | -0.06 | y | 498 | 88 | |||
| IIEES | CHTH | Z | Pn | E | 2018-09-09 23:55:07 | 0.24 | y | 511 | 70 | |||
| IIEES | GRMI | Z | Pn | E | 2018-09-09 23:55:08 | -0.01 | y | 522 | 20 | |||
| IIEES | MAKU | Z | Pn | E | 2018-09-09 23:55:13 | 0.25 | y | 558 | 350 | |||
| IIEES | DAMV | Z | Pn | E | 2018-09-09 23:55:15 | 0.27 | y | 577 | 75 | |||
| IIEES | NASN | Z | Pn | E | 2018-09-09 23:55:26 | -0.2 | y | 672 | 103 | |||
| IIEES | AHRM | Z | Pn | E | 2018-09-09 23:55:42 | -0.6 | y | 804 | 138 | |||
| IIEES | YZKH | Z | Pn | E | 2018-09-09 23:55:47 | -1.42 | y | 846 | 103 | |||
