Magnitude |
:3 |
| Date & Time (UTC) | 2018-09-09 15:41:55.6 |
| Date & Time (Local) | 1397/6/18 20:11:55.6 |

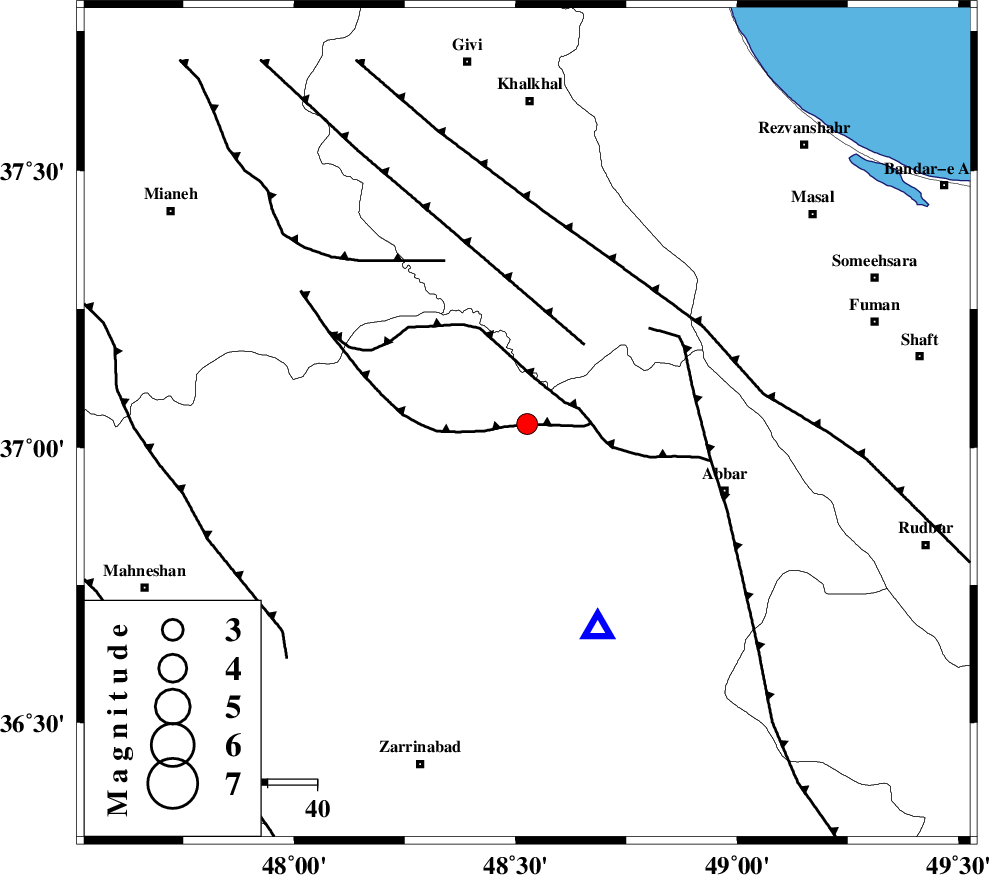

| Location | Lat:37.042 Lon: 48.526 |
| Region | Zanjan Province, 41 km North of Zanjan |
Nearest Cities |
|
| 9 km North of Biuk dagh, Zanjan Province | |
| 13 km North East of Armaghankhaneh, Zanjan Province | |
| 18 km South West of Barandaq, Ardebil Province | |
| 23 km South of Barandaq, Ardebil Province | |
| 23 km East of Qebleh belaghi, Zanjan Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| MASULEL_F (Length: 90 km) , Distance to epicenter: 26 km | |
| ZANJAN_F (Length: 137 km) , Distance to epicenter: 37 km | |
| RUDBAR_F (Length: 93 km) , Distance to epicenter: 44 km | |
| Number of Phases | 12 |
| RMS | 0.5 |
| Number of Stations | 10 |
| Error in Latitude | >3.2 km |
| Error in Longitude | 6.9 km |
| Error in Depth | 6.2 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 136584 | IIEES | GIDE | E | 279.8 | 0.33 | 2018-09-09 15:42:41 | 2018-09-10 08:11:00 | n |
| 136585 | IIEES | GIDE | N | 359.7 | 0.33 | 2018-09-09 15:42:42 | 2018-09-10 08:11:00 | n |
| 136586 | IIEES | THKV | N | 102.7 | 0.45 | 2018-09-09 15:43:08 | 2018-09-10 08:11:00 | n |
| 136587 | IIEES | THKV | E | 85 | 0.45 | 2018-09-09 15:43:13 | 2018-09-10 08:11:00 | n |
| 136588 | IIEES | SRSL | N | 31 | 0.48 | 2018-09-09 15:43:27 | 2018-09-10 08:11:00 | n |
| 136589 | IIEES | DAMV | N | 36.1 | 0.45 | 2018-09-09 15:43:37 | 2018-09-10 08:11:00 | n |
| 136590 | IIEES | DAMV | E | 34.2 | 0.41 | 2018-09-09 15:43:38 | 2018-09-10 08:11:00 | n |
| 136591 | IIEES | GHVR | N | 19.8 | 0.59 | 2018-09-09 15:43:51 | 2018-09-10 08:11:00 | n |
| 136592 | IIEES | GHVR | E | 18.1 | 0.42 | 2018-09-09 15:44:02 | 2018-09-10 08:11:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | ZNJK | Z | Pg | E | 2018-09-09 15:42:03 | -0.27 | y | 43.5 | 161 | |||
| IIEES | ZNJK | N | Sg | E | 2018-09-09 15:42:09 | -0.56 | y | 43.5 | 161 | |||
| IIEES | GIDE | Z | Pg | E | 2018-09-09 15:42:16 | -0.14 | y | 124 | 96 | |||
| IIEES | GRMI | Z | Pn | E | 2018-09-09 15:42:28 | -0.29 | y | 204 | 344 | |||
| IIEES | GRMI | N | Sg | E | 2018-09-09 15:42:53 | -0.02 | y | 204 | 344 | |||
| IIEES | SNGE | Z | Pn | E | 2018-09-09 15:42:34 | 1.22 | y | 241 | 207 | |||
| IIEES | THKV | Z | Pn | E | 2018-09-09 15:42:34 | 0.29 | y | 245 | 120 | |||
| IIEES | CHTH | Z | Pn | E | 2018-09-09 15:42:36 | 0.58 | y | 265 | 118 | |||
| IIEES | SRSL | Z | Pn | E | 2018-09-09 15:42:38 | -0.62 | y | 291 | 253 | |||
| IIEES | ASAO | Z | Pn | E | 2018-09-09 15:42:41 | 0.14 | y | 308 | 153 | |||
| IIEES | DAMV | Z | Pn | E | 2018-09-09 15:42:52 | 6.43 | n | 4 | 347 | 116 | ||
| IIEES | GHVR | Z | Pn | E | 2018-09-09 15:42:49 | -0.39 | y | 376 | 138 | |||
