Magnitude |
:3 |
| Date & Time (UTC) | 2018-09-09 17:09:25.5 |
| Date & Time (Local) | 1397/6/18 21:39:25.5 |

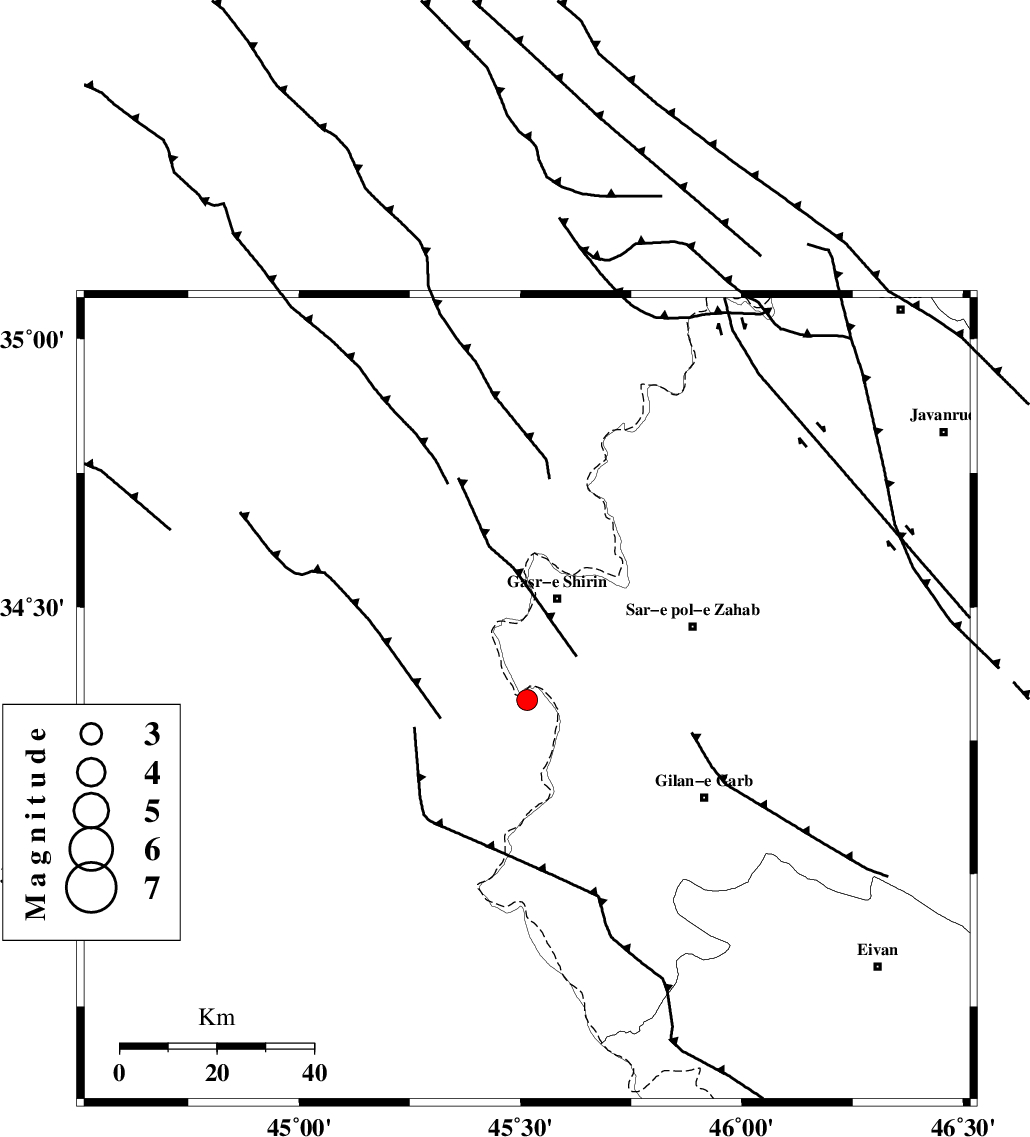

| Location | Lat:34.326 Lon: 45.515 |
| Region | Iraq, 22 km South of Qasr-E-Shirin |
Nearest Cities |
|
| 9 km of Khosravi, Kermanshah Province | |
| 15 km South of Seyyed sohrab, Kermanshah Province | |
| 22 km South of Qasr-E-Shirin, Kermanshah Province | |
| 28 km South West of Aqabarar, Kermanshah Province | |
| 30 km South West of Qareh belagh, Kermanshah Province | |
| Depth | 18 km |
| Agency | |
Faults within 150 km: |
|
| MFF8 (Length: 48 km) , Distance to epicenter: 36 km | |
| ZFF4 (Length: 128 km) , Distance to epicenter: 44 km | |
| MFF7 (Length: 99 km) , Distance to epicenter: 57 km | |
| Number of Phases | 10 |
| RMS | 0.2 |
| Number of Stations | 8 |
| Error in Latitude | >2.1 km |
| Error in Longitude | 3.6 km |
| Error in Depth | 4 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 136595 | IIEES | ILBA | N | 490.4 | 0.44 | 2018-09-09 17:10:02 | 2018-09-10 10:38:00 | n |
| 136596 | IIEES | ILBA | E | 405.4 | 0.36 | 2018-09-09 17:10:03 | 2018-09-10 10:38:00 | n |
| 136597 | IIEES | SNGE | N | 178.6 | 0.68 | 2018-09-09 17:10:25 | 2018-09-10 10:38:00 | n |
| 136598 | IIEES | SNGE | E | 107.2 | 0.54 | 2018-09-09 17:10:28 | 2018-09-10 10:38:00 | n |
| 136599 | IIEES | GHVR | N | 6.9 | 0.7 | 2018-09-09 17:12:12 | 2018-09-10 10:38:00 | n |
| 136600 | IIEES | GHVR | E | 7.8 | 0.7 | 2018-09-09 17:12:16 | 2018-09-10 10:38:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | ILBA | Z | Pg | E | 2018-09-09 17:09:42 | 0.11 | y | 101 | 140 | |||
| IIEES | SNGE | Z | Pg | E | 2018-09-09 17:09:56 | -0.38 | y | 188 | 63 | |||
| IIEES | SNGE | N | Sg | E | 2018-09-09 17:10:19 | 0.09 | y | 188 | 63 | |||
| IIEES | SRSL | Z | Pn | E | 2018-09-09 17:09:58 | -0.08 | y | 209 | 358 | |||
| IIEES | SRSL | N | Sg | E | 2018-09-09 17:10:25 | 0.18 | y | 209 | 358 | |||
| IIEES | ZNJK | Z | Pn | E | 2018-09-09 17:10:21 | -0.12 | y | 388 | 47 | |||
| IIEES | ASAO | Z | Pn | E | 2018-09-09 17:10:24 | 0.07 | y | 415 | 85 | |||
| IIEES | KHMZ | Z | Pn | E | 2018-09-09 17:10:24 | -0.15 | y | 416 | 98 | |||
| IIEES | GHVR | Z | Pn | E | 2018-09-09 17:10:38 | 0.5 | y | 527 | 87 | |||
| IIEES | GRMI | Z | Pn | E | 2018-09-09 17:10:39 | -0.13 | y | 541 | 22 | |||
