Magnitude |
:3.4 |
| Date & Time (UTC) | 2018-09-10 22:28:00.3 |
| Date & Time (Local) | 1397/6/20 02:58:00.3 |

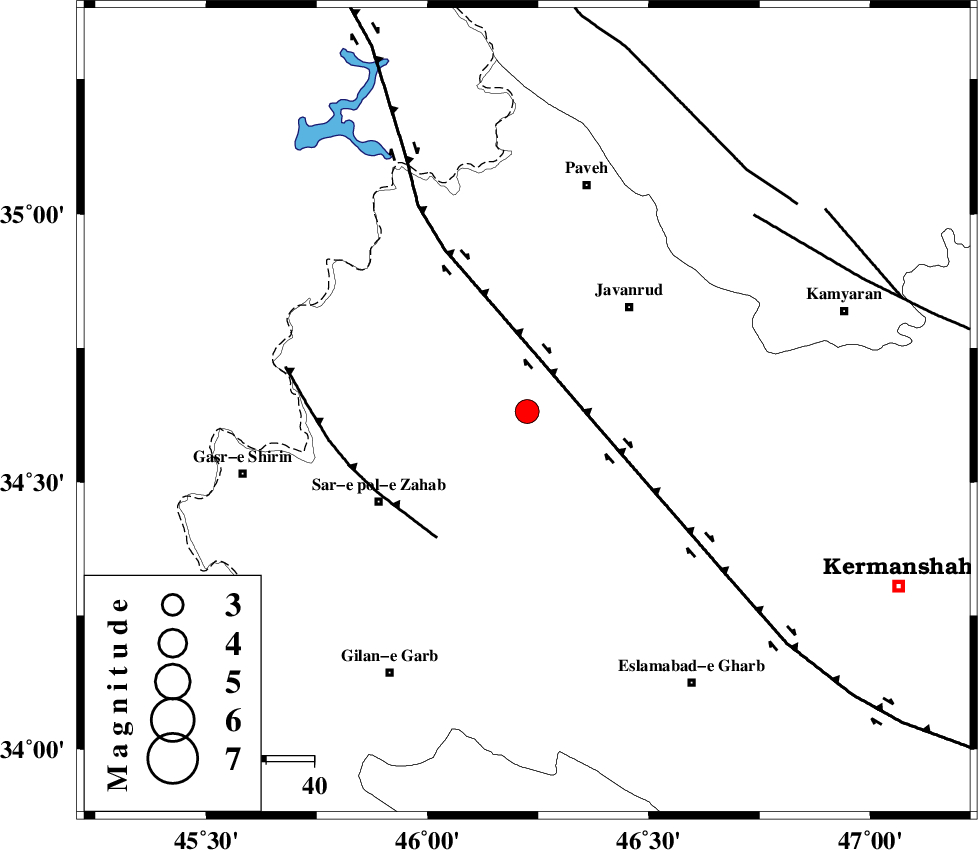

| Location | Lat:34.632 Lon: 46.225 |
| Region | Kermanshah Province, 30 km South-West of Javanrud |
Nearest Cities |
|
| 10 km of Mirabad, Kermanshah Province | |
| 12 km of Qolqoleh, Kermanshah Province | |
| 17 km North of Zavleh olia, Kermanshah Province | |
| 23 km West of Dolatabad, Kermanshah Province | |
| 24 km South of Shervineh, Kermanshah Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| HZF4 (Length: 492 km) , Distance to epicenter: 13 km | |
| MFF8 (Length: 48 km) , Distance to epicenter: 32 km | |
| SARTAKHT_F (Length: 78 km) , Distance to epicenter: 62 km | |
| Number of Phases | 11 |
| RMS | 0.5 |
| Number of Stations | 11 |
| Error in Latitude | >4.3 km |
| Error in Longitude | 7.3 km |
| Error in Depth | 8 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 136668 | IIEES | ILBA | E | 1234.3 | 0.42 | 2018-09-10 22:28:40 | 2018-09-11 10:31:00 | n |
| 136669 | IIEES | ILBA | N | 1033.8 | 0.36 | 2018-09-10 22:28:41 | 2018-09-11 10:31:00 | n |
| 136670 | IIEES | SNGE | N | 480.8 | 0.56 | 2018-09-10 22:28:39 | 2018-09-11 10:31:00 | n |
| 136671 | IIEES | SRSL | N | 301 | 0.36 | 2018-09-10 22:28:58 | 2018-09-11 10:31:00 | n |
| 136672 | IIEES | SRSL | E | 360.4 | 0.46 | 2018-09-10 22:29:00 | 2018-09-11 10:31:00 | n |
| 136673 | IIEES | GIDE | N | 80.3 | 0.88 | 2018-09-10 22:30:08 | 2018-09-11 10:31:00 | n |
| 136674 | IIEES | GIDE | E | 24.8 | 0.69 | 2018-09-10 22:30:14 | 2018-09-11 10:31:00 | n |
| 136675 | IIEES | GHVR | E | 37.8 | 0.67 | 2018-09-10 22:30:23 | 2018-09-11 10:31:00 | n |
| 136676 | IIEES | GHVR | N | 46.1 | 0.86 | 2018-09-10 22:30:30 | 2018-09-11 10:31:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | ILBA | Z | Pg | E | 2018-09-10 22:28:18 | -0.26 | y | 112 | 181 | |||
| IIEES | SNGE | Z | Pg | E | 2018-09-10 22:28:19 | -0.67 | y | 115 | 63 | |||
| IIEES | SRSL | Z | Pg | E | 2018-09-10 22:28:31 | -0.5 | y | 189 | 338 | |||
| IIEES | ZNJK | Z | Pn | E | 2018-09-10 22:28:47 | 0.13 | y | 317 | 44 | |||
| IIEES | ASAO | Z | Pn | E | 2018-09-10 22:28:51 | 0.54 | y | 349 | 90 | |||
| IIEES | KHMZ | Z | Pn | E | 2018-09-10 22:28:52 | 0.38 | y | 359 | 105 | |||
| IIEES | GIDE | Z | Pn | E | 2018-09-10 22:29:00 | -0.06 | y | 419 | 52 | |||
| IIEES | GHVR | Z | Pn | E | 2018-09-10 22:29:05 | -0.08 | y | 461 | 91 | |||
| IIEES | CHTH | Z | Pn | E | 2018-09-10 22:29:06 | 0.12 | y | 468 | 71 | |||
| IIEES | DAMV | Z | Pn | E | 2018-09-10 22:29:14 | -0.24 | y | 535 | 76 | |||
| IIEES | MAKU | Z | Pn | E | 2018-09-10 22:29:16 | 1.14 | y | 542 | 346 | |||
