Magnitude |
:2 |
| Date & Time (UTC) | 2018-09-30 01:01:21.7 |
| Date & Time (Local) | 1397/7/8 04:31:21.7 |

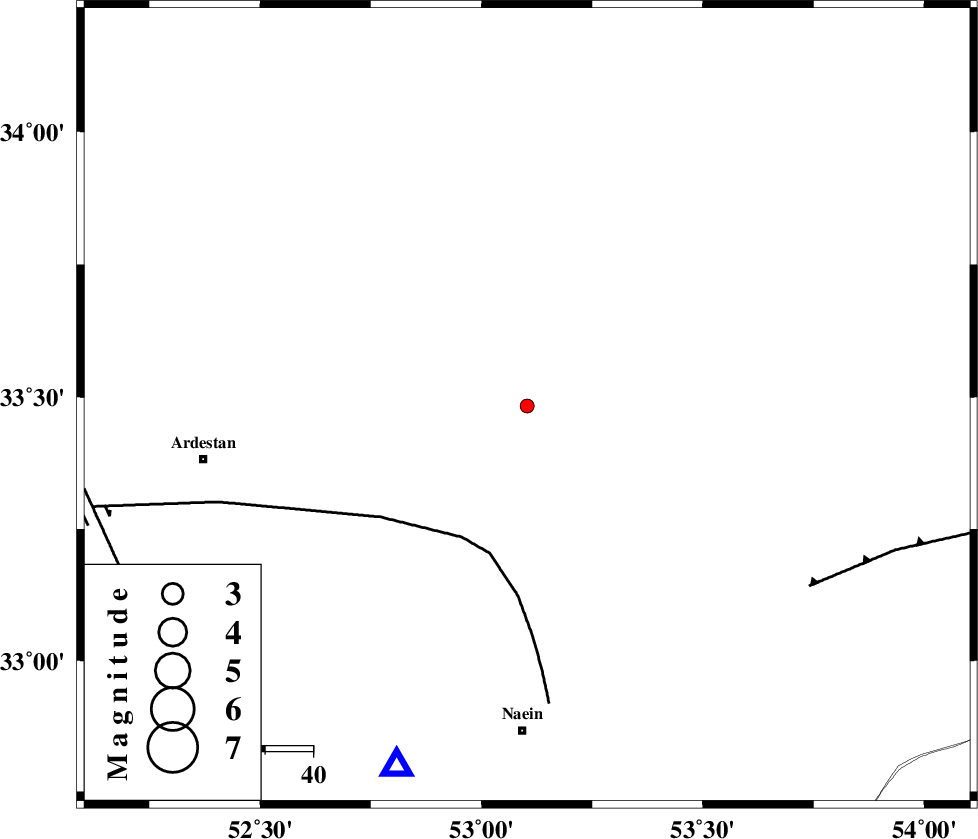

| Location | Lat:33.483 Lon: 53.103 |
| Region | Esfahan Province, 69 km North of Nain |
Nearest Cities |
|
| 30 km South West of Maedan, Esfahan Province | |
| 32 km North East of Shahrab, Esfahan Province | |
| 42 km North East of Jahanabad, Esfahan Province | |
| 57 km North East of Zavareh, Esfahan Province | |
| 58 km North West of Anarak, Esfahan Province | |
| Depth | 18 km |
| Agency | |
Faults within 150 km: |
|
| CHAH_ZANGUL_F (Length: 123 km) , Distance to epicenter: 31 km | |
| BIABANAK_F (Length: 162 km) , Distance to epicenter: 70 km | |
| SHAHR_E_BABAK_F1 (Length: 392 km) , Distance to epicenter: 89 km | |
| Number of Phases | 6 |
| RMS | 0.2 |
| Number of Stations | 3 |
| Error in Latitude | >2.6 km |
| Error in Longitude | 2.6 km |
| Error in Depth | 7.4 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 137232 | IIEES | NASN | E | 64.6 | 0.25 | 2018-09-30 01:01:46 | 2018-09-30 09:37:00 | n |
| 137233 | IIEES | GHVR | E | 16.3 | 0.31 | 2018-09-30 01:02:21 | 2018-09-30 09:37:00 | n |
| 137234 | IIEES | GHVR | N | 11.9 | 0.46 | 2018-09-30 01:02:22 | 2018-09-30 09:37:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | NASN | Z | Pg | E | 2018-09-30 01:01:35 | 0.16 | y | 80.7 | 200 | |||
| IIEES | NASN | N | Sg | E | 2018-09-30 01:01:46 | -0.07 | y | 80.7 | 200 | |||
| IIEES | YZKH | Z | Pg | E | 2018-09-30 01:01:52 | 0.37 | y | 185 | 131 | |||
| IIEES | YZKH | N | Sg | E | 2018-09-30 01:02:14 | -0.33 | y | 185 | 131 | |||
| IIEES | GHVR | Z | Pn | E | 2018-09-30 01:01:54 | -0.01 | y | 204 | 303 | |||
| IIEES | GHVR | N | Sg | E | 2018-09-30 01:02:19 | -0.11 | y | 204 | 303 | |||
