Magnitude |
:3.5 |
| Date & Time (UTC) | 2018-10-03 09:30:26.7 |
| Date & Time (Local) | 1397/7/11 13:00:26.7 |

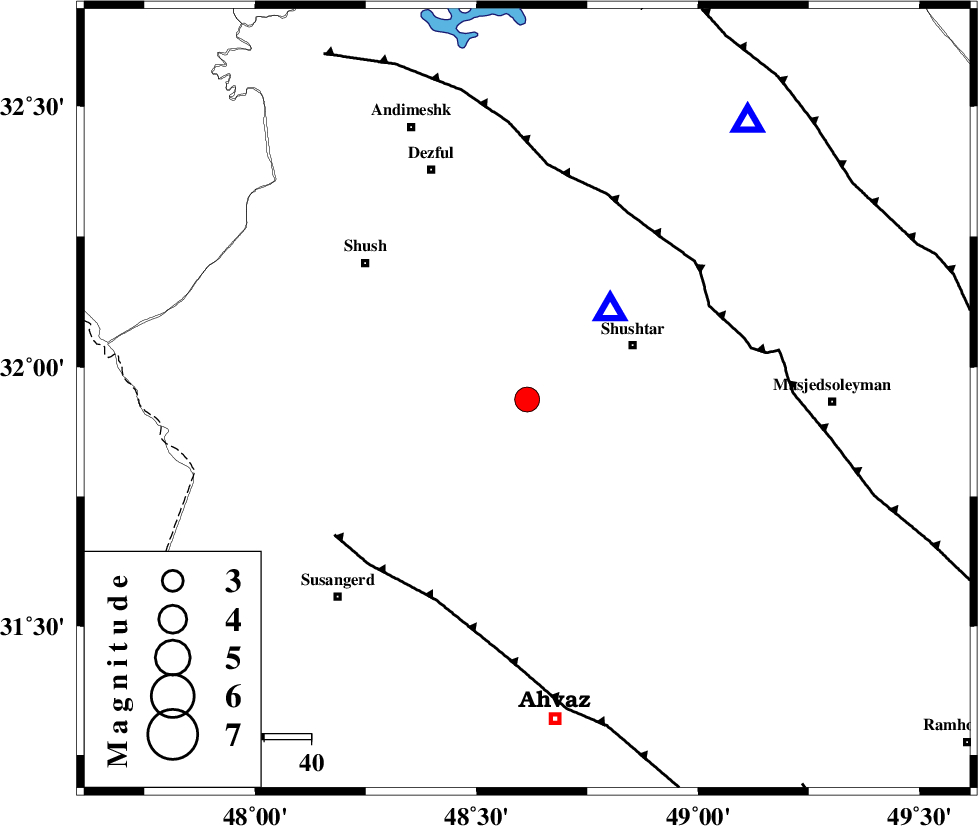

| Location | Lat:31.937 Lon: 48.614 |
| Region | Khoozestan Province, 25 km South-West of Shushtar |
Nearest Cities |
|
| 19 km West of Sardarabad, Khoozestan Province | |
| 22 km West of Mehdiabad, Khoozestan Province | |
| 25 km North East of Abdolkhan-eali, Khoozestan Province | |
| 25 km South West of Shushtar, Khoozestan Province | |
| 29 km North West of Arabhasan, Khoozestan Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| DEZFUL_EMBAYMENT (Length: 228 km) , Distance to epicenter: 44 km | |
| AHVAZ_F (Length: 99 km) , Distance to epicenter: 47 km | |
| MFF2 (Length: 205 km) , Distance to epicenter: 83 km | |
| Number of Phases | 12 |
| RMS | 0.5 |
| Number of Stations | 12 |
| Error in Latitude | >4.9 km |
| Error in Longitude | 3.2 km |
| Error in Depth | 0 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 137434 | IIEES | ILBA | N | 161.3 | 0.62 | 2018-10-03 09:31:59 | 2018-10-03 11:23:00 | n |
| 137435 | IIEES | ILBA | E | 141.6 | 0.92 | 2018-10-03 09:32:06 | 2018-10-03 11:23:00 | n |
| 137436 | IIEES | ASAO | N | 65.7 | 0.62 | 2018-10-03 09:32:00 | 2018-10-03 11:23:00 | n |
| 137437 | IIEES | GHVR | E | 41.8 | 0.53 | 2018-10-03 09:32:20 | 2018-10-03 11:23:00 | n |
| 137438 | IIEES | AHRM | N | 102.8 | 0.5 | 2018-10-03 09:32:31 | 2018-10-03 11:23:00 | n |
| 137439 | IIEES | AHRM | E | 111.4 | 0.56 | 2018-10-03 09:32:38 | 2018-10-03 11:23:00 | n |
| 137440 | IIEES | GHIR | N | 16.4 | 0.43 | 2018-10-03 09:33:30 | 2018-10-03 11:23:00 | n |
| 137441 | IIEES | GHIR | E | 19.4 | 0.72 | 2018-10-03 09:33:37 | 2018-10-03 11:23:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | KHMZ | Z | Pn | E | 2018-10-03 09:31:03 | 0.06 | y | 237 | 32 | |||
| IIEES | ILBA | Z | Pn | E | 2018-10-03 09:31:10 | -0.13 | y | 293 | 310 | |||
| IIEES | ASAO | Z | Pn | E | 2018-10-03 09:31:14 | 0.7 | y | 318 | 24 | |||
| IIEES | SNGE | Z | Pn | E | 2018-10-03 09:31:20 | 0.27 | y | 369 | 342 | |||
| IIEES | GHVR | Z | Pn | E | 2018-10-03 09:31:21 | 0.61 | y | 374 | 40 | |||
| IIEES | NASN | Z | Pn | E | 2018-10-03 09:31:24 | -0.55 | y | 406 | 75 | |||
| IIEES | AHRM | Z | Pn | E | 2018-10-03 09:31:27 | 0 | y | 427 | 142 | |||
| IIEES | DAMV | Z | Pn | E | 2018-10-03 09:31:38 | -0.29 | y | 514 | 36 | |||
| IIEES | ZNJK | Z | Pn | E | 2018-10-03 09:31:38 | -0.82 | y | 525 | 1 | |||
| IIEES | SRSL | Z | Pn | E | 2018-10-03 09:31:43 | -0.14 | y | 558 | 329 | |||
| IIEES | YZKH | Z | Pn | E | 2018-10-03 09:31:44 | -0.69 | y | 566 | 83 | |||
| IIEES | GHIR | Z | Pn | E | 2018-10-03 09:31:47 | 0.6 | y | 584 | 133 | |||
