Magnitude |
:3.4 |
| Date & Time (UTC) | 2018-10-04 21:26:05.5 |
| Date & Time (Local) | 1397/7/13 00:56:05.5 |

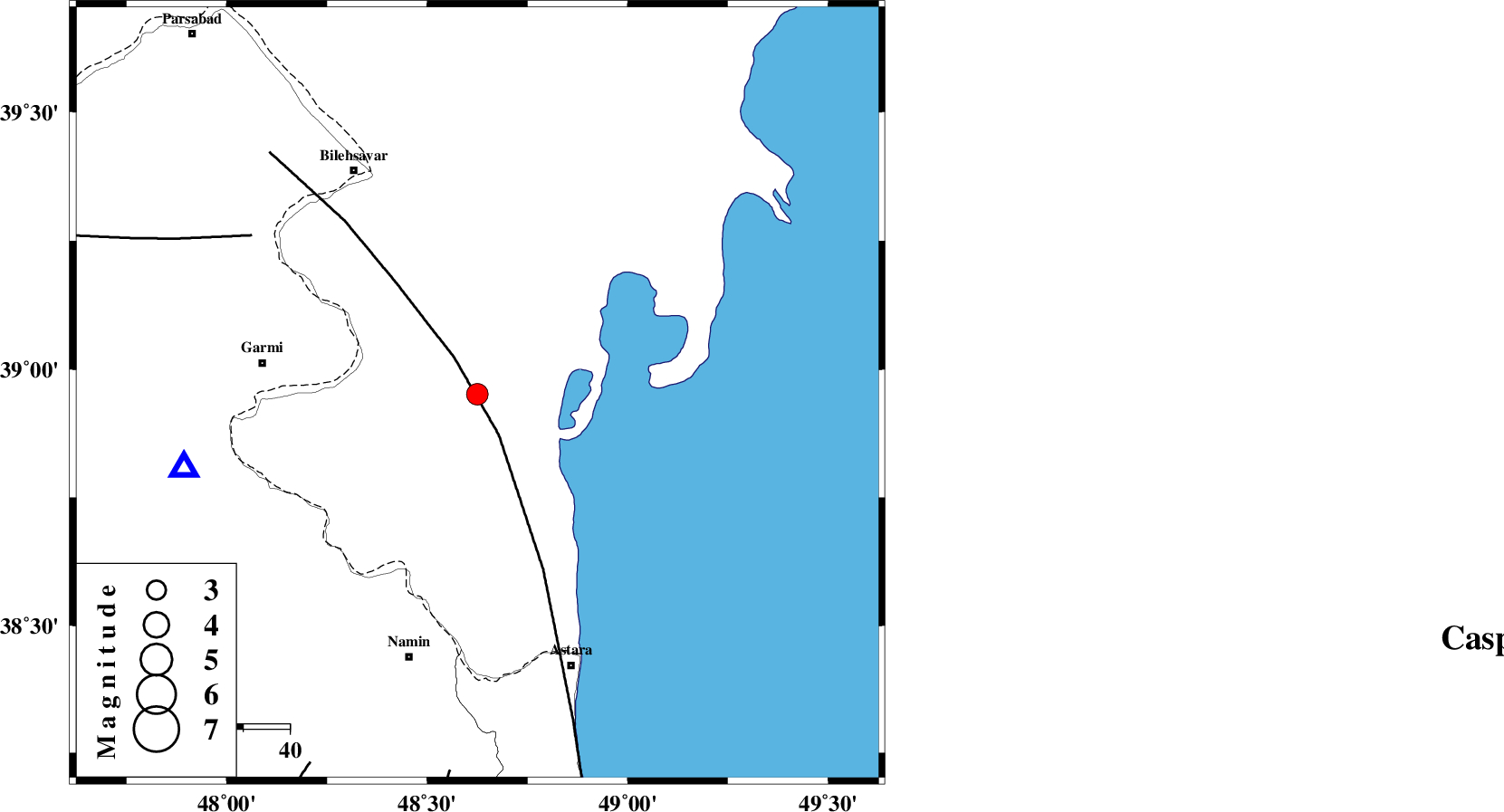

| Location | Lat:38.952 Lon: 48.625 |
| Region | Azerbaijan, 47 km -East of Germi |
Nearest Cities |
|
| 32 km South East of Hasan khanlu, Ardebil Province | |
| 43 km South East of Seyyedzahra, Ardebil Province | |
| 47 km East of Germi, Ardebil Province | |
| 49 km North East of Lurun, Ardebil Province | |
| 49 km East of Qasem kandi, Ardebil Province | |
| Depth | 26 km |
| Agency | |
Faults within 150 km: |
|
| TALESH_F (Length: 258 km) , Distance to epicenter: 9 km | |
| DASHT_E_MOGHAN__ (Length: 104 km) , Distance to epicenter: 59 km | |
| SANGAVAR_F (Length: 61 km) , Distance to epicenter: 82 km | |
| Number of Phases | 9 |
| RMS | 0.4 |
| Number of Stations | 6 |
| Error in Latitude | >7.8 km |
| Error in Longitude | 9.3 km |
| Error in Depth | 9.2 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 137537 | IIEES | GRMI | E | 1658 | 0.12 | 2018-10-04 21:26:26 | 2018-10-06 11:41:00 | n |
| 137538 | IIEES | GRMI | N | 2152 | 0.16 | 2018-10-04 21:26:26 | 2018-10-06 11:41:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | GRMI | Z | Pg | E | 2018-10-04 21:26:17 | 0.59 | y | 65.4 | 256 | |||
| IIEES | GRMI | N | Sg | E | 2018-10-04 21:26:25 | -0.16 | y | 65.4 | 256 | |||
| IIEES | GIDE | Z | Pn | E | 2018-10-04 21:26:42 | -0.54 | y | 252 | 153 | |||
| IIEES | ZNJK | Z | Pn | E | 2018-10-04 21:26:43 | 0.21 | y | 253 | 179 | |||
| IIEES | ZNJK | N | S | E | 2018-10-04 21:27:11 | 0.01 | y | 253 | 179 | |||
| IIEES | MAKU | Z | Pn | E | 2018-10-04 21:26:55 | 0.29 | y | 344 | 279 | |||
| IIEES | MAKU | N | Sg | E | 2018-10-04 21:27:39 | -0.61 | y | 344 | 279 | |||
| IIEES | SRSL | Z | Pn | E | 2018-10-04 21:27:04 | 0.64 | y | 414 | 224 | |||
| IIEES | SNGE | Z | Pn | E | 2018-10-04 21:27:06 | -0.45 | y | 443 | 195 | |||
