Magnitude |
:3.7 |
| Date & Time (UTC) | 2018-10-07 14:25:26.0 |
| Date & Time (Local) | 1397/7/15 17:55:26.0 |
| Location | Lat:31.486 Lon: 49.904 |
| Region | Khoozestan Province, 3 km of Bagh Malek |
Nearest Cities |
|
| 3 km of Bagh Malek, Khoozestan Province | |
| 10 km of Abolabbas, Khoozestan Province | |
| 16 km South of Ghaleh tal, Khoozestan Province | |
| 18 km North of Dalan, Khoozestan Province | |
| 19 km North East of Midavood-e sofla, Khoozestan Province | |
| Depth | 17 km |
| Agency | |

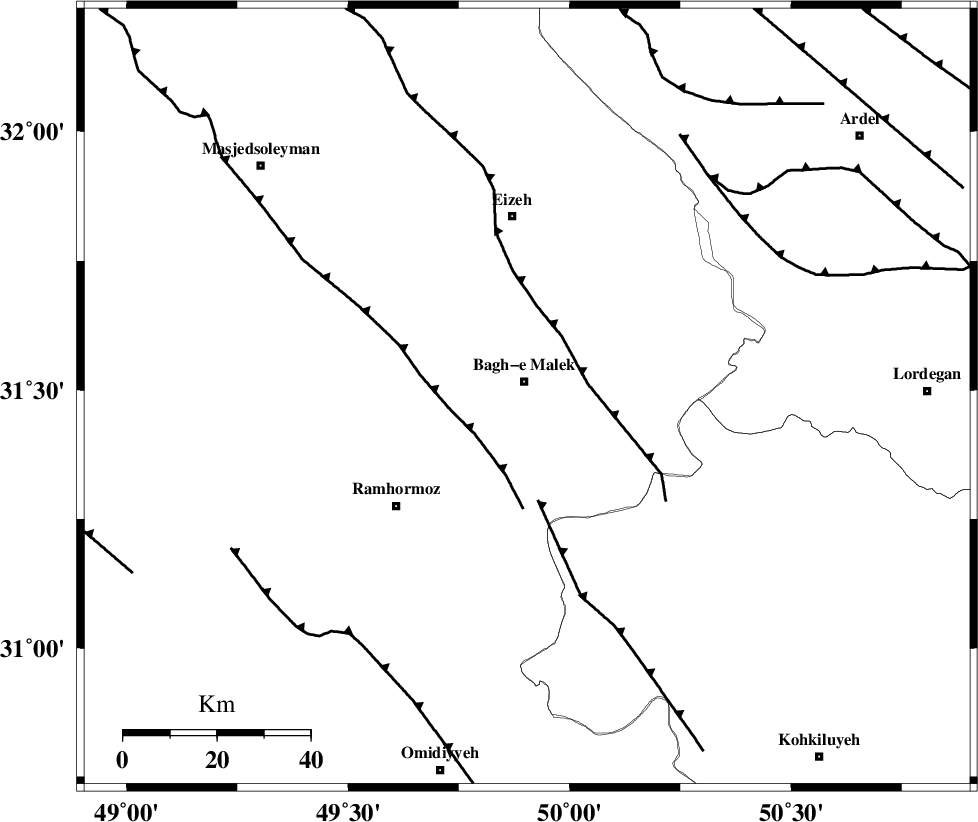

Faults within 150 km: |
|
| MFF2 (Length: 205 km) , Distance to epicenter: 13 km | |
| DEZFUL_EMBAYMENT (Length: 228 km) , Distance to epicenter: 14 km | |
| MFF4 (Length: 62 km) , Distance to epicenter: 22 km | |
| Number of Phases | 19 |
| RMS | 0.5 |
| Number of Stations | 19 |
| Error in Latitude | >3.9 km |
| Error in Longitude | 2.8 km |
| Error in Depth | 0 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 137570 | IIEES | KHMZ | E | 244.4 | 0.72 | 2018-10-07 14:26:47 | 2018-10-08 05:47:00 | n |
| 137571 | IIEES | AHRM | E | 129.4 | 0.49 | 2018-10-07 14:27:09 | 2018-10-08 05:47:00 | n |
| 137572 | IIEES | AHRM | N | 156.3 | 0.55 | 2018-10-07 14:27:15 | 2018-10-08 05:47:00 | n |
| 137573 | IIEES | ASAO | N | 100.8 | 0.66 | 2018-10-07 14:27:04 | 2018-10-08 05:47:00 | n |
| 137574 | IIEES | ASAO | E | 139.6 | 0.81 | 2018-10-07 14:27:15 | 2018-10-08 05:47:00 | n |
| 137575 | IIEES | GHVR | N | 92.4 | 0.68 | 2018-10-07 14:27:18 | 2018-10-08 05:47:00 | n |
| 137576 | IIEES | ILBA | E | 211.7 | 0.6 | 2018-10-07 14:27:32 | 2018-10-08 05:47:00 | n |
| 137577 | IIEES | ILBA | N | 245.5 | 0.6 | 2018-10-07 14:27:41 | 2018-10-08 05:47:00 | n |
| 137578 | IIEES | GHIR | N | 120.2 | 0.92 | 2018-10-07 14:27:52 | 2018-10-08 05:47:00 | n |
| 137579 | IIEES | SNGE | E | 47.7 | 0.48 | 2018-10-07 14:27:39 | 2018-10-08 05:47:00 | n |
| 137580 | IIEES | SNGE | N | 60.9 | 0.58 | 2018-10-07 14:27:43 | 2018-10-08 05:47:00 | n |
| 137581 | IIEES | DAMV | N | 32.9 | 0.59 | 2018-10-07 14:27:53 | 2018-10-08 05:47:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | KHMZ | Z | Pn | E | 2018-10-07 14:26:05 | 0.6 | y | 250 | 1 | |||
| IIEES | NASN | Z | Pn | E | 2018-10-07 14:26:12 | -0.14 | y | 310 | 61 | |||
| IIEES | AHRM | Z | Pn | E | 2018-10-07 14:26:13 | 0.77 | y | 320 | 155 | |||
| IIEES | ASAO | Z | Pn | E | 2018-10-07 14:26:16 | 0.47 | y | 340 | 2 | |||
| IIEES | GHVR | Z | Pn | E | 2018-10-07 14:26:18 | 0.83 | y | 355 | 20 | |||
| IIEES | ILBA | Z | Pn | E | 2018-10-07 14:26:25 | -0.48 | y | 420 | 305 | |||
| IIEES | YZKH | Z | Pn | E | 2018-10-07 14:26:30 | 0.04 | y | 454 | 76 | |||
| IIEES | GHIR | Z | Pn | E | 2018-10-07 14:26:30 | -0.5 | y | 463 | 139 | |||
| IIEES | SNGE | Z | Pn | E | 2018-10-07 14:26:31 | -0.37 | y | 466 | 330 | |||
| IIEES | DAMV | Z | Pn | E | 2018-10-07 14:26:34 | -0.59 | y | 498 | 22 | |||
| IIEES | THKV | Z | Pn | E | 2018-10-07 14:26:35 | -0.08 | y | 500 | 10 | |||
| IIEES | CHTH | Z | Pn | E | 2018-10-07 14:26:35 | -0.43 | y | 503 | 13 | |||
| IIEES | ZNJK | Z | Pn | E | 2018-10-07 14:26:46 | 0.38 | y | 586 | 349 | |||
| IIEES | SRSL | Z | Pn | E | 2018-10-07 14:26:56 | -0.36 | y | 668 | 323 | |||
| IIEES | KRBR | Z | Pn | E | 2018-10-07 14:26:58 | 0.35 | y | 677 | 102 | |||
| IIEES | TABS | Z | Pn | E | 2018-10-07 14:27:02 | -0.53 | y | 719 | 69 | |||
| IIEES | SHRO | Z | Pn | E | 2018-10-07 14:27:06 | -0.55 | y | 756 | 47 | |||
| IIEES | BNDS | Z | Pn | E | 2018-10-07 14:27:07 | -0.45 | y | 758 | 125 | |||
| IIEES | BSRN | Z | Pn | E | 2018-10-07 14:27:21 | -0.6 | y | 875 | 84 | |||
