Magnitude |
:2.5 |
| Date & Time (UTC) | 2018-10-09 21:36:19.7 |
| Date & Time (Local) | 1397/7/18 01:06:19.7 |

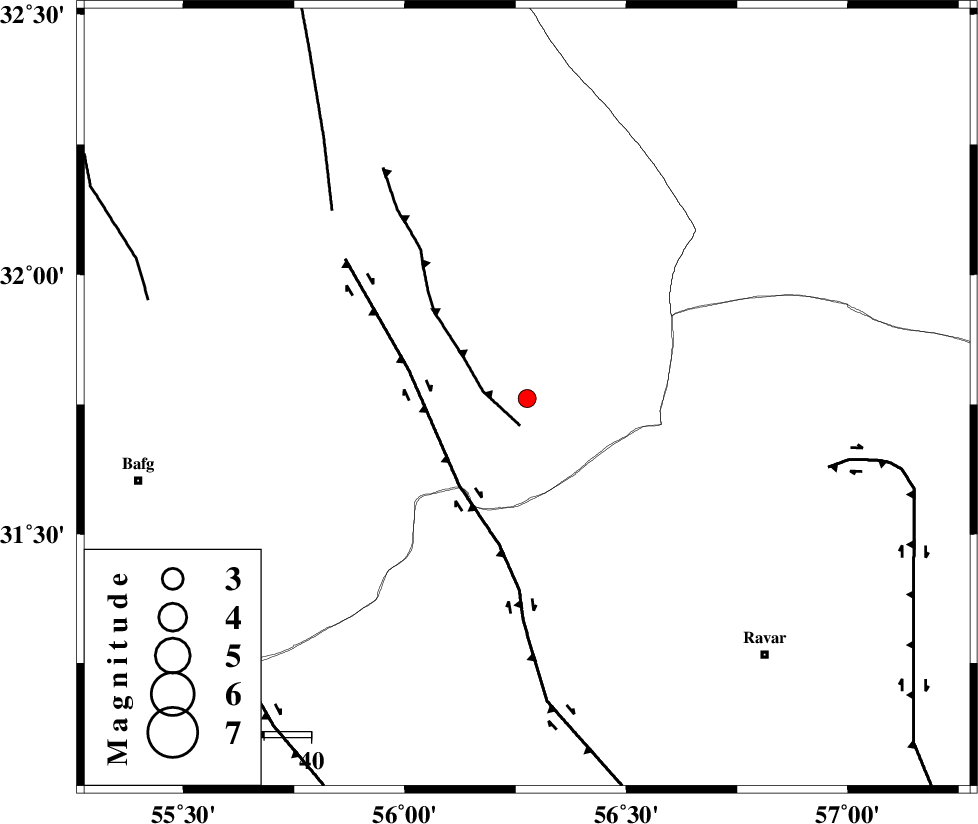

| Location | Lat:31.762 Lon: 56.276 |
| Region | Yazd Province, 75 km North-West of Ravar |
Nearest Cities |
|
| 11 km North of Asfih, Yazd Province | |
| 19 km North East of Benestan, Yazd Province | |
| 26 km South East of Behabad, Yazd Province | |
| 38 km North of Kuhbanan, Kerman Province | |
| 42 km North East of Basab, Yazd Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| JAFARABAD_F (Length: 60 km) , Distance to epicenter: 6 km | |
| KUHBANAN_F (Length: 189 km) , Distance to epicenter: 24 km | |
| SARBALA_F (Length: 92 km) , Distance to epicenter: 58 km | |
| Number of Phases | 7 |
| RMS | 0.2 |
| Number of Stations | 5 |
| Error in Latitude | >2.4 km |
| Error in Longitude | 3.5 km |
| Error in Depth | 6.6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 137678 | IIEES | KRBR | N | 32.8 | 0.28 | 2018-10-09 21:37:20 | 2018-10-10 10:30:00 | n |
| 137679 | IIEES | KRBR | E | 50.2 | 0.33 | 2018-10-09 21:37:24 | 2018-10-10 10:30:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | YZKH | Z | Pg | E | 2018-10-09 21:36:48 | 0.02 | y | 174 | 294 | |||
| IIEES | YZKH | N | Sg | E | 2018-10-09 21:37:09 | -0.18 | y | 174 | 294 | |||
| IIEES | KRBR | Z | Pn | E | 2018-10-09 21:36:52 | -0.09 | y | 203 | 167 | |||
| IIEES | KRBR | N | Sg | E | 2018-10-09 21:37:17 | 0.11 | y | 203 | 167 | |||
| IIEES | TABS | Z | Pn | E | 2018-10-09 21:36:55 | 0.3 | y | 224 | 20 | |||
| IIEES | BSRN | Z | Pn | E | 2018-10-09 21:37:00 | -0.34 | y | 271 | 84 | |||
| IIEES | NASN | Z | Pn | E | 2018-10-09 21:37:10 | 0.2 | y | 346 | 290 | |||
